Axis Communications 39680 TV Cables User Manual



1
2
7
8
5
4
3
6
1
2
7
8
5
4
3
6
1
2
7
8
5
4
3
6
14 - 16 mm
24 - 26 mm
1
2
3
4
5
6 9
7
8
Ø7.5 - 8.6mm
Ø6.1 - 7.5mm
Ø4.9 - 6.1mm

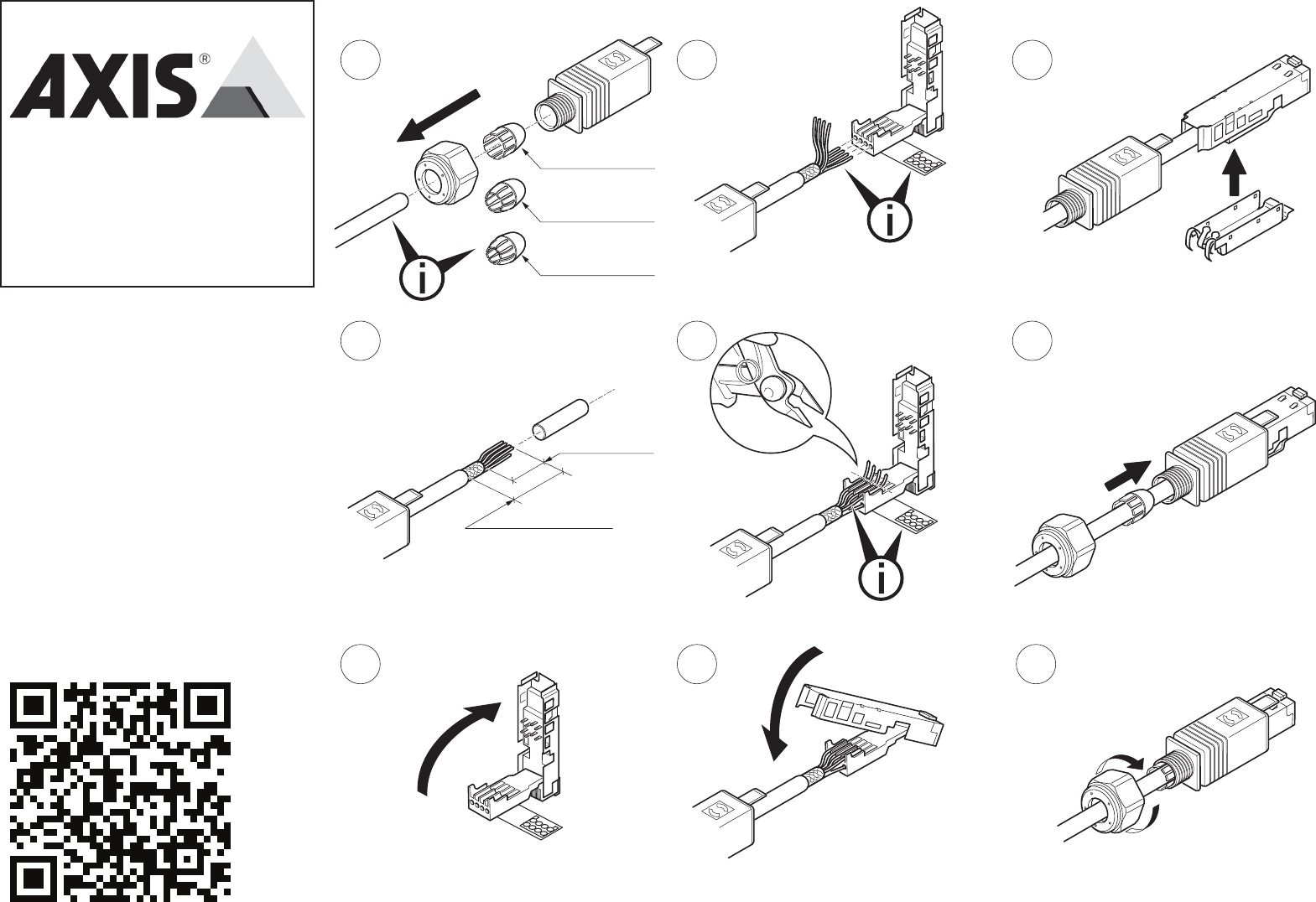

RJ45 PushPull Connector
Installation Guide
Part. No. 39680
www.axis.com
Technical specications
CAT6/Preformance class E
A
suitable for 1/10 Gigabit Ethernet
Termination: IDC, tool-less
eld-assembly
Protection level: IP66
Mating face: RJ45
acc. IEC 60603-7
Wire gauge data: AWG 27-22
stranded/solid
Wire insulation: max. 1.5mm
Temperature range: -40 ºC to +70 ºC
Mating cycles: min. 750
Housing material: Thermoplastic, black
Cable diameter: 4.9-8.6mm
Version 1.1 Printed: January, 2013
