54
MAX675VDII
English
Owner’s manual
Satellite Radio Operations
This function is available when a Satellite Radio
Receiver is connected through the CeNET cable.
This unit can control the following satellite radio
receivers:
XM Satellite Radio Receiver: XMD1000
XM Smart Digital Adapter: XM SDA
SIRIUS Satellite Radio Receiver: SIRCL2,
SIRCL3
Note:
When the function is differ depending to the
connected receiver, they are distinguished by the
following notations:
“XM”: for an XM Satellite Radio Receiver
“SIRIUS”: for a SIRIUS Satellite Radio Receiver
Selecting a Satellite Radio mode
1. Press the [SRC] button, and touch the
[SIRIUS] or [XM] key.
The system changes to the specified Satellite
Radio mode.
Selecting a band
1. Press the [BAND] button or touch the [Band]
key to select a band.
This changes the reception band as follows:
•XM: XM1 XM2 XM3 XM1 ...
SIRIUS: SR1 SR2 SR3 SR1 ...
Information displayed during reception
The following information is displayed when the
satellite radio cannot be received normally.
When the receiver is turned on the first time or
after a reset: “UPDATING
When a channel is being tuned in (no signal is
yet received):
XM; “LOADING”, SIRIUS; “ACQUIRING
A channel without a broadcast has been
selected:
XM; “– – – CH”, SIRIUS; “INVALID CHANNEL
A channel not covered by your contract:
XM; “UPDATING”, SIRIUS; “CALL 888l
539 SIRI” (alternated)
When a channel is out of air time: “OFF AIR
Confirming your Radio ID
XM
1. Touch the [Search] key to display the Key
Pad screen.
2. Touch the [0] key, then touch the [ENT] key.
Your Radio ID (8-digits number) will be
displayed.
3. To return to the previous screen, touch the
[Back] key.
SIRIUS
1. Touch the [Option] key to display the Option
screen.
Your SIRIUS ID (12-digits number) will be
displayed.
2. To return to the previous screen, touch the
[Back] key.

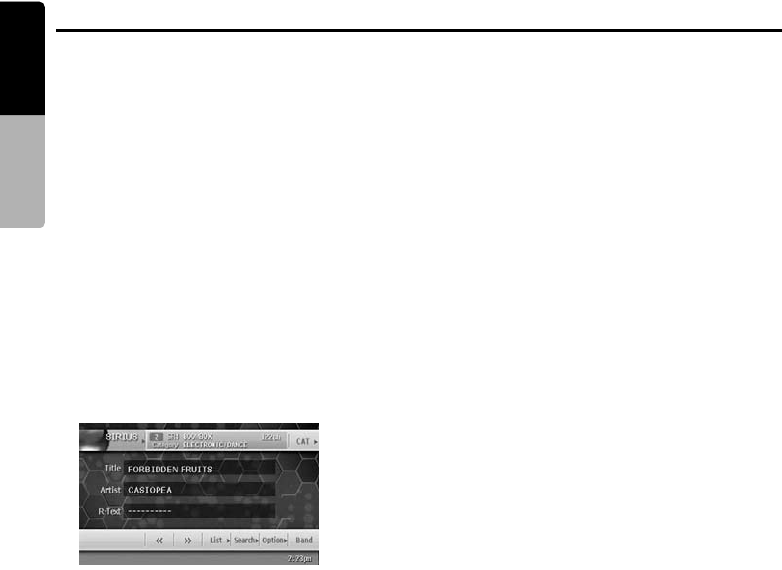

Displaying channel labels
1. Touch the [Title] key.
Category, CH.Name, Title, Artist and R-Text
are displayed.
2. Touch the [X] key of desired item.
The label of specified item will scroll once.
Displaying radio text
* Radio text is only displayed for stations that
transmit such information.
Received radio text is displayed in the Main
menu and the Title screen labeled as “R-Text”.
You can scroll the radio text in the Title screen.
1. Touch the [Title] key.
2. Touch the [X] key of the “R-Text” item.
The received radio text will scroll once.
Channel selection
Channels are selected with the [R] or [F]
button.
* For details, see the following operation
descriptions.
Note:
The audio output is muted and other button
operations are not accepted during channel
selection.
