Connecting a DVD or Blu-ray player, cable box,
satellite receiver, or game station
Using HDMI (best)
Using component cables (better)
Using composite cables (good)
Connecting an antenna/cable wall jack
Connecting a Home Theater System
Using digital audio
Front features
Installing the stand
1 Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 Align the stand with the column and twist the stand in the direction of the arrow
until you hear it snap into place.
Installing a wall-mount bracket
1 Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 Press the PUSH button, then rotate the stand to remove it.
3 Remove the six screws that secure the stand column, then remove the column.
4 Attach the wall-mount bracket to your TV using the mounting holes on the back
of your TV. See the instructions that came with the wall-mount bracket for
information about how to correctly hang your TV.
Antenna or
cable TV
(no box)
Blu-ray player/DVD player/VCR
Cable or satellite TV box
AV receiver
Game console
or camera
Computer
Connecting a home theater system with multiple devices
We recommend that you connect
the AV receiver’s HDMI OUT jack to
your TV’s HDMI IN (ARC) jack.
In the following situations, the
HDMI cable routes Dolby Digital
audio to the AV receiver, so you do
not need to connect a separate
digital audio cable:
• Have a game console connected
to one of your TV’s HDMI IN
jacks.
• When you watch a program
through an antenna or cable TV
connected to the ANT IN jack.
This apparatus is intended to be supported by a UL Listed wall mount bracket.
Warning
Composite video
and analog audio
Connection type
Video quality
Cable connector
HDMI video/audio
Best
Component video
and analog audio
Better
Good
OR
OR
Remote control and
two AAA batteries
AV cable
TV stand
24" LCD TV 1080p

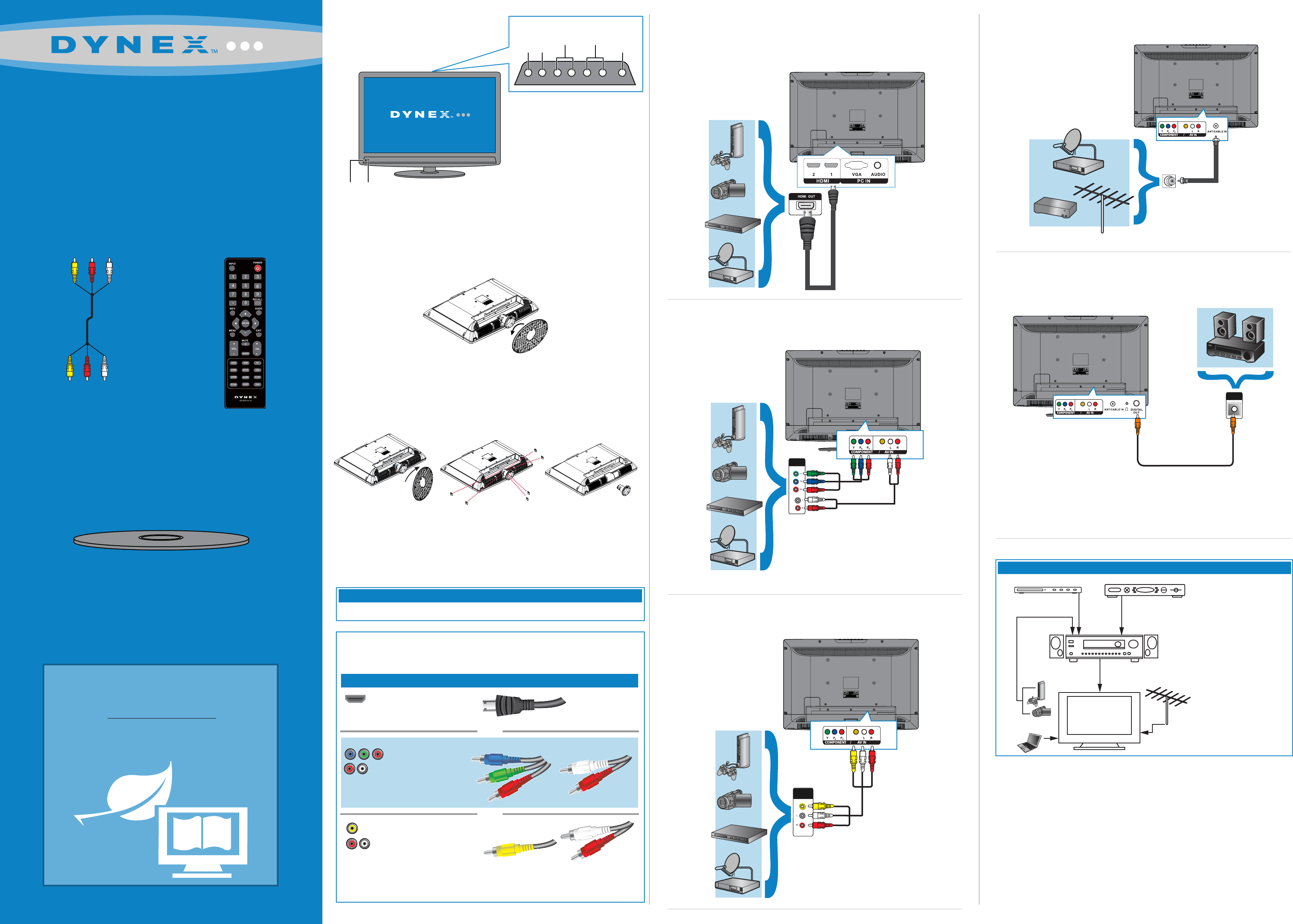

QUICK SETUP GUIDE
DX-24L200A12
You can use an HDMI jack to connect a DVI device to your TV. You need to attach an
HDMI 1-to-DVI adapter to the end of the HDMI cable that connects to the DVI device’s jack.
Identifying cables
Your TV has several connection types for connecting devices. For the best video quality, connect
a device to the best available connection.
Channel
▼/▲
Input
Power
button
Menu
CH▼
CH▲ POWERINPUT MENU VOL- VOL+
Volume
- /+
Remote
control
sensor
Power
indicator
AUDIO/VIDEO
OUT
VIDEO
AUDIO/VIDEO
OUT
VIDEO
OUT
IN
AN
T
E
NN
A
VIDEO
DIGITAL
AUDIO IN
VIDEO
