Dynex DX-32L100A11 Flat Panel Television User Manual


  Open as PDF
of 2

Connecting a DVD or Blu-ray DVD player, cable
box, satellite receiver or game station
Using HDMI (best)
Using component (better)
Connecting an antenna
Connect a 75 ohm cable (not included) to ANT/CABLE IN jack on the back of
your TV and the RF OUT jack on the antenna.
Connecting a home theater system
Using analog audio cable:
Note: Cable connectors and jacks are often color-coded. Match the colors when
you connect the AV cable.
Using digital audio cable:
Note: The DIGITAL OUTPUT jack only works with digital TV channels.
Connecting power
Connect the power cable to the AC IN jack on the back of the TV, then connect
the other end to a power outlet.
Remote control
sensor
Power
indicator
Philips
PHDVD5, PH5DSS,
PMDVR8, PDVR8
115
DirectTV
RC23
10463
RCA
RCU807
135
One for All
URC-6690
0464
Sony
RM-VL600
8043
Comcast
M1057
0463
Dish Network
VIP508, VIP622
720
Motorola
DRC800
0463
TIVO
Series 3, HD
0091
Universal remote control makers and models Set-top box makers and models
Universal remote control TV codes (for all Dynex TVs manufactured after Jan. 1, 2007)
Front and side features
Installing the stand
1 Remove the stand from the box and place it on a table or bench.
2 Lay the TV at (screen down) on a at, cushioned surface.
3 Align the stand with the TV, as shown.
4 Secure the stand to the column with the screws provided
Installing a wall-mount bracket
1 Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 Remove the four screws holding the TV to its stand column, then remove the
stand column.
3 Secure the wall-mount bracket (not included) to the back of your TV using the
four M6 screws provided with the bracket.
Setting up your remote control
1 While pressing the release button on the battery compartment cover on the
back of the remote, lift the cover o the remote.
2 Insert two AAA batteries into the battery compartment. Make sure that the +
and – symbols on the batteries align with the + and – symbols in the battery
compartment.
3 Replace the cover.
To program your existing remote control to work with your Dynex TV, see the
table below for common codes. If you have problems programming your
remote, or need a dierent remote control code, visit www.dynexproducts.com
for the latest remote control code information.
HDMI 1
PC IN
COMPONENT IN
ANT/ CABLE IN
AUDIO OUT
PB
P
R
DIGITAL OUTPUT
VGA
AUDIO
Y
AUDIO
LR
AUDIO
LR
HDMI 1
PC IN
COMPONENT IN
ANT/ CABLE IN
AUDIO OUT
P
B
P
R
DIGITAL OUTPUT
VGA
AUDIO
Y
AUDIO
LR
AUDIO
LR

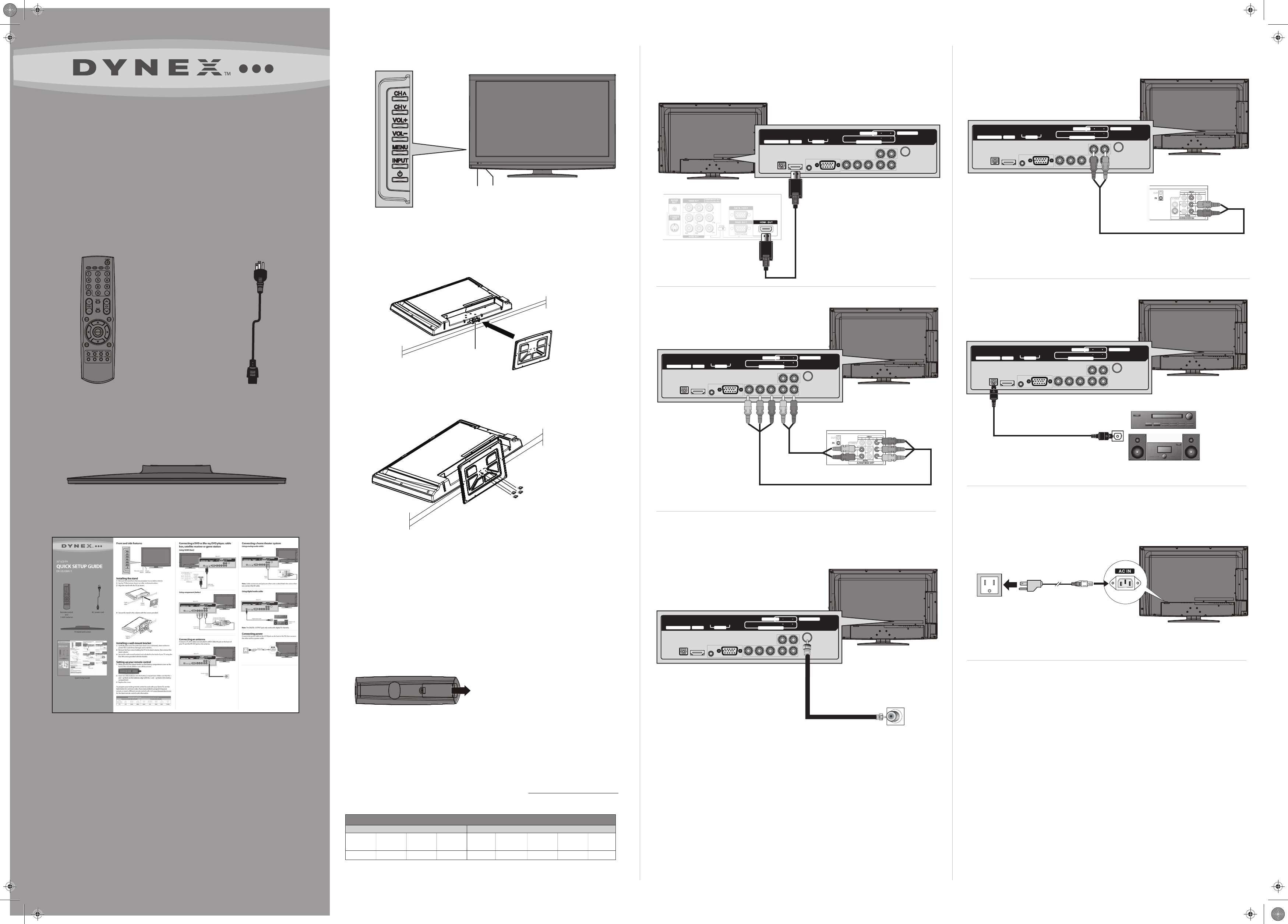

32" LCD TV
QUICK SETUP GUIDE
DX-32L100A11
HDMI cable
(not included)
HDMI device
Remote control
and
2 AAA batteries
AC power cord
TV stand and screws
Quick Setup Guide
Component video device
Back of TV
Back of TV
Audio
cable
Component
video cable
HDMI 1
PC IN
COMPONENT IN
ANT/ CABLE IN
AUDIO OUT
P
B
P
R
DIGITAL OUTPUT
VGA
AUDIO
Y
AUDIO
LR
AUDIO
LR
75-Ohm coaxial
cable
HDMI 1
PC IN
COMPONENT IN
ANT/ CABLE IN
AUDIO OUT
PB
P
R
DIGITAL OUTPUT
VGA
AUDIO
Y
AUDIO
LR
AUDIO
LR
Back of TV
Back of TV
HDMI 1
PC IN
COMPONENT IN
ANT/ CABLE IN
AUDIO OUT
PB
P
R
DIGITAL OUTPUT
VGA
AUDIO
Y
AUDIO
LR
AUDIO
LR
Back of TV
Digital optical cable
Digital sound
system
Audio amplier
Power cord
Component
audio cable
(not included)
Power outlet
Stand
column
Stand
Table
edge
Table
edge
