Dimensions and Installation Information (in inches)
For answers to your Monogram,
®
GE Profile
or
GE
®
appliance questions, visit our website at
ge.com or call GE Answer Center
®
service,
800.626.2000.
JGBP28SEK
GE
®
30" Free-Standing Self-Clean Gas Range
Specification Created 6/05
330429
24
30" FS Gas Range s-CL
30
8
4
9
2
2-1/2
Recommende
d area for
thru the floor connection
of pipe stub and shut-off valve
Recommended area for
120V outlet o
n rear wal
l
and area for
thru the wal
l
connection of pipe stub
and shut-off
valve
30
46-7/8
26-1/4*
46-3/8
36
-1/4±1/4

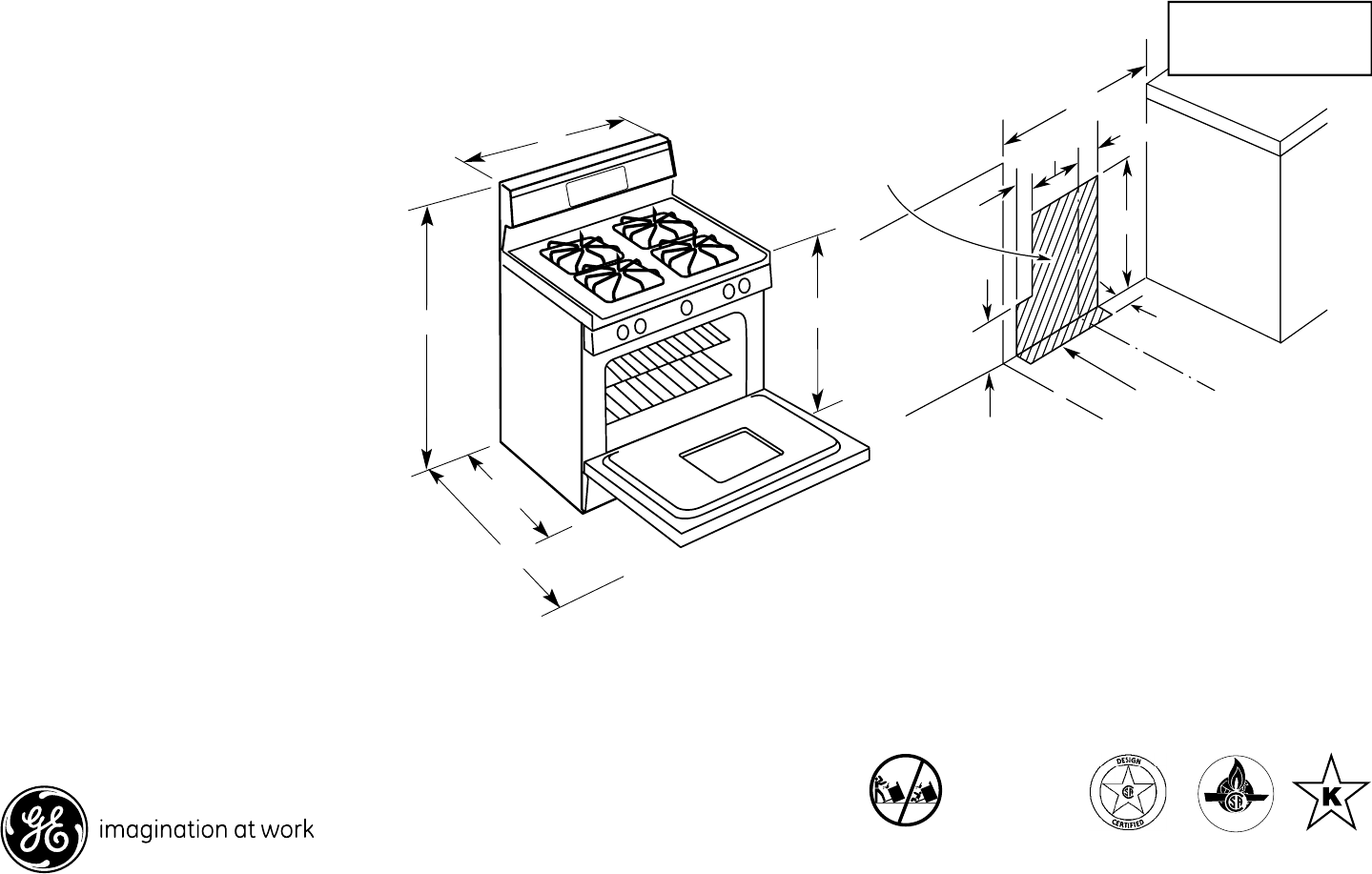

Installation Inform
ation (Dimension
s in inches)
Recommended common
area for gas outlet and
electrical outlet
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
CERTIFIED
Optional Gas Range Accessory Drip Pans for
Sealed and Standard Burner Models
(
Available at additional cost
)
To order these accessory drip pans,
call toll-free 800-626-2002
Gas Self-Clean Range Anti-Tip Bracket
(Part
No. 205C1714P001)
Electrical Rating
: 120V, 60Hz, 5A
Installation Information:
Before installing,
consult installation instructions packed with
product for current dimensional data.
* Dimension from the wa
ll to the front of the closed door
handle is 28-1/4". Depth to the front edge of cooktop 25-1/4"
.
