JVB98SH – GE Profile
36" Telescopic Downdraft System
Specification Created 7/03
220961
TM
2-1/4
6-3/8
3-1/4
33-7/8
36
17-1/8
20-5/8
12-1/8
7-1/4
7-1/2
8-1/2
27
C
L

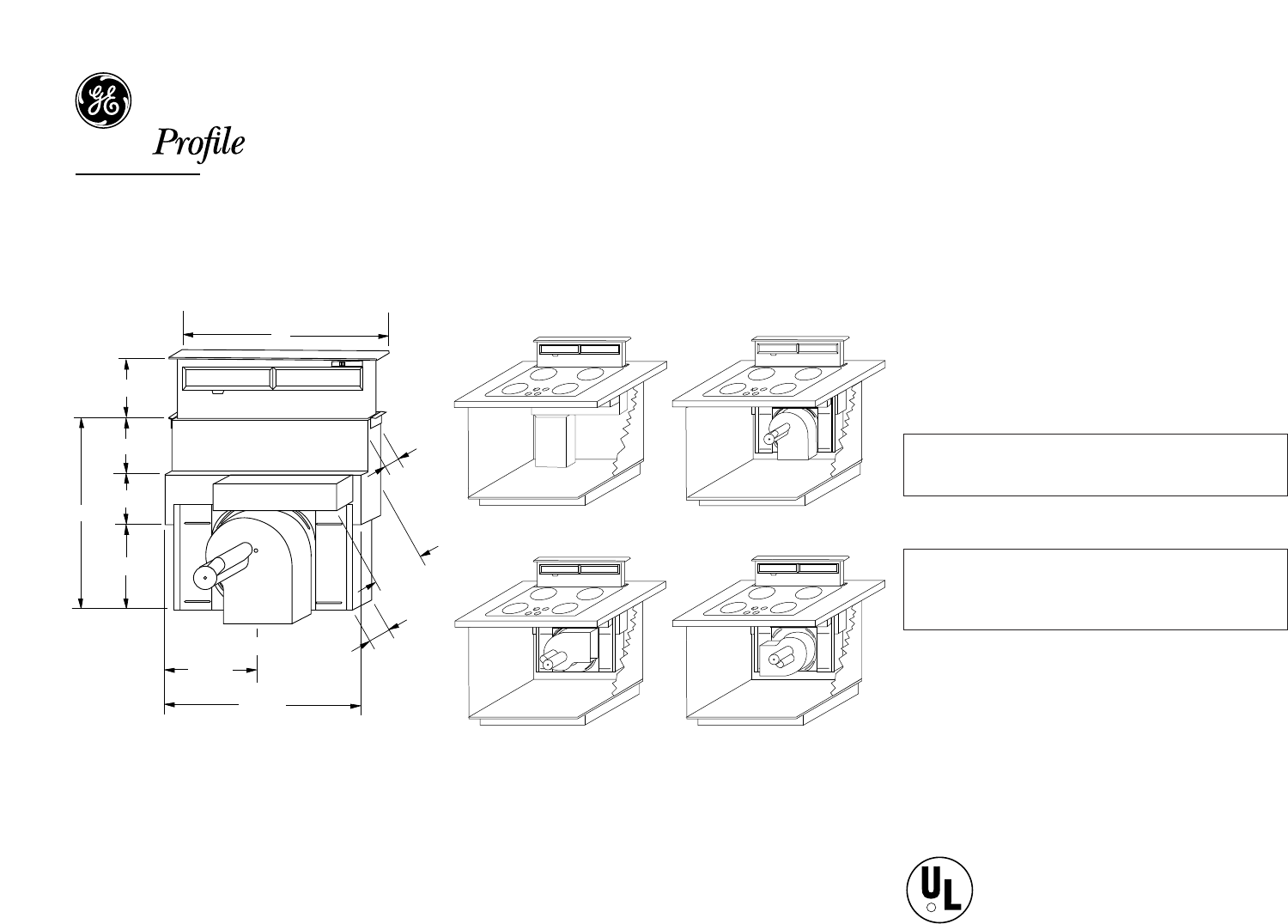

Overall Dimensions (in inches) Venting Options (in inches)
Installation Information: Before installing, consult installation instructions
packed with product for current dimensional data.
For answers to your Monogram,
®
GE Profile
or
GE
®
appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center
®
service, 800.626.2000.
Through the Floor
In Cabinet Discharge (Down)
In Cabinet Discharge (Right)
In Cabinet Discharge (Left)
R
Listed by
Underwriters
Laboratories
Note: Telescopic downdraft vents are not recommended to be
installed with cooktops that are flush mounted.
Approved for use with the following GE Profile
and GE cooktops –
36" and 30" electric models, 36" and 30” gas sealed burner models
and 36" and 30" induction models.
Not approved for use with standard burner gas cooktops.
Note:
The countertop must be at least 26" deep with a flat surface
area of 23-1/2" or more, front to back. In addition, other clearances
to the front edge of the countertop must be considered.
Note: Dimensions shown are for reference only. Before cutting out
countertop, refer to instructions packed with
downdraft and cooktop.
Note: Installation in cabinets/countertops against the wall
will not be possible in most applications. Against the wall
installations are limited to dimension requirements. Refer to
installation instructions packed with product for further details.
JXBC67 Outdoor Cover.
Optional accessory may be ordered for
installation of motor and blower assembly on outside wall.
JXRB67 Indoor Remote Accessory. Optional accessory may be
ordered for installation of motor and blower assembly in an indoor
remote location.
Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data.
