— 28 —

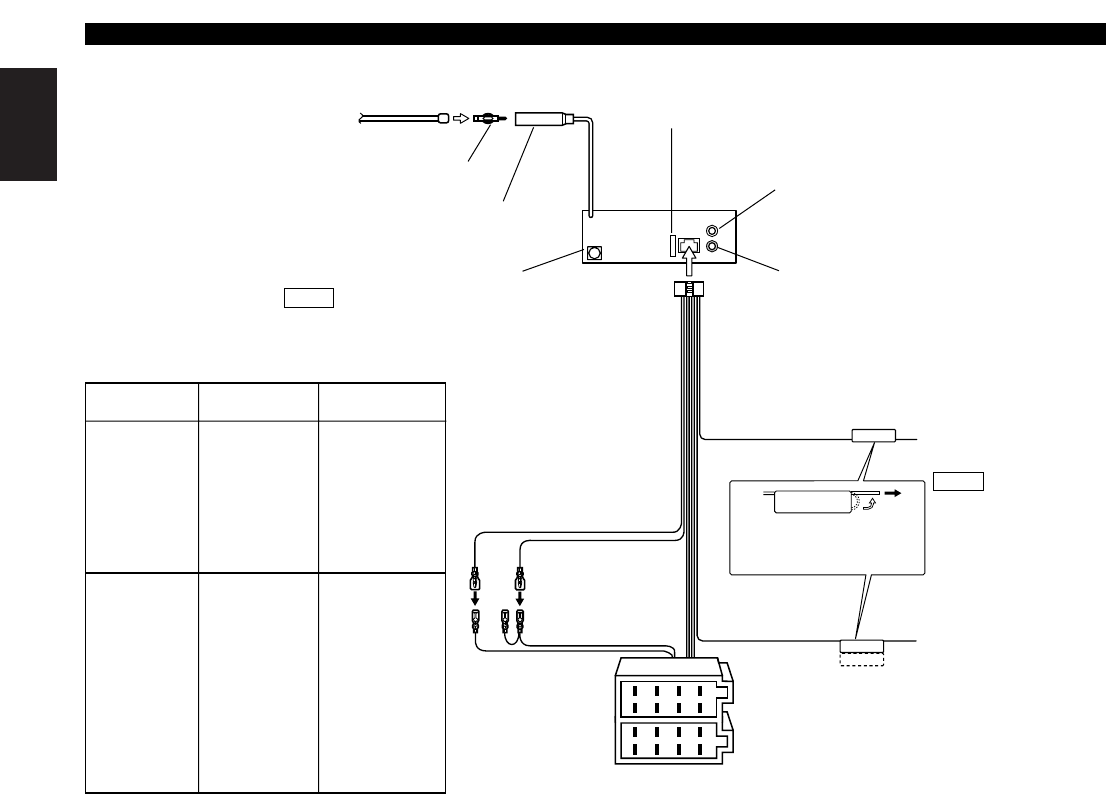

Connecting Cables to Terminals
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
TEL MUTE
P.CONT
ANT.CONT
Rear right
output (Red)
Rear left
output (White)
Connector Function Guide
Pin Numbers for
ISO Connectors
Cable Colour Functions
External Power
Connector
A–4
A–5
A–7
A–8
Speaker
Connector
B–1
B–2
B–3
B–4
B–5
B–6
B–7
B–8
Yellow
Blue/White
Red
Black
Purple
Purple/Black
Gray
Gray/Black
White
White/Black
Green
Green/Black
Battery
Power Control
Ignition (ACC)
Earth (Ground)
Connection
Rear Right (
+)
Rear Right (–)
Front Right (+)
Front Right (–)
Front Left (+)
Front Left (–)
Rear Left (+)
Rear Left (–)
Battery cable (Yellow)
Ignition cable (Red)
FM/AM antenna
input
Antenna Cord (ISO)
Antenna Conversion Adaptor (ISO–JASO) (Accessory3)
To connect the KENWOOD
navigation system, consult
your navigation manual.
NOTE
Wiring harness
(Accessory1)
If no connections are made,
do not let the cable come
out from the tab.
Power control/ Motor
antenna control cable
(Blue/White)
TEL mute cable (Brown)
Connect either to the power
control terminal when using
the optional power amplifier,
or to the antenna control
terminal in the vehicle.
Connect to the terminal that is
grounded when either the
telephone rings or during
conversation.
A–7 Pin (Red)
A–4 Pin (Yellow)
Connector A
Connector B
Fuse (10A)
KENWOOD disc changer control input
To connect the Disc changer,
consult your Disc changer manual.
NOTE
