I
f Cable TV signal into your home is a
single cable (75 ohm) the connection
to the TV is easy.
1
Connect the Cable TV cable
directly to the 75Ω jack on the
TV.

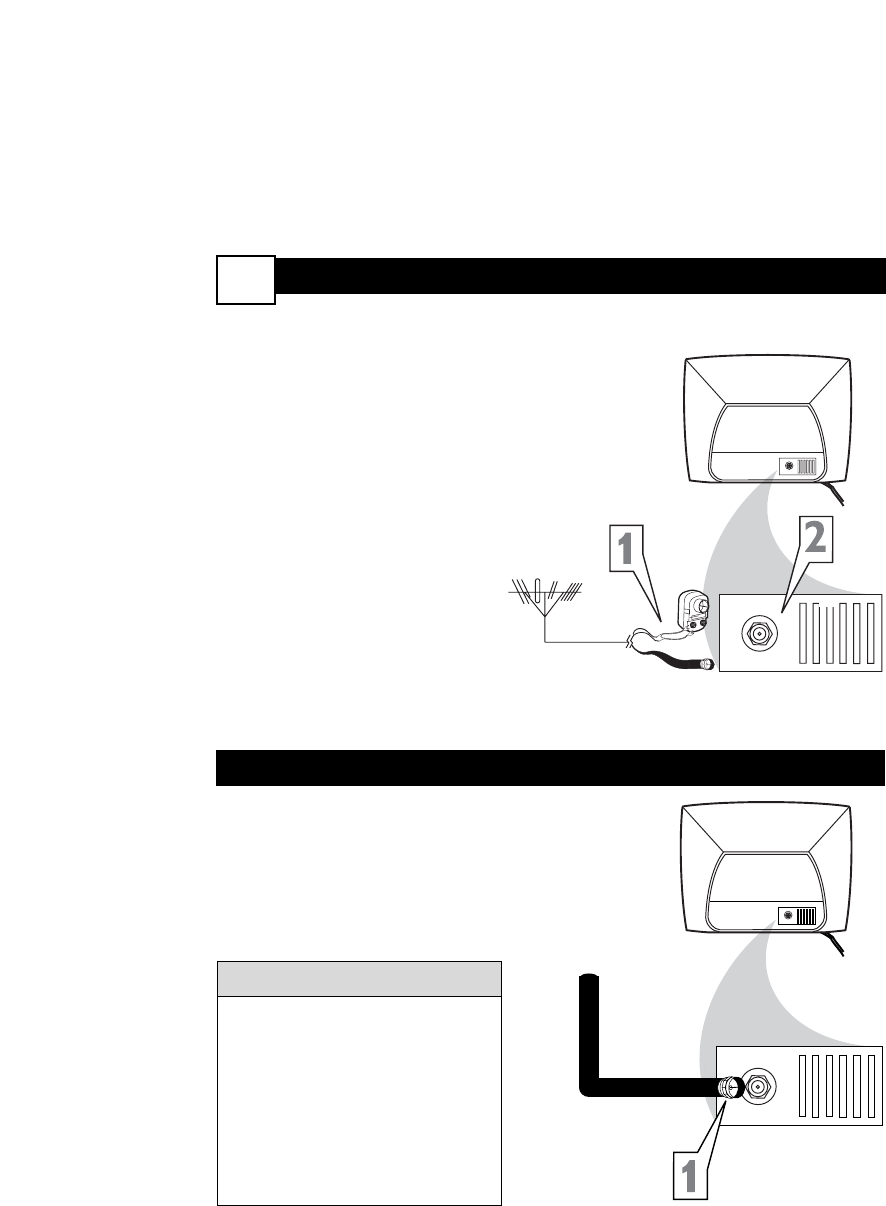

Basic Cable TV Connection
Basic Antenna Connection
75Ω
75Ω
Cable TV Signal
RF Coaxial
Cable 75Ω
Rear of TV
A
combination antenna receives normal
broadcast channels (VHF 2-13 and
UHF 14-69). Your connection is easy
since there is only one 75Ω (ohm)
antenna plug on the back of your TV -
and that’s where the antenna goes.
1
If your antenna has a round
cable (75 ohm) on the end, then
you're ready to connect it to the
TV. Go to step 2.
If your antenna has flat twin-
lead wire (300 ohm), you first
need to attach the antenna wires
to the screws on a 300 to 75
ohm adapter (not supplied with
TV).
2
Push the round end of the
adapter or antenna cable onto
the 75Ω jack on the rear of the
TV. If the round end of the
antenna cable is threaded, screw
it down tight.
1
75Ω
75Ω
Combination
VHF/UHF Antenna
(Outdoor or Indoor)
Twin Lead
Wire
Round Cable 75Ω
Rear of TV
If no Video Signal is present, the TV
will shut itself off in about 10 min-
utes. If the TV is tuned to the AV
channel and there is no Video Signal
present, the screen will remain black
and the TV will shut itself off in about
10 minutes.
Use Auto Program as described on
panel 9 to set up channels that are
available in your area. Use the CH +/–
buttons to scan available channels.
Helpful Hints
