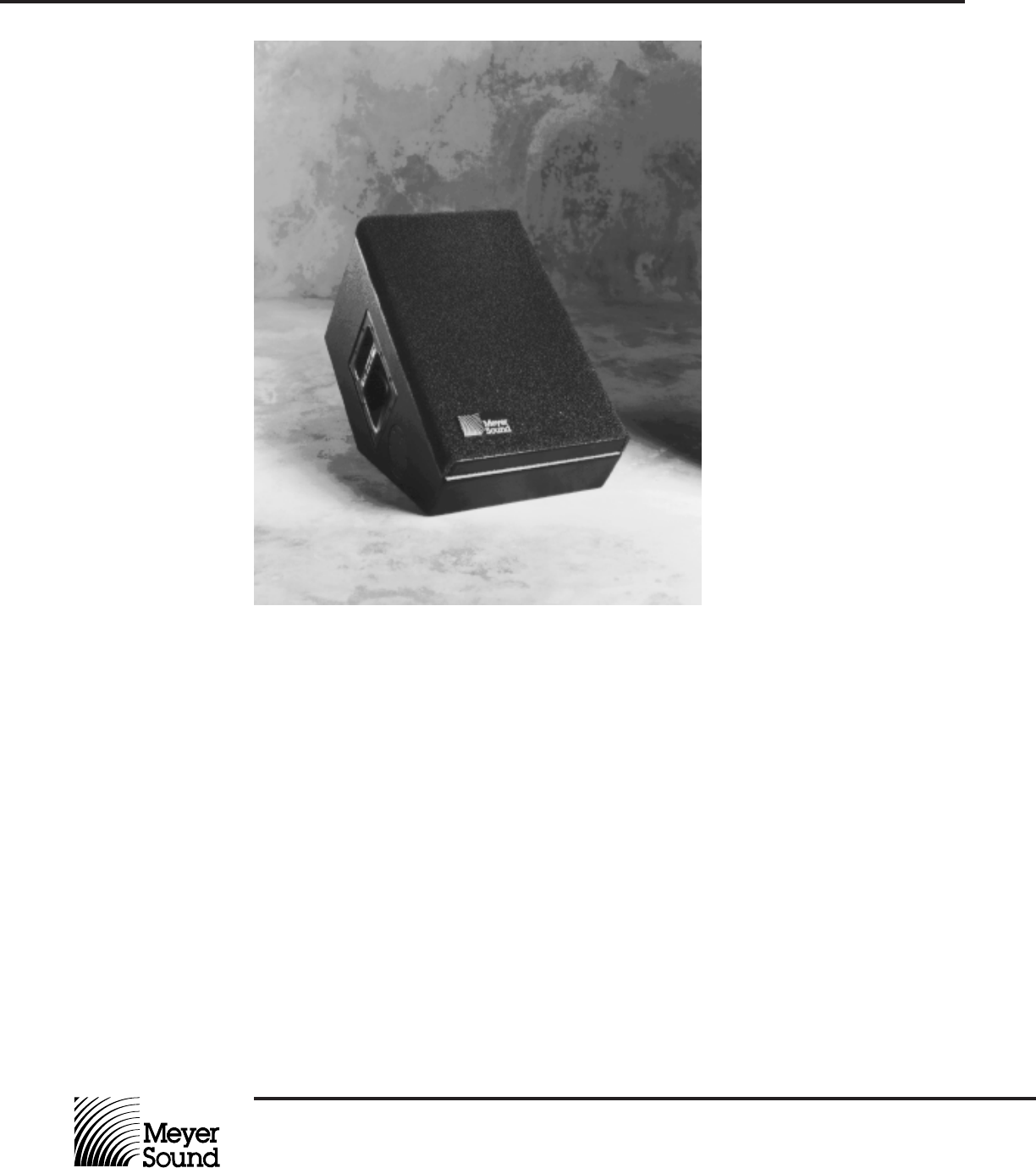

UM-1C
UltraMonitor™
The UltraMonitor delivers the final
word on high-powered, critical monitoring.
Specifically designed for touring reinforce-
ment, the highly accurate, rugged UM-1C
biamplified system consists of a proprietary
12-inch low-frequency driver in a vented
enclosure, and a symmetrical pattern 45-
degree high-frequency horn with driver.
The UM-1C proprietary drivers provide
exceptional efficiency and power handling,
with ultra-low distortion for high clarity.
Very flat frequency response allows control
of feedback at high sound levels.
The sturdy, multi-ply hardwood enclo-
sure with textured finish withstands road
abuse. The unit comes with handles and,
optionally, aircraft-style rigging pan fittings.
The UltraMonitor requires a high-
quality professional stereo power amplifier
capable of delivering up to 250 watts per
channel continuously into 8 ohms, with a
signal voltage gain of 20dB (minimum)
to 30dB (maximum).
— 12
–
–
— 9
–
–
— 6
–
–
— 3
–
–
— 0
Inches
Features
High gain-before-feedback
Ultra-low distortion
Ultra-flat frequency response
Rugged and reliable
Applications
Stage Monitoring
Clubs and concerts
Low-throw coverage
Fill coverage
Meyer Sound Laboratories, Inc.
2832 San Pablo Avenue
Berkeley, CA 94702
(510) 486-1166
FAX (510) 486-8356
