P401 Installation Guide
40” LCD Display Rev 1.0
www.necdisplay.com
Contents:
Product Description and Notes Page 1
Tilt Angle and Rotation
Page 1
Ventilation Requirements
Page 2
Display Dimensions
Front, Top & Right Side Page 3
Rear & Bottom
Page 4
Display Dimensions w/Optional Speakers and Stand
Page 5
Optional Table Top Stand Dimensions
Page 6
Optional Speaker Dimensions
Page 7
Dimensions with Optional Wall Mount
Page 8
Control Codes
Page 9
Product Description
Type: LCD Display Screen Surface: Anti-Reflective
Resolution: 1920 x 1080 Dimensions: 36.2”(W) x 21.0”(H) x 5.5”(D)
920mm(W) x 532mm(H) x 140mm(D)
Aspect Ratio: 16:9 Weight: 52.9 lbs / 24.0 kg
FCC: Class B
Power Consumption: 330W (max) BTU’s: 1126 BTU/hour
Notes
This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not intended to
be a step-by step procedure for installation.
Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local
building codes. All mounts should make secure contact to wood studs.
4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally to
fill the screen using the menus (see “Aspect Modes” in menus and user manual).
Distances are in inches, for millimeters multiply by 25.4.
Distances may vary ±5%.

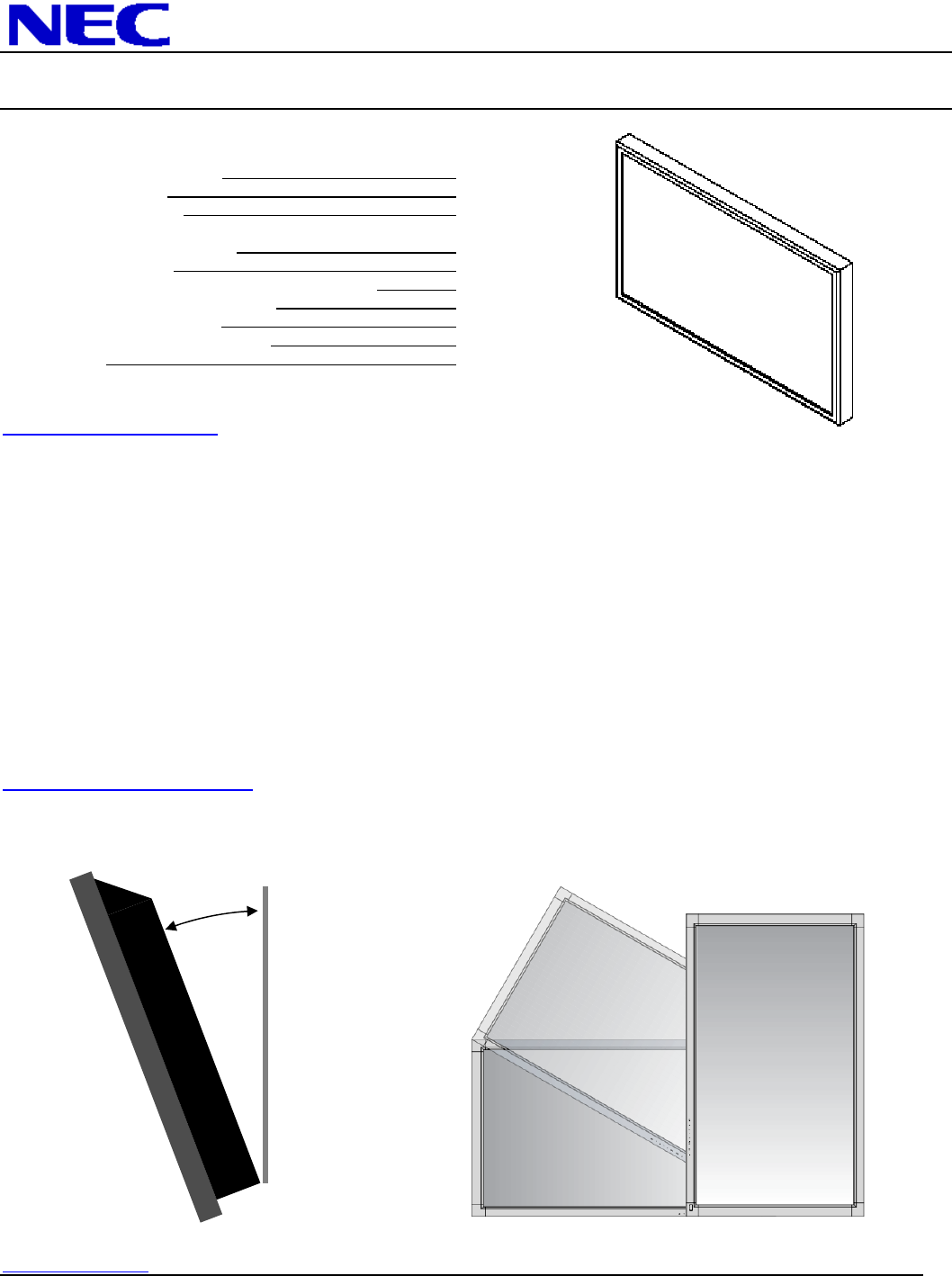

Tilt Angle and Rotation
Below are the maximum angles that the monitor can be tilted in the landscape position only.
Landscape 20deg
P401 Page 1 of 9
Max. 20 deg
