NEC Display Solutions of America, Inc.

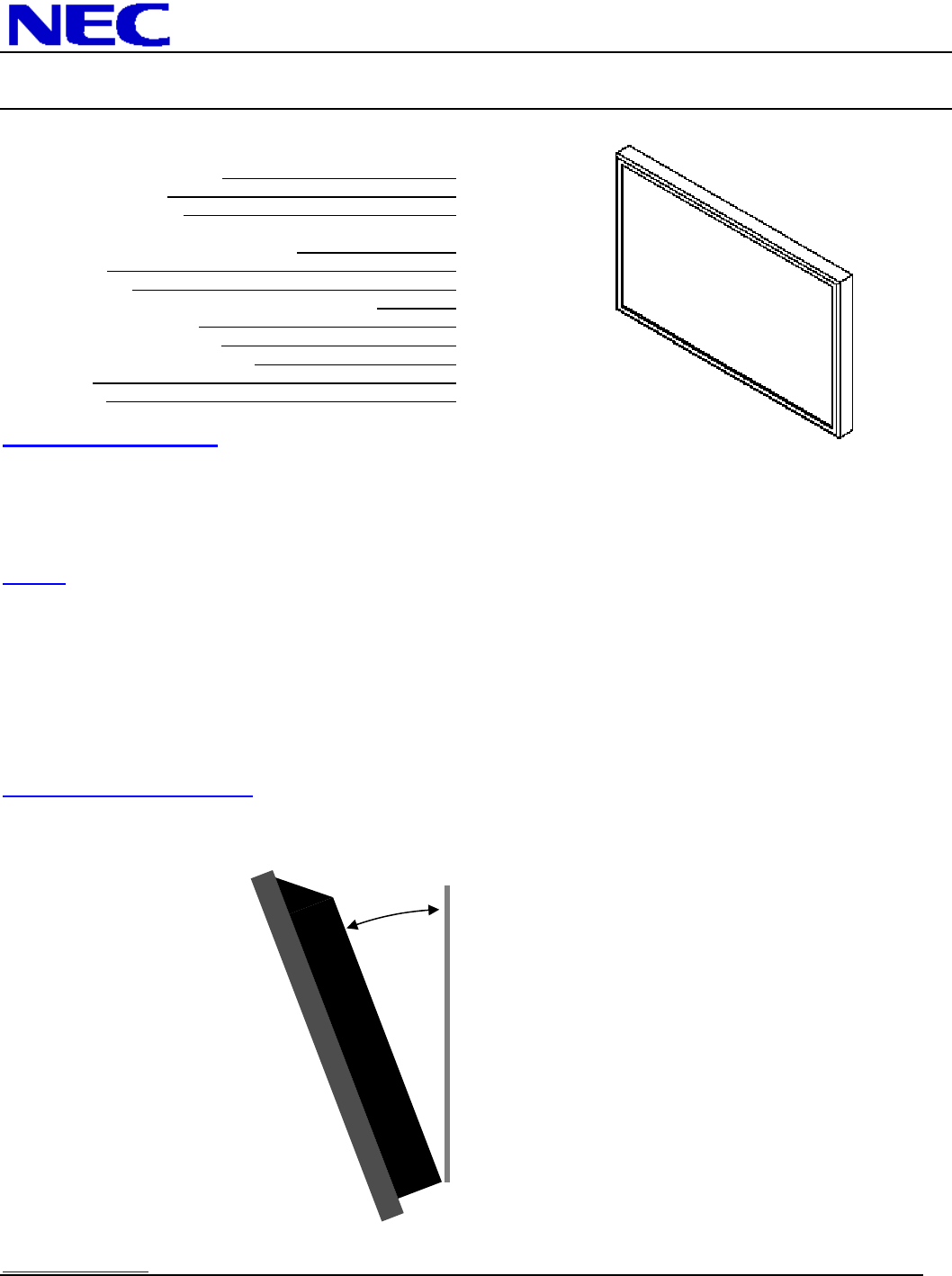

P60XP10-BK Installation Guide
60” Plasma Monitor Rev 1.2
www.necdisplay.com
Contents:
Product Description and Notes Page 1
Tilt Angle and Rotation
Page 1
Ventilation Requirements
Page 2
Display Dimensions
Front, Top, Bottom & Right Side Page 3
Rear
Page 4
Cosmetic Colors
Page 4
Display Dimensions w/Optional Speakers and Stand
Page 5
Optional Stand Dimensions
Page 6
Optional Speaker Dimensions
Page 7
Dimensions w/Optional Wall Mount
Page 8
Connections
Page 9
Control Codes
Page 10
Product Description
Type: Plasma Monitor Screen Surface: Anti-Reflective
Resolution: 1366x768 Dimensions: 56.97”(W) x 34.28”(H) x 5.00”(D)
Aspect Ratio: 16:9 Weight: 151.0 lbs
FCC: Class B
Notes
This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not intended to
be a step-by step procedure for installation.
Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local
building codes. All mounts should make secure contact to wood studs.
4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally to
fill the screen using the menus (see “Aspect Modes” in menus and user manual).
Distances are in inches, for millimeters multiply by 25.4.
Distances may vary ±5%.
Tilt Angle and Rotation
Below are the maximum angles that the monitor can be tilted in the landscape position only.
Do not install in the portrait position.
Landscape 20deg
Max. 20 deg
P60XP10-BK Page 1 of 10
