Sylvania LC370SS8 Flat Panel Television User Manual



10
EN
C
ONNECTION

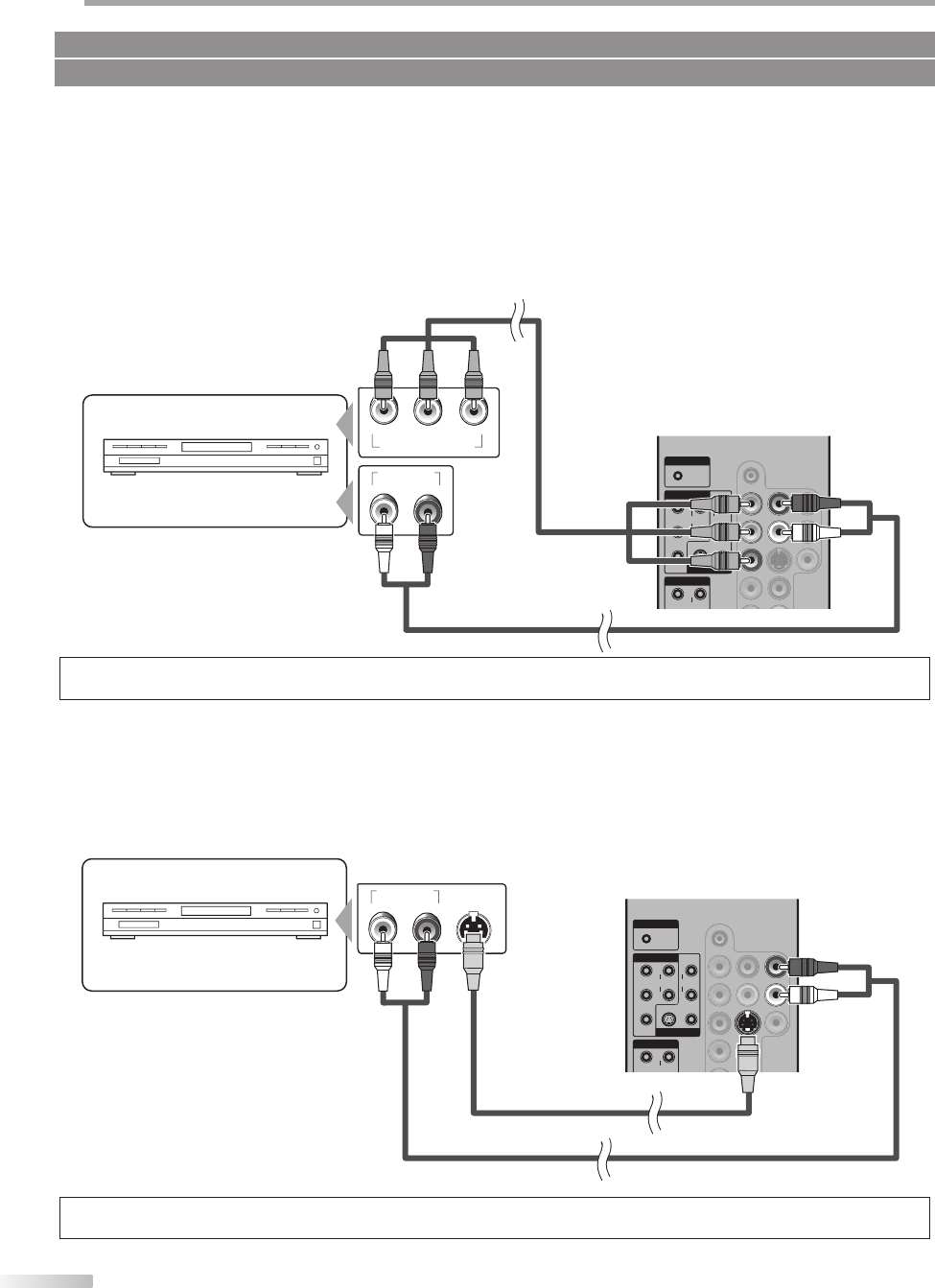

[Component Video Cable Connection]
Component video connection offers better picture quality for video devices connected to the unit.
Use a component video cable to connect the unit to external video devices equipped with component video output
jacks.
If you connect to the unit’s COMPONENT 1 video input jack, connect RCA audio cables to the audio L/R jacks of
COMPONENT 1.
If you connect to the unit’s COMPONENT 2 video input jack, connect RCA audio cables to the audio L/R jacks of
COMPONENT 2.
COMPONENT VIDEO OUT
PrPbY
AUDIO OUT
RL
COMPONENT 1
VIDEO 1
PC-IN
AUDIO
AUDIO
YR
Pb
Pr
L
AUDIO
S VIDEO VIDEO
R
L
COMPONENT 2
AUDIO
YR
Note:
• This unit accepts 480i / 480p / 720p / 1080i video signals.
[S-video Cable Connection]
S-video connection offers good picture quality for video devices connected to the unit.
Use an S-video cable to connect the unit to external video devices equipped with S-video output jack.
If you connect to the unit’s VIDEO 1 S-video input jack, connect RCA audio cables to the audio L/R jacks of VIDEO 1.
If you connect to the unit’s VIDEO 2 S-video input jack, connect RCA audio cables to the audio L/R jacks of VIDEO 2.
AUDIO OUT
RL
S-VIDEO
OUT
COMPONENT 1
VIDEO 1
PC-IN
AUDIO
AUDIO
YR
Pb
Pr
L
AUDIO
S VIDEO VIDEO
R
L
COMPONENT 2
AUDIO
Y
R
Note:
• If you connect to the S-video jack and the video jack at the same time, the S-video connection will have priority.
Cables not included.
Please purchase the necessary cables at your local store.
e.g.)
DVD player with the component
video output jacks
component video cable
RCA audio cable
rear of this unit
(red)(blue)(green)
e.g.)
DVD player with the S-video output
jack
rear of this unit
S-video cable
RCA audio cable
(red)
(blue)
(green)
