WATCHING TVINTRODUCTION
CONNECTION
INITIAL SETTING
OPTIONAL SETTING
TROUBLESHOOTING
INFORMATION

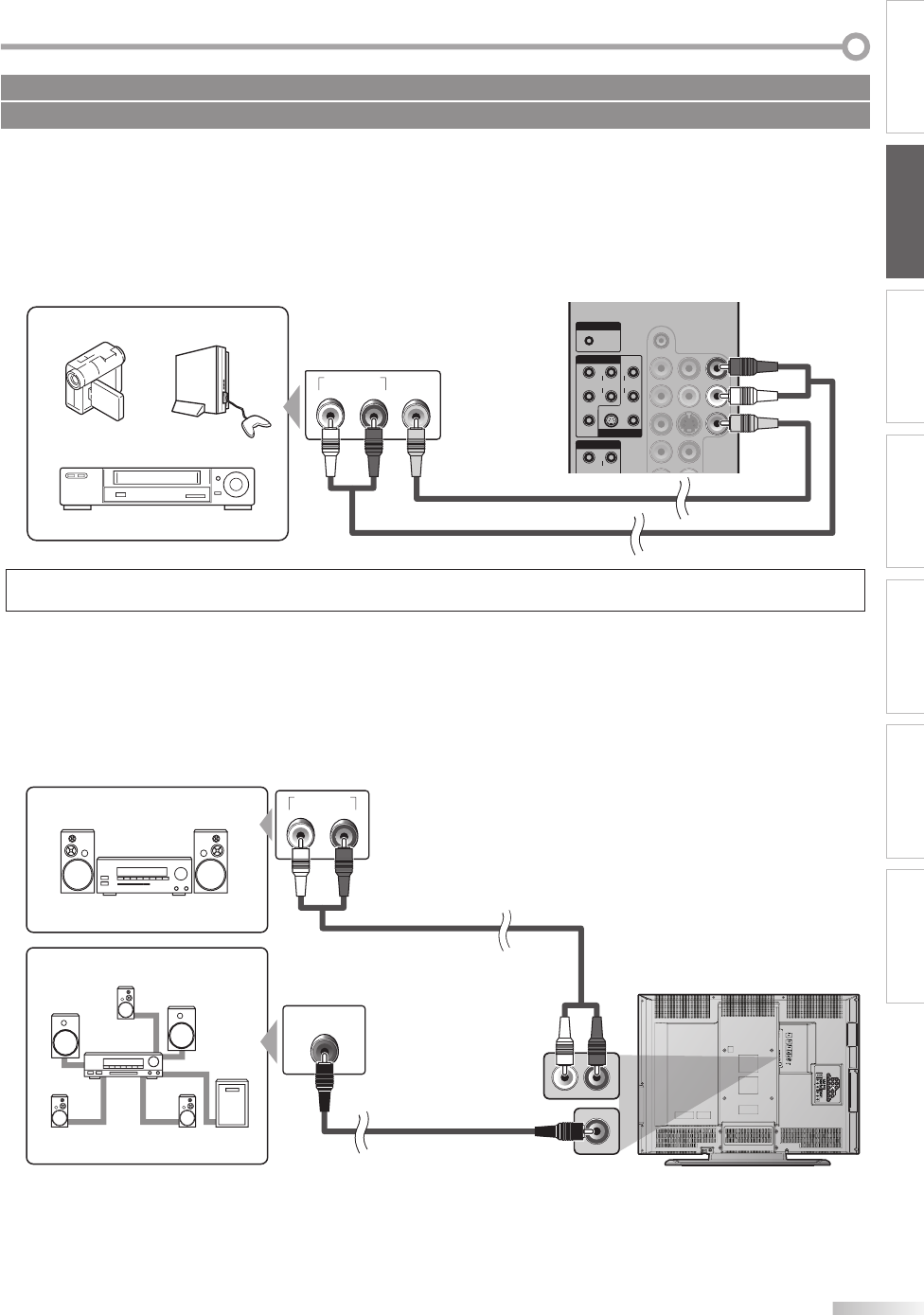

[Video Connection]
Video connection offers standard picture quality for video devices connected to the unit.
If you connect to the unit’s VIDEO 1 video input jack, connect RCA audio cables to the audio L/R jacks of VIDEO 1.
If you connect to the unit’s VIDEO 2 video input jack, connect RCA audio cables to the audio L/R jacks of VIDEO 2.
When the audio jack of the video device is monaural, connect the RCA audio cable to the audio L input jack.
COMPONENT 1
VIDEO 1
PC-IN
AUDIO
AUDIO
YR
Pb
Pr
L
AUDIO
S VIDEO VIDEO
R
L
COMPONENT 2
AUDIO
Y
R
AUDIO OUT
RL
VIDEO
OUT
Note:
• If you connect to the S-video jack and the video jack at the same time, the S-video connection will have priority.
[Audio Output Connection]
[Digital]
If you connect this unit to an external digital audio device, you can enjoy multi-channel audio like 5.1ch digital
broadcasting sound.
[Analog]
If you connect this unit to an external analog audio device, you can enjoy stereo (2 channel) audio.
COMPONENT 1
PC-IN
COMPONENT 2
VIDEO 1
DIGITAL AUDIO
COAXIAL IN
AUDIO IN
RL
Cables not included.
Please purchase the necessary cables at your local store.
e.g.)
camcorder video game
VCR
RCA video cable
RCA audio cable
rear of this unit
e.g.)
Stereo system
e.g.)
Dolby Digital decoder
RCA audio cable
To AUDIO OUT
jack
digital audio
coaxial cable
To DIGITAL AUDIO
OUT jack
rear of this unit
