52
RQT6981
Advanced operation
Home Theater
§
By using the S video cable instead of the yellow video cable you
may make recordings of higher picture quality.
≥If the audio output of the other equipment is monaural, connect to
L/MONO. (Both left and right channels are recorded when
connected through L/MONO.)
≥The DV input on this unit is for use with DV equipment only.
≥When DV equipment is connected, it is not possible to operate the
unit from the other equipment.
≥Only one piece of DV equipment (e.g., Digital Video Camcorder)
can be connected to the unit via the DV Input terminal.
≥The picture compression system of the DV equipment you have
connected may differ from that used in this unit. In such cases,
dubbing from this equipment will not be possible.
§
By using the S video cable instead of the yellow video cable you
may make recordings of higher picture quality.
[Note]
If audio output on the other equipment is monaural, use a stereo-
monaural conversion cable (not included).

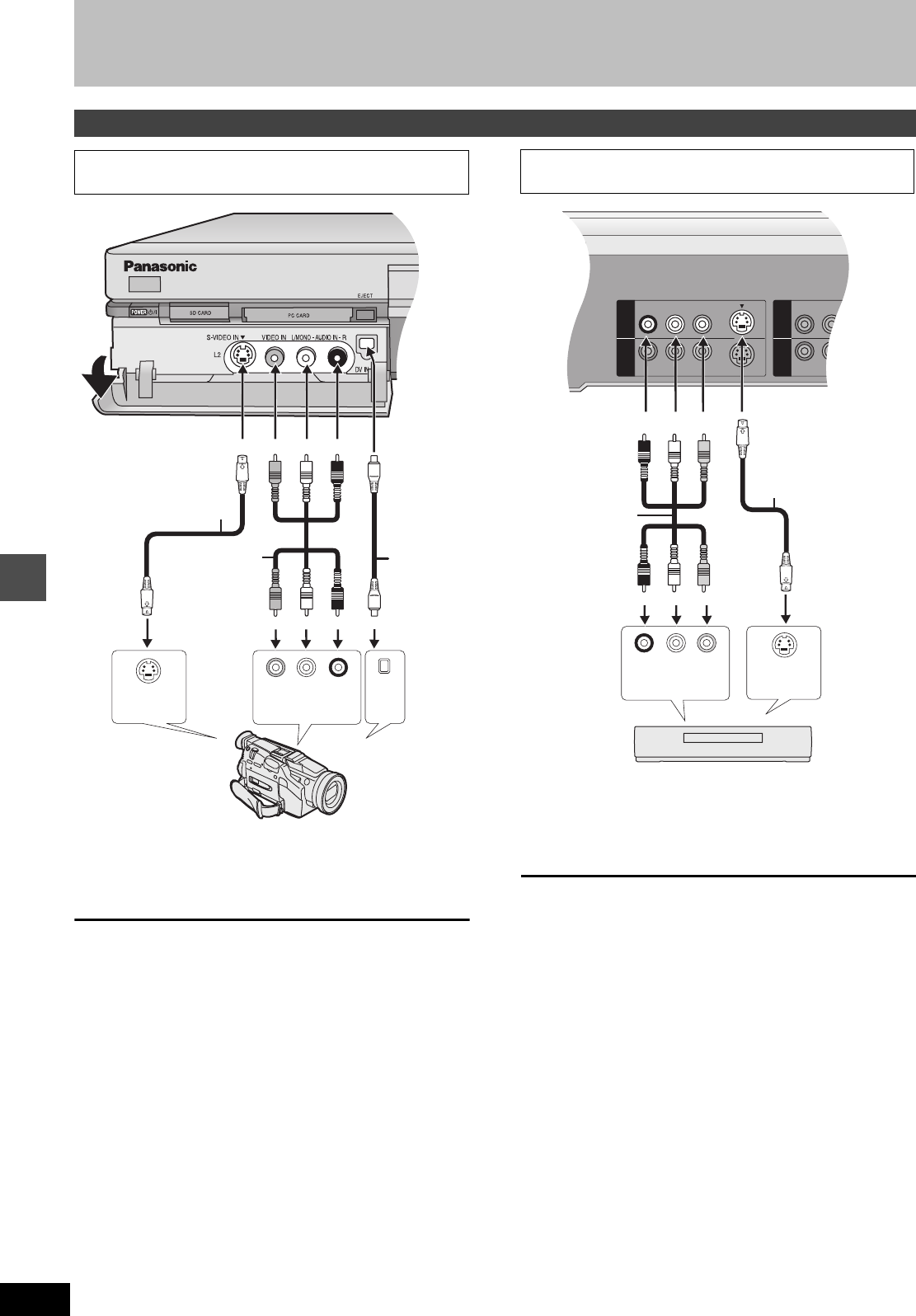

Connecting other video equipment
Connecting to the L2 and DV input terminals on
the front of the unit
S VIDEO
OUT
AUDIO
OUT
VIDEO
OUT
LR
DV
OUT
Audio/Video
cable (included)
S video cable
§
Other video equipment
Connect to the video and audio output terminals.
yellow white red
yellow white red
This unit
DV cable
(IEEE1394,
4-pin)
Connecting to the input terminals on the rear of
the unit, L1 and L3
R - AUDIO - L
R - AUDIO - L
VIDEO
VIDEO
S-VIDEO
S-VIDEO
(L3)
(L1)
IN 1 IN 3
R - AUDIO - L
R - AUDIO - L
OUT 1 OUT 2
S VIDEO
OUT
AUDIO
OUT
VIDEO
OUT
L
R
Other video equipment
Connect to the video and audio output terminals.
S video cable
§
red white yellow
red white yellow
Audio/Video cable
(included)
This unit
