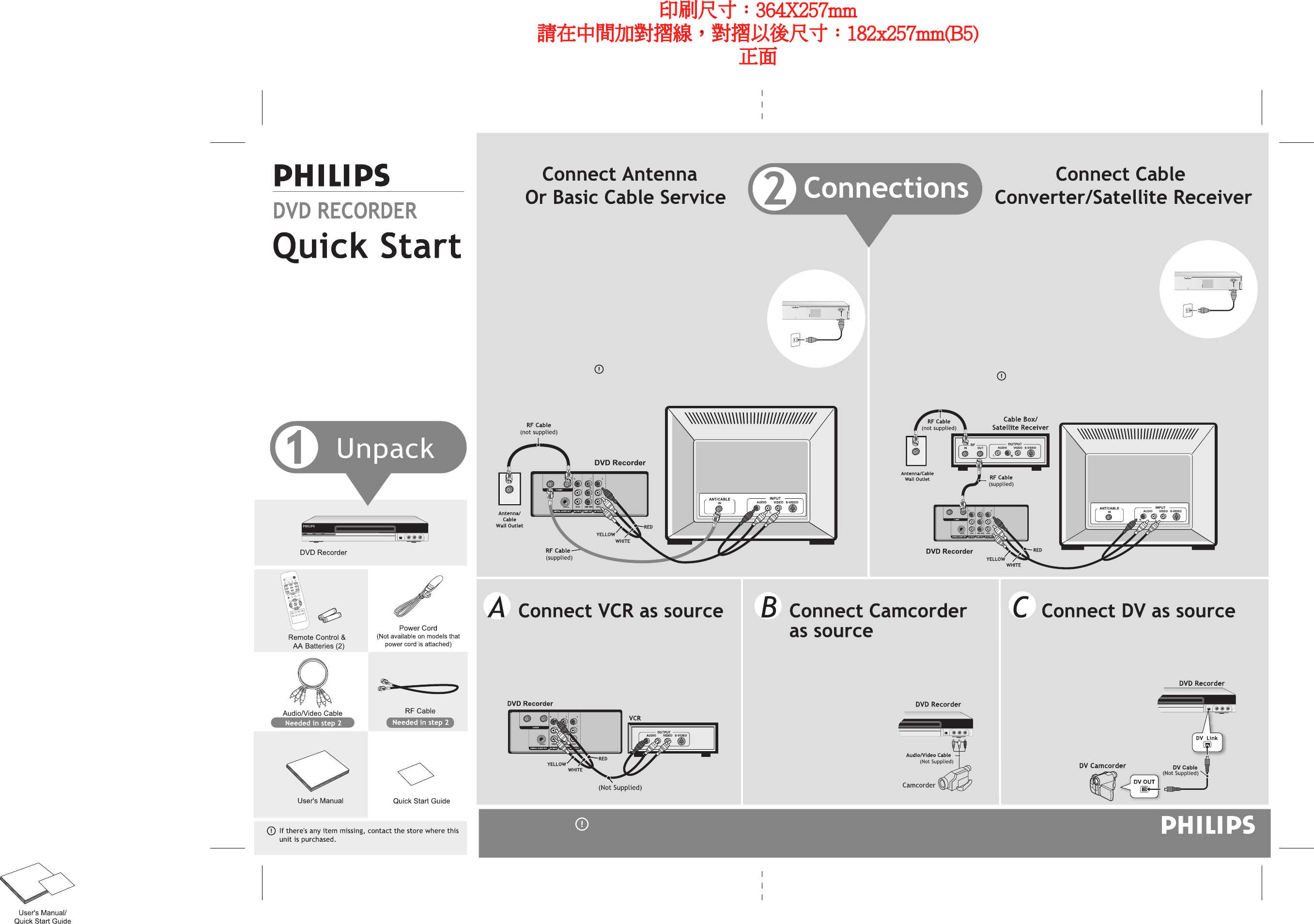

1 Connect Antenna or Cable service to RF-IN jack on the unit
using RF cable (see picture below).
2 Connect DVD Recorder to your TV set using AV cable (see
picture below).
3 If you have other AV sources you wish to connect to this DVD
recorder, see panel A, B, C below for reference.
4 Attach power cord to the DVD recorder and then connect to
the wall outlet (see picture on the right).
5 Press POWER key on the remote or front panel to turn on the
DVD recorder.
6 Turn on your TV and switch to proper input.
7 Proceed with Step 3
on the back page
1 Connect Cable Converter/Satellite Receiver to RF-IN jack on
the unit using RF cable (see picture below).
2 Connect DVD Recorder to your TV set using AV cable (see
picture below).
If you need to use a setup box, cable converter or satellite receiver
to receive TV signal, skip channel setup in STEP 3 on the next page.
3 If you have other AV sources you wish to connect to this DVD
recorder, see panel A, B, C below for reference.
4 Attach power cord to the DVD recorder and then connect
to the wall outlet (see picture on the right).
5 Press POWER key on the remote or front panel to turn on
the DVD recorder.
6 Turn on your TV and switch to proper input.
7 Proceed with Step 3 on the back page.
1 Connect Camcorder to the DVD recorder using AV cable
(see picture below).
2 If the DVD recorder is not connected to a TV set, return
to the Connection Guide above to continue connecting
the recorder to TV.
1 Connect VCR to the DVD recorder using AV cable (see picture
below).
2 Connect the power cords of both VCR and DVD recorder to
the wall power outlet. Turn the VCR and the DVD recorder
on.
1 Connect DV to the DVD recorder using DV cable (see
picture below).
2 If the DVD recorder is not connected to a TV set, return to
the Connection Guide above to continue connecting the
recorder to TV.
Note: For advanced connections, please refer to the “Connecting Up” section (p.6) in the User’s Manual.
P/N 7819901519
Thank you for purchasing PHILIPS DVD Recorder.
Please follow the step-by-step instructions to
connect and set up your new DVD recorder.
Please complete these recommended steps
before using your recorder. For more advanced
setups and operations, please refer to the
User's Manual. If you encounter any problem
setting up or operating this DVD recorder,
please refer to the “Troubleshooting” section
in the User's Manual before contacting technical
support.
