Connecting up02
12
En
Compatibility of this player with
progressive-scan and high-definition TVs
This player is compatible with progressive
video Macro Vision System Copy Guard.
Consumers should note that not all high-
definition television sets are fully compatible
with this product and may cause artifacts to be
displayed in the picture. In case of 525/625
progressive scan picture problems, it is
recommended that the user switch the
connection to the ‘standard definition’ output
(Interlace). If there are questions regarding our
TV set compatibility with this model, please
contact our customer service center.
This player is compatible with the following
Pioneer displays and monitors:
PDP-504HDE, PDP-434HDE
Connecting to an AV receiver
To enjoy multichannel surround sound you
need to connect this player to an AV receiver
using the digital audio output. This player has
both coaxial and optical digital jacks; use
whichever is convenient.
In addition to a digital connection, we
recommend also connecting using the stereo
analog connection.
You’ll probably also want to connect a video
output to your AV receiver. You can use any of
the video outputs available on this player (the
illustration shows a standard (composite)
connection).

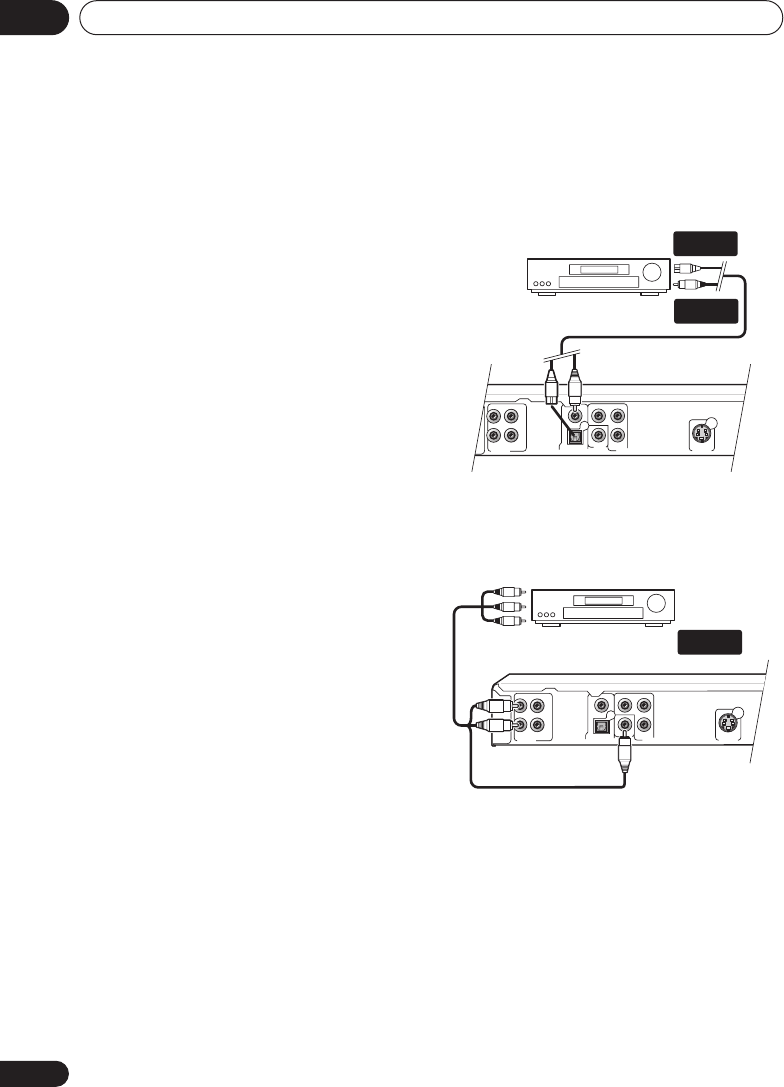

1 Connect one of the DIGITAL AUDIO OUT
jacks on this player to a digital input on
your AV receiver.
This enables you to listen to multichannel
surround sound.
For an optical connection, use an optical cable
(not supplied) to connect the
OPTICAL
DIGITAL AUDIO OUT
jack to an optical input
on your AV receiver.
For a coaxial connection, use a coaxial cable
(similar to the supplied video cable) to connect
the
COAXIAL DIGITAL AUDIO OUT
jack to a
coaxial input on your AV receiver.
2 Connect the analog AUDIO OUT L/R and
VIDEO OUT jacks on this player to a set of
analog audio and video inputs on your AV
receiver.
• You can use the SCART AV connector, or
the S-video or component video jacks to
connect to the AV receiver if you prefer.
S
VIDEO OUT
COMPONENT VIDEO OUT
AUDIO OUT
COAXIAL
OPTICAL
DIGITAL AUDIO OUT
VIDEO
OUT
PR
PB
Y
AV receiver
DIGITAL IN
(OPTICAL)
DIGITAL IN
(COAXIAL)
L
12
R
S
VIDEO OUT
COMPONENT VIDEO OUT
AUDIO OUT
COAXIAL
OPTICAL
DIGITAL AUDIO OUT
VIDEO
OUT
PR
PB
Y
L
12
R
AV receiver
AUDIO/
VIDEO IN
