02 Connections
Connections

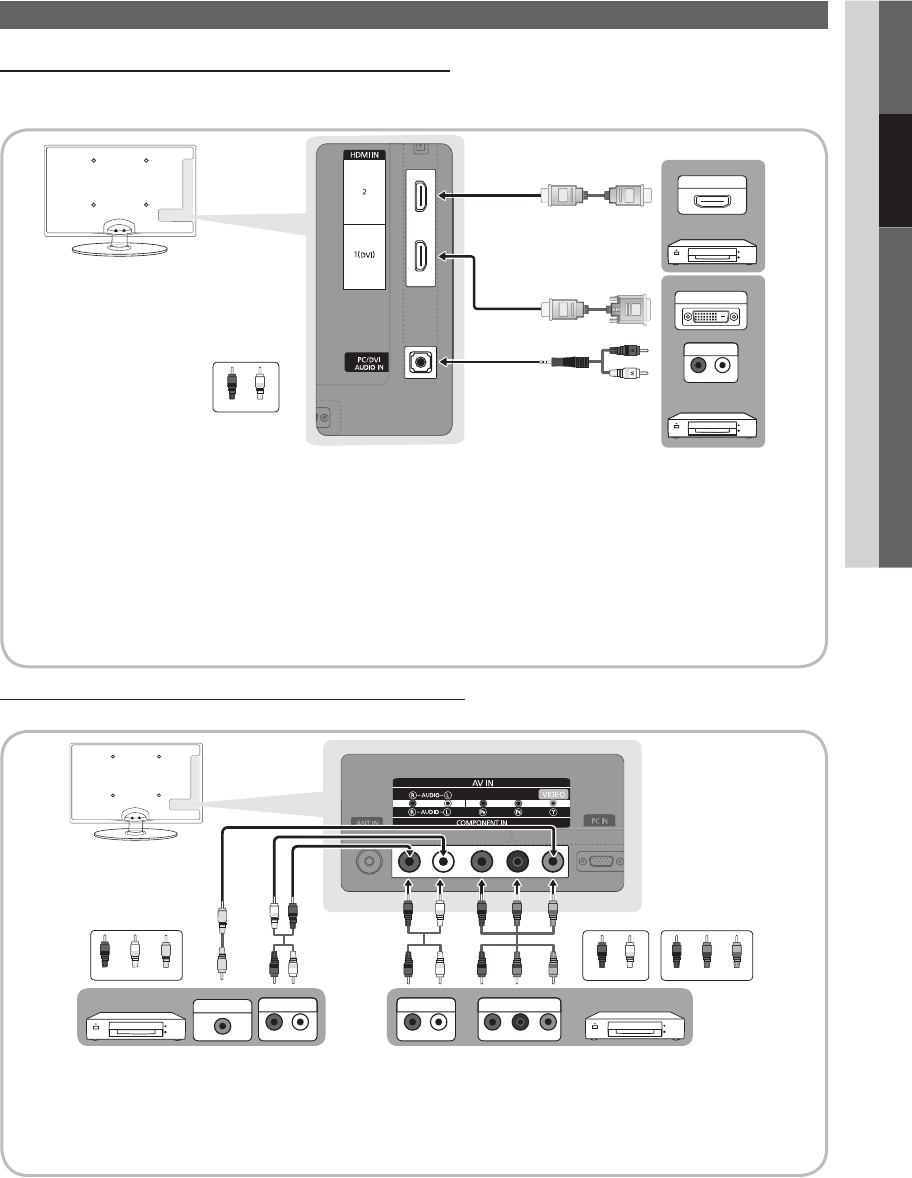

Connecting to an AV Device
Using an HDMI or HDMI/DVI cable: HD connection (up to 1080p)
We recommend using the HDMI connection for the best quality HD picture.
Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver
✎
HDMI IN 1(DVI), 2, PC/DVI AUDIO IN
x
When using an HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack for video. A DVD, Blu-ray
player, HD cable box, or HD STB satellite receiver may require a DVI-HDMI (DVI to HDMI) cable or DVI-HDMI (DVI
to HDMI) adapter. The PC/DVI AUDIO IN jack is required for audio.
x
Be sure to use an HDMI cable with a thickness of 14 mm or less.
x
The picture may not display normally (if at all) or the audio may not work if an external device that uses an older
version of HDMI mode is connected to the TV. If such a problem occurs, ask the manufacturer of the external
device about the HDMI version and, if out of date, request an upgrade.
x
B
e sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection error may occur.
Using a Component (up to 1080p) or Audio/Video (480i only) Cable
Available devices: Digital Audio System, Amplifier, Home Theater
✎
COMPONENT IN / AV IN: When connecting to AV IN, the color of the AV IN [Y/VIDEO] jack (green) will not
match the video cable (yellow).
✎
For better picture quality, the Component connection is recomended over the A/V connection.
✎
If the size of the cable mold part was an abnormal shape, the part may not be connected to the input port
properly.
R
G
B W R
WR R GB
Y
Y
W
R
W
R
AUDIO OUT
R-AUDIO-L
PR
PB Y
COMPONENT OUT
AUDIO OUT
R-AUDIO-L
VIDEO OUT
Y
W
R
R
G
BWR
Red RedRedWhite BlueWhiteYellow Green
HDMI OUT
DVI OUT
AUDIO OUT
R-AUDIO-L
WR
Device Device
Device
Red White
Device
