Universal Remote Control UR5U-8800L Universal Remote User Manual


  Open as PDF
of 2

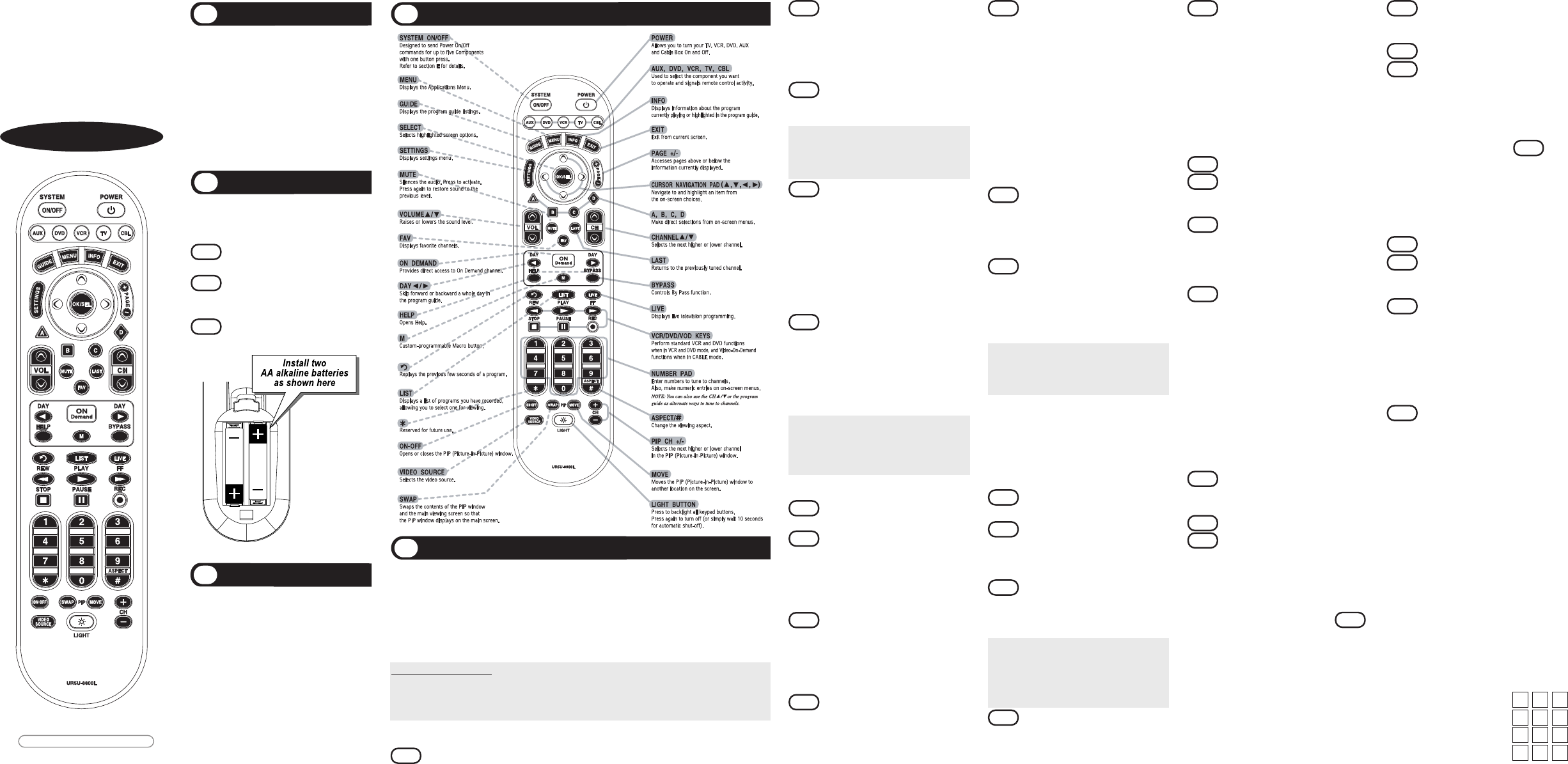

Button Functions
4
Programming the Remote Control
5
There are two ways you can program your
CLIKR
TM
-5
remote:
*
The Pre-Programmed 3-Digit Code Method
*
The Auto-Search Method
The Pre-Programmed Code Method allows you to setup all the buttons at once by entering 3-digit code
numbers that correspond to a particular Component’s manufacturer/brand, so it’s the fastest and easiest
of the two methods. (Code Tables are on the backside of this Instruction Sheet.) The Auto-Search Method
scans through all the codes in the remote control, one at a time.
IMPORTANT SETUP NOTE!
This pertains to all programming steps. When you are in setup mode, a component LED will light for 30
seconds.If you do not press a button within 30 seconds, the LED light will turn off and exit setup mode and
you will need to start over.
A. Pre-Programmed 3-Digit Code Method
STEP1
Turn on the Component you want to program (TV, VCR, DVD or AUX).
STEP2 Press the [COMPONENT] button (TV, VCR,
DVD or AUX) to be programmed and
[OK/SEL] button simultaneously for 3
seconds. The Component LED light will
turn on for 30 seconds indicating the unit
is ready to be programmed.
STEP3 Point the remote control toward the
Component and enter the 3-digit code
number assigned to your brand.
*Note : If the 3-digit code number you just entered is
correct, the Component will turn Off. If it did not
turn Off, continue entering code numbers listed
for that brand until the Component turns Off.
STEP4 After you’ve entered the correct code
number and the Component has turned Off,
press the [POWER] button to turn the
Component back On. Now it’s time to test
the VOLUME and MUTE buttons for the TV
(or PLAY and STOP buttons for VCR and
DVD) to make sure they all work. If any of
the functions do not work as they should,
repeat from STEP 3 using the next 3-digit
code number listed for that brand.
STEP5 Once you have found the correct 3-digit code,
save it by pressing the same [COMPONENT]
button one more time. The Component LED
light will blink twice to confirm that the code
was successfully stored.
Now, program the rest of your Components by
repeating STEPS 1-5.
*Note : If the Pre-Programmed Method did not
work, or if the Code Tables do not list your
Component brand, use the Auto-Search
Method as explained in Section B.
B. Auto-Search Method
STEP1 Turn on the Component you want to
program (TV, VCR, DVD or AUX).
STEP2 Press the [COMPONENT] button (TV, VCR,
DVD or AUX) to be programmed and
[OK/SEL] button simultaneously for 3
seconds. The Component LED light will
turn on for 30 seconds indicating the unit
is ready to be programmed.
STEP3 Point the remote toward the Component and
press the [CH] or [CH] button one step at
a time or keep it pressed. The remote will emit
a series of ON/OFF commands. Release the
[CH] or [CH] button as soon as the
Component turns Off.
STEP4
Test functions. (Same as for 3-Digit Code
Programming Method - Section A). If any of
the functions do not work as they should,
repeat from STEP 3 using [CH] or [CH]
buttons to find the correct code.
STEP5
Save the code. (Same as for 3-Digit Code
Programming Method - Section A).
Now, repeat the Auto-Search Method for those
Components you could not program earlier with the
Pre-Programmed Method.
C. Finding a Component Button’s
Setup Code Number
If you used the Auto-Search Method to program a
Component, you may not know what the correct code
number is. Here is a way for you to identify the code
number, so you can record it for future reference.
STEP1
Press the [COMPONENT] button (TV, VCR,
DVD or AUX) you want to verify and the
[OK/SEL] button simultaneously for 3 seconds.
The Component LED light will turn on for 30
seconds.
STEP2
Press the [INFO] button and count the number
of times the Component LED light blinks. This
number indicates the first digit of the code,
followed by the second and third, each
separated by a one second pause when the
LED will turn off.
*Note
: 10 blinks represents the number zero.
Example : One blink, (pause), eight blinks, ( pause)
and three blinks, indicates code number 183.
D. AUX Function: Programming a 5
th
Component
You can take advantage of the AUX function to program
a 5
th
Component such as a second TV, VCR, DVD or
Audio Component.
STEP1
Turn on the 5
th
Component you want to
program (TV, VCR, DVD or Audio).
STEP2
Press the [AUX] button and the [OK/SEL]
button simultaneously for 3 seconds.The
[AUX] Component LED will turn on for 30
seconds.
STEP3
Press the [COMPONENT] button you want to
setup. Point the remote control toward the
Component and enter the 3-digit code number
assigned to your brand.
*Note : If the 3-digit code number you just entered is
the correct number, the Component will turn
Off. If it did not turn Off, continue entering
code numbers listed for that brand until the
Component turns Off.
STEP4
Test functions. (Same as for 3-Digit Code
Programming Method - Section A). If any of
the functions do not work as they should, you
need to find a new code.
STEP5
Once you have found the correct 3-digit code,
save it by pressing the [AUX] button one more
time. The Component LED light will blink twice
to confirm the code was stored. Now when you
press the AUX button, all the buttons will work
with that 5
th
Component.
E. Programming the System On/Off Button
This allows you to program the System On/Off button so
it can send up to five power On/Off commands with one
button press.
STEP1
Press the [CBL] button.
STEP2
Press the [SYSTEM ON/OFF] button and the
[OK/SEL] button simultaneously for 3 seconds.
The [CBL] button will turn on for 30 seconds.
STEP3
Press the first [COMPONENT] button you want to
store in the [SYSTEM ON/OFF] button and then the
[POWER] button. Repeat this for other Components
until you have stored all the desired power
commands into the [SYSTEM ON/OFF] button.
STEP4
Press the [CH+] button to save the power
commands you stored. The [CBL] button will blink
twice to confirm the commands have been saved.
F. Programming Channel Control
You can program the channel controls (Channel Up,
Channel Down, Last and Numbers) from one Component to
operate in another Component mode. Default channel
control settings on the remote control are as follows:
CBL : CBL T V : CBL VCR : CBL
DVD : DVD AUX : AUX
If you wish to store the TV channel control in TV mode,
use the following steps.
STEP1
Press the [TV] button and the [OK/SEL] button
simultaneously for 3 seconds. The [TV] Component
LED will turn on for 30 seconds.
STEP2
Press the [VOL -] button.
STEP3
Press the [TV] button again.
The Component LED will blink twice to confirm
the programming.
To return to original state:
If you wish to restore the CABLE channel control in TV
mode, repeat the above steps but press [CBL] in
STEP3
.
G. Programming Volume Control
You can program the volume controls (Volume Up, Volume
Down and Mute) from one Component to operate in
another Component mode. Default volume control settings
on the remote control are as follows:
CBL : CBL T V :TV VCR : TV
DVD :TV AUX : AUX
If you wish to store the TV volume control in CBL
mode, use the following steps.
Universal Remote Control, Inc.
www.universalremote.com
OCE-0052C REV 02 (04/30/07)
UR5U-8800L
Operating Instructions For
CLIKR
™
-5
Cable Remote Control
The CLIKR
TM
-5 UR5U-8800 is designed
to operate the Scientific-Atlanta, Pioneer,
Pace Micro, Samsung and Motorola
digital set tops, plus the majority of TV,
VCR, DVD and AUDIO equipment on the
market as shown below.
CABLE : Cable Converters TV : Televisions
VCR : VCRs and TV/VCRs DVD : DVD Players
AUX : Audio Receivers and DVRs, etc.
Introduction
1
DEFAULT STATE:
Component Default: CABLE
Channel Default: CABLE channel and
numbers through the CABLE. You have the
option of controlling your CABLE channel and
numbers through the TV or VCR. Refer to
section F for programming steps.
Volume Default: CABLE volume and mute
through the CABLE. You have the option of
controlling your CABLE volume and mute
through the TV, VCR or DVD. Refer to section
G for programming steps.
Operations
3
Replacing Batteries
2
Before you program or operate the remote
control, you must install two new AA alkaline
batteries.
STEP1 Remove the battery compartment cover
on the back of your remote control.
STEP2 Check battery polarity carefully, and
install the batteries as shown in the
illustration below.
STEP3 Replace the battery compartment cover.
STEP1
Press the [CBL] button and the [OK/SEL] button
simultaneously for 3 seconds. The [CBL]
Component LED will turn on for 30 seconds.
STEP2
Press the [VOL +] button.
STEP3
Press the [TV] button.
The Component LED will blink twice to
confirm the programming.
To return to original state:
If you wish to restore the CBL volume control in CBL mode,
repeat the above steps but press [CBL] in
STEP3
.
H. Programming a ‘Macro’ button.
In CABLE mode, the M button can be programmed to act
as a ‘Macro’ . This allows you to program from one up to
three separate channels that can be accessed by simply
pressing the programmed Macro button.
STEP1
Press the [CBL] button to select the CBL mode.
STEP2
Press the [M] button and [OK/SEL] button
simultaneously for 3 seconds. The [CBL]
button will turn on for 30 seconds.
STEP3
Enter the 3 or 4-digit code for the channel you
want programmed first (for example, 007)
using the Number Pad, then press the [STOP]
button. Then enter the code for the next
channel (for example, 050), then press the
[STOP] button. Repeat this process for the
third channel. The [CBL] button will blink once
for each channel entered.
STEP4
Press the [CH+] button to store the channels
that were selected. The [CBL] button will blink
twice to confirm the storage of commands.
To access the programmed channels, press the [M]
button once. This will bring up the first channel. Press
once again and it will bring up the second channel.
Press again and it will bring up the third channel.
I. Low Battery Warning
When the batteries are low and need to be replaced
with fresh batteries, the Component LED lights will
blink 2 times in sequence whenever a [POWER]
button is pressed to turn on equipment.
J. Memory Lock System
This remote control is designed to retain programmed
memory for 10 years even after batteries are removed
from the remote control.
K. Record Your Component Set-up Codes
TV Set-up Code Number:
VCR Set-up Code Number:
DVD Set-up Code Number:
AUX Set-up Code Number:
