Technical Overview
• Product-ready device server platform based
on the AXIS ETRAX 100LX MCM 4+16 chip.
The product ships with a pre-installed Linux
operating system and pre-programmed
Ethernet address. Full source code is
available for all applications and drivers at
developer.axis.com
Ethernet Network Connection
• Primary Physical network connection on
10BaseT Ethernet or 100BaseTX Fast Ethernet
networks using RJ45 twisted pair cable
• Secondary Physical network connection on
10BaseT Ethernet or 100BaseTX Fast Ethernet,
but limited in speed to 12 MBit/s since it
is connected through an internal USB port.
Actual routing speed is 4.5 MBit between the
two interfaces
Serial Connection
• Two RS232 serial ports terminated with 9 pin
MALE D-SUB connectors, both ports support
RXD, TXD, RTS, CTS, DSR, DTR, RI (not on
COM1) and CD at baud rates up to 115200 bps
• One additional serial port is located on pin
headers on the board and may be used for
debugging
RS485/422 Terminal Block
• One RS485/422 serial port supported on a
single screw terminal block. Supports baud
rates up to 1843200 bps
Parallel port & General purpose I/O
• An onboard I/O port, located on pin headers,
can be used as either a standard parallel data
port, or as a general purpose I/O control port
USB 1.1 Port
• Compliant USB 1.1 (host) port for connection
to USB cameras, Barcode scanners, Bluetooth,
WiFi, etc.
• The port can provide +5.0 VDC, 500 mA to
the device
Application Flash-loading
• The customer’s Linux application can be flash
loaded to the Device Server Platform over the
network using FTP (File Transfer Protocol)
Hardware
• CPU: 32 bit RISC processor
(AXIS ETRAX 100LX MCM 4+16)
• Flash memory: 8 Mbytes (4.5 Mbytes available
for applications in default configuration).
• RAM: 32 Mbytes
Power Supply
• Power: 9-24 VAC (or DC), 9.6 VA, via
external power supply (included) or on
screw terminal block
• Power consumption typically between
2.8 VA and 3.2 VA. With load on USB Vbus,
between 5.0 VA and 7.2 VA
Operating Environment
• Temperature: +5°C to +50°C
• Humidity: 8-80% RHG, non-condensing
Product Warranty
• A one-year warranty is included
The specifications below are appropriate
to the AXIS 83+ Device Server
(supplied with aluminum casing) only
Mechanical Design
• A stable aluminum casing that can be
conveniently mounted on a wall
(mounting brackets are included)
Metrics
• Height: 41 mm
• Width: 140 mm
• Length: 118 mm
• Weight: 420 g
Product Identification
• Sticker label on the underside, which
identifies the unit as an AXIS 83+ and also
identifies the Ethernet address of the unit
Approvals*
• AXIS 83+ Device Server compliant with both
industrial and light industrial/commercial
EMC standards for both emission and
immunity
• Immunity Standards:
EN 55024:1998
EN 61000-6-2:2001
EN 61000-6-1:2001
• Emission Standards:
EN 55022:1998+A1 Class B
(CISPR 22:1997+A1, Class B)
FCC Part 15, Subpart B, Class A
FCC Part 15, Subpart B, Class B
EN 61000-3-2:2000
EN 61000-3-3:1995+A1
• Safety:
EN 60950, UL (US version).
*The approvals are made with the aluminum casing and cannot
be guaranteed when the PCB is not mounted in a similar box
More information: developer.axis.com
©2003 Axis Communications AB. The Axis Communications logotype is a registered trademark of Axis Communications AB.
All other company names and products are trademarks or registered trademarks of their respective companies. We reserve the right to
introduce modifications without notice

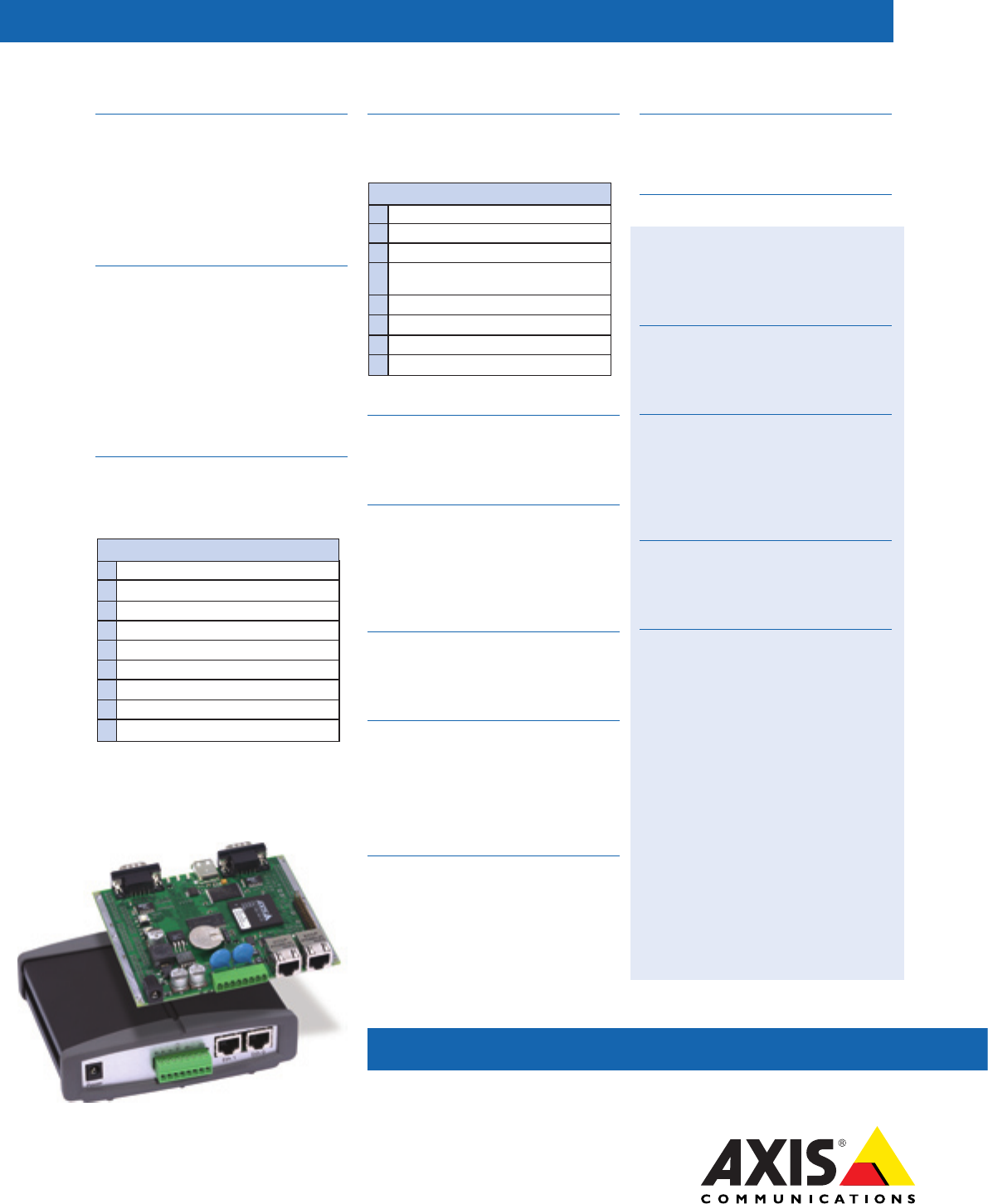

AXIS 82+ Developer Board / AXIS 83+ Device Server
24735/EN/R2/0505
CD Carrier detect (Input)
RxD Receive Data (Input)
TxD Transmit Data (Output)
DTR Data Terminal Ready (Output)
GND Ground
DSR Data Set Ready (Input)
RTS Request To Send (Output)
CTS Clear To Send (Input)
RI Ring Indicator (Input)
1
2
3
4
5
6
7
8
9
Pinout:
AC Power
AC Power
GND
RS422 GND
Connected to GND through 100 ohm resistor
RX/TX-A Use pin 5 and 6 for 2-wire RS-485
RX/TX-B Use pin 5 and 6 for 2-wire RS-485
TX-
TX+
1
2
3
4
5
6
7
8
Pinout:
