WIRING PRECAUTIONS
Read all wiring precautions. If you are not sure of the connections, contact your
authorized Clarion dealer.
1. Disconnect the negative (-) lead of the battery before making any power
connections.
2. When creating passage holes for the power wires, use grommets to elimi-
nate any sharp edges created during drilling. This will protect the wire from
being nicked and causing a short circuit.
3. When connecting the ground lead, fasten the ground lead (black) securely to
a clean metal plate on the vehicle.
NOTE: The VMA5092 monitor displays video images only. It does not provide
audio output. Refer to the owner's manual of the connected device for informa-
tion on audio output.
INST
ALLATION
The VMA5092 is a 5" monitor with an Infrared (IR) eye. It will accept a video
signal from any video source with composite video out. The IR eye will work
directly with any Clarion video source product with an IR Eye Input.
1. Install Mounting Bezel in vehicle headrest.
2. Once a location has been determined, connect the IR, Video RCAs and
power cables to the designated sources.
3. Feed the cables through the mounting location.
4. Plug the cable into the monitor's 8 Pin Din connector. Mount the monitor in
the designated mounting bezel.

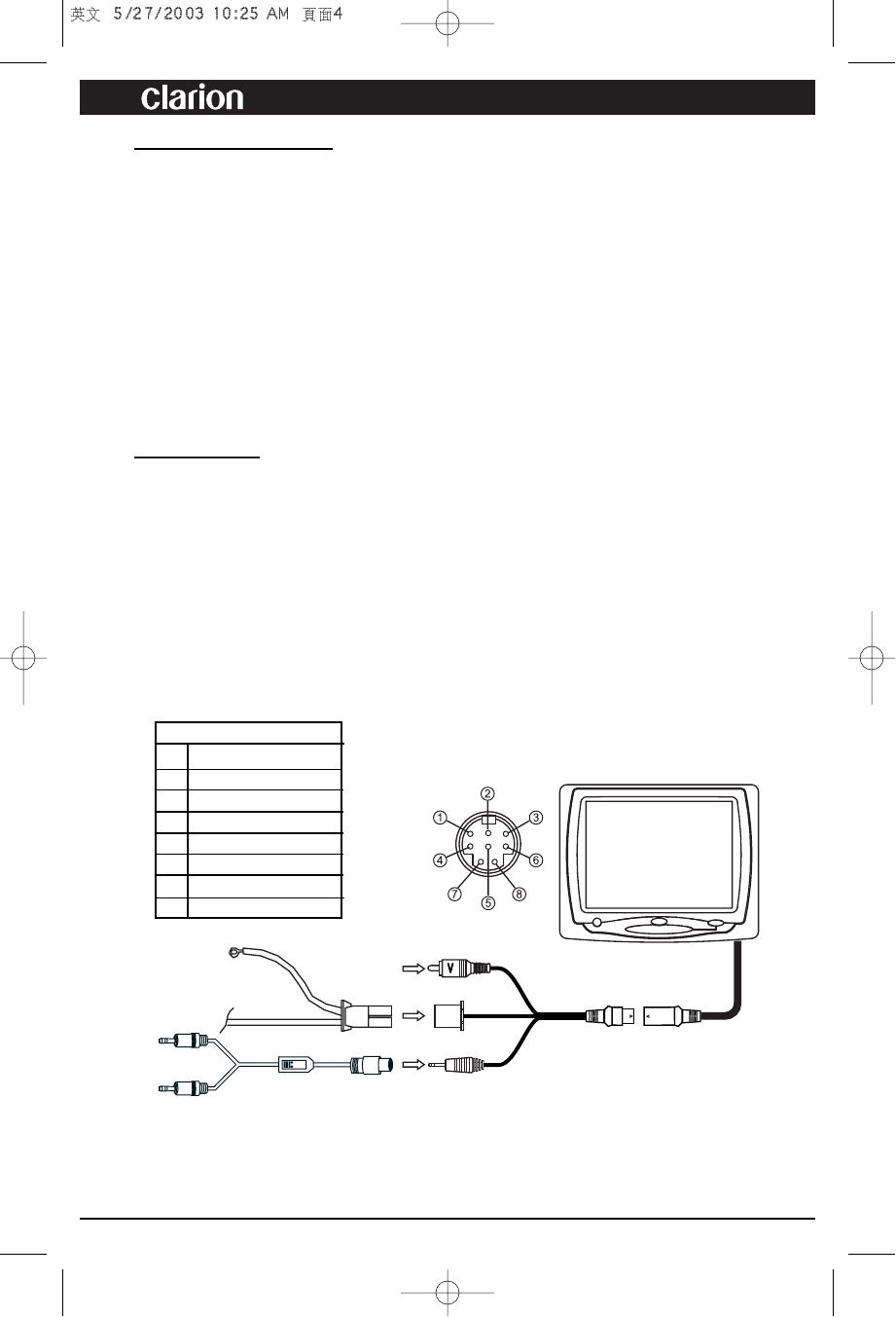

VMA5092
1 DC 12V
2 IR Out
3 Ground
4 Video Input
5 A/V Signal Ground
6 NC
7 NC
8 NC
8 Pin Mini DIN Connector
3
VIDEO
IN
50CM 2PIN POWER CABLE
3.5mm IR REMOTE CABLE
NAX9500E
VS718
IR REMOTE
OUT
