-9-
INSTALLATION
AV EQUIPMENT
It can be connected to the following appliances: VCR, multi disc player, DVD, camcorder, video game
or stereo system, etc.....
YPbPr can support these video formats:480i,576i,480p,576p,720p,1080i,1080p,
This TV provides one group of AV ,one group of S-Video,one group of YPbPr for convenient connection
to VCR,DVD or other video equipment. Please refer to the owner s manual of the equipment to
be connected as well.

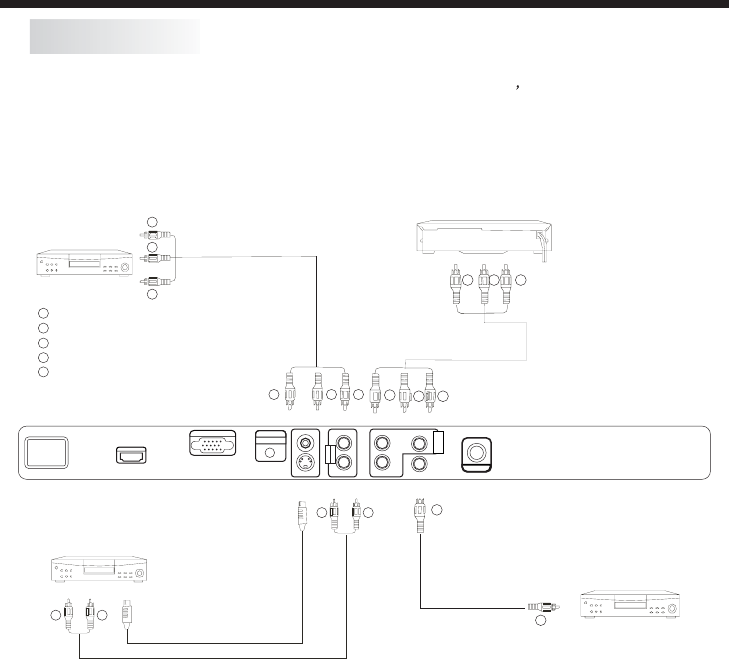

You can use the input terminals on TV set rear as follows.
To audio
outputswith
terminal
VIDEO EQUIPMENT
To audio outputs
with S-video
terminal
VIDEO EQUIPMENT
To S-VIDEO
output
Yellow (video)
White(audio L)
Red(audio R or Pr)
Y
W
R
R
W
Y
W R
output
To video
Blue(Pb)
Green(Y)
B
G
VIDEO EQUIPMENT withYPbPr
Y W R
W R
G
B
R
G
B
R
Y
From Coaxial SPDIF
output
VIDEO RECORDER
Y
with SPDIF Input
terminal
SPDIFOUTPUT
ANT
AV
S-VIDEO
L
R
AUDIO
INPUT
YPbPr
INPUT
Y
Pb
Pr
INPUT
VGAINPUT
100-240V~50/60Hz
AC-INPUT
HDMI
VGA AUDIO
HDMI cablenot included
