INSTALLATION
14
INSTALLATION

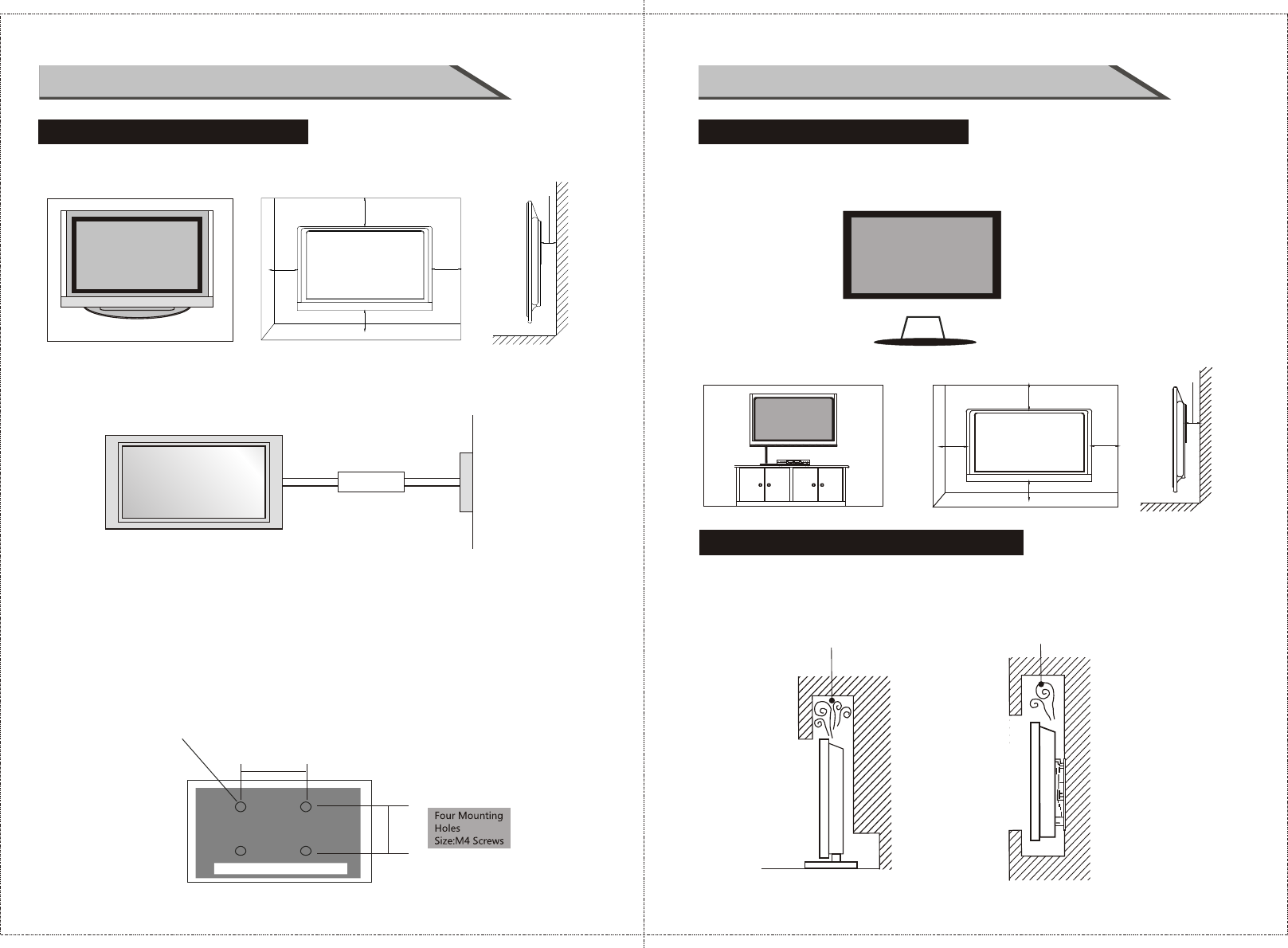

STANDARD INSTALLATION
(1) Keep the TV stand for may be future use.
(2) Don’t set the TV set on shelves, carpets, beds, or closets.
(3) Don’t cover the TV with curtain or paper.
(4) Leave ventilation space to avoid the following:
No good for ventilation No good for ventilation
(3)For proper ventilation, allow a clearance of 4" on each side from the wall.
b. Wall Mount: Horizontal installation
STANDARD INSTALLATION
4inches
4inches
4inches
4inches
(2) Remove the table stand of the TV when install the TV on a wall as follow:
NOTES OF WALL INSTALLATION
This is the default installation way of the TV.
4inches
4inches
4inches
4inches
4inches
Ensure that you connect the earth ground wire to prevent possible electric shock.
If grounding methods are not possible, have a qualified electrician install a
separate circuit breaker.
Do not try to ground the unit by connecting it to telephone wires, lightening rods or gas pipes.
a. Desktop Pedestal Installation
■The TV can be installed in various ways such as on a wall, or on a desktop etc.
■The TV is designed to be mounted horizontally.
Power
Supply
Short-Circuit
Breaker
(1) Secure the wall brackets with the bolts (not provided as parts of the product, must
purchase separately) on the wall. Match the height of the bracket that is mounted on
the wall. The wall bracket is of nomal dimension. Please see the position of the wall
brackets bolts as follow picture .The actual dimension of the wall brackts bolt should
according to the products.
The wall brackets bolt position
b. Wall Mount: Horizontal installation
100mm
100mm
