WE ARE GOING GREEN!
A copy of your User Guide is not provided
in the box but is available online.
Go to www.dynexproducts.com, click
Support & Service. Enter your model number
in the Search eld, then press Enter.
Click Support/Downloads.
Connecting a DVD or Blu-ray DVD player,
cable box, satellite receiver, or game station
Using HDMI (best)
Using component cables (better)
Using composite cables (good)
Connecting an antenna/cable wall jack
Connect a coaxial cable (not included) to the ANT/CABLE IN jack on the back of
your TV and to the Antenna/Cable wall jack.
Connecting a Home Theater System
Using Digital Optical audio
Using Analog audio
Front features
Installing the stand
1 Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 Align the stand to the TV and secure it to the stand column with the screws
provided.
Installing a wall-mount bracket
1 Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 Remove the screws that secure the base to the stand, then remove the base.
3 Remove the screws that secure the stand column, then remove the column.
4 Attach the wall-mount bracket to your TV using the mounting holes on the back
of your TV. See the instructions that came with the wall-mount bracket for
information about how to correctly hang your TV.
AC power cord
This apparatus is intended to
be supported by a UL Listed
wall mount bracket.
Warning
Remote control
and
2 AAA batteries
Composite
cable
TV stand and 4 screws (M5, 8 mm)
46" LCD TV 1080p

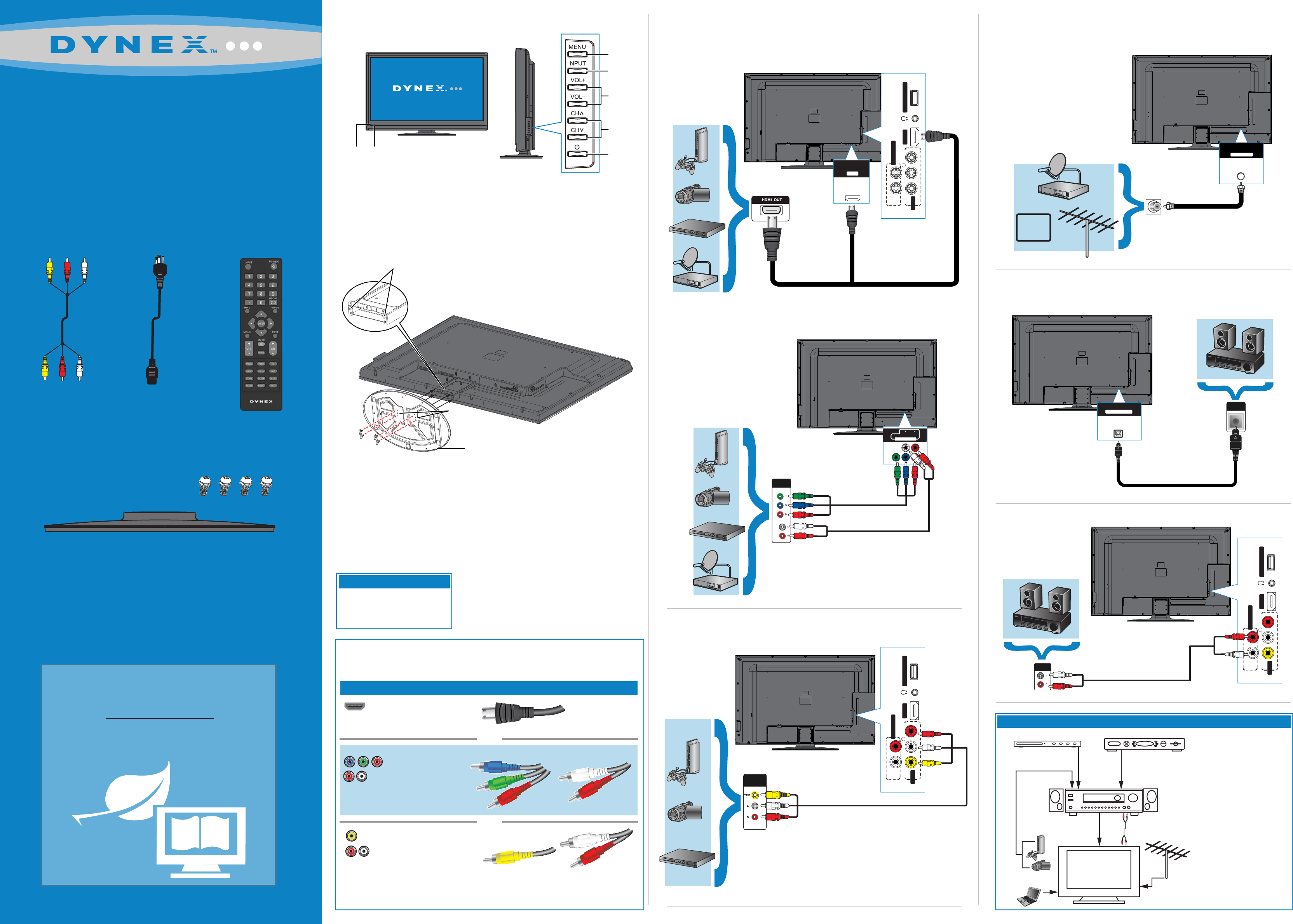

QUICK SETUP GUIDE
DX-46L261A12
Remote
control
sensor
Power
indicator
Composite video
and analog audio
Connection type Video quality Cable connector
HDMI video/audio
Best
Component video
and analog audio
Better
Good
OR
OR
You can use an HDMI jack to connect a DVI device to your TV. You need to attach an
HDMI-to-DVI adapter to the end of the HDMI cable that connects to the DVI device’s jack.
Identifying cables
Your TV has several connection types for connecting devices. For the best video quality,
connect a device to the best available connection.
Volume
+/-
Menu
Channel
▼/▲
Power
button
Input
Locators
Stand
M5 screws
Locating
grooves
Antenna or
cable TV
(no box)
Blu-ray player/DVD player/VCR
Cable or satellite TV box
AV receiver
Game console
or camera
Computer
Connecting a home theater system with multiple devices
We recommend that you connect
the AV receiver’s HDMI OUT jack
to your TV’s HDMI IN jack.
Audio cable
(optional)
OR
VIDEO
AV IN
AUDIOL
L
R
AUDIO
R
AUDIO OUT
HDMI 2
SERVICE PORT
HDMI 1
AUDIO/VIDEO
OUT
COMPONENT IN
Y P
B
P
R
L AUDIO R
VIDEO
AV IN
AUDIOL
L
R
AUDIO
R
AUDIO OUT
HDMI 2
SERVICE PORT
AUDIO/VIDEO
OUT
CABLE
ANT/CABLE IN
OPTICAL
AUDIO IN
DIGITAL OUTPUT
AUDIO IN
VIDEO
