Rev.123011-AS
www.elitescreens.com info@elitescreens.com 13

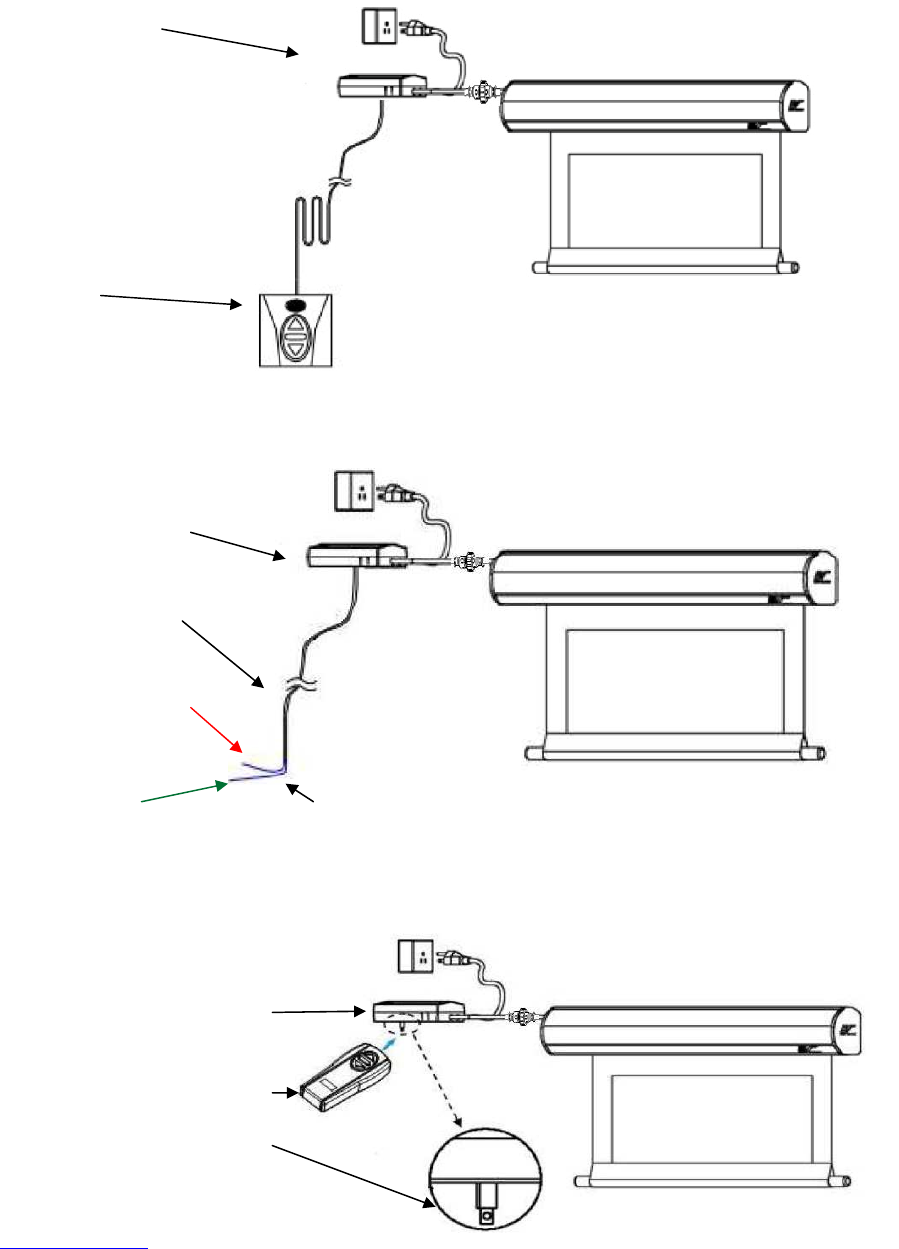

3 Way Wall Switch (C)
1. Connect the 3 Way Wall Switch (C) to the Wall Box (G) and mount on wall.
Wall Box (G)
3 Way Wall Switch
(C)
12 Volt Trigger (E)
1. Connect the 12 Volt Trigger (E) to the Wall Box (G) for set up to your projector.
Wall Box (G)
12 Volt Trigger (E)
Red Wire
DC12V
Green Wire
0V Connect to Projector
IR Eye Receiver (F)
1. Connect the IR Eye Receiver (F) to the Wall Box (G) for high wall or ceiling installations
Wall Box (G)
IR Remote (A)
IR Eye Receiver (F)
