8x8 Video Amplifier with Looped Satellite Installation Instructions
Installation 1. Use pliers to twist out three adjacent
module separator bars to make space for
the Video Amplifier in the module
panel. This Video Amplifier requires 4
module spaces.

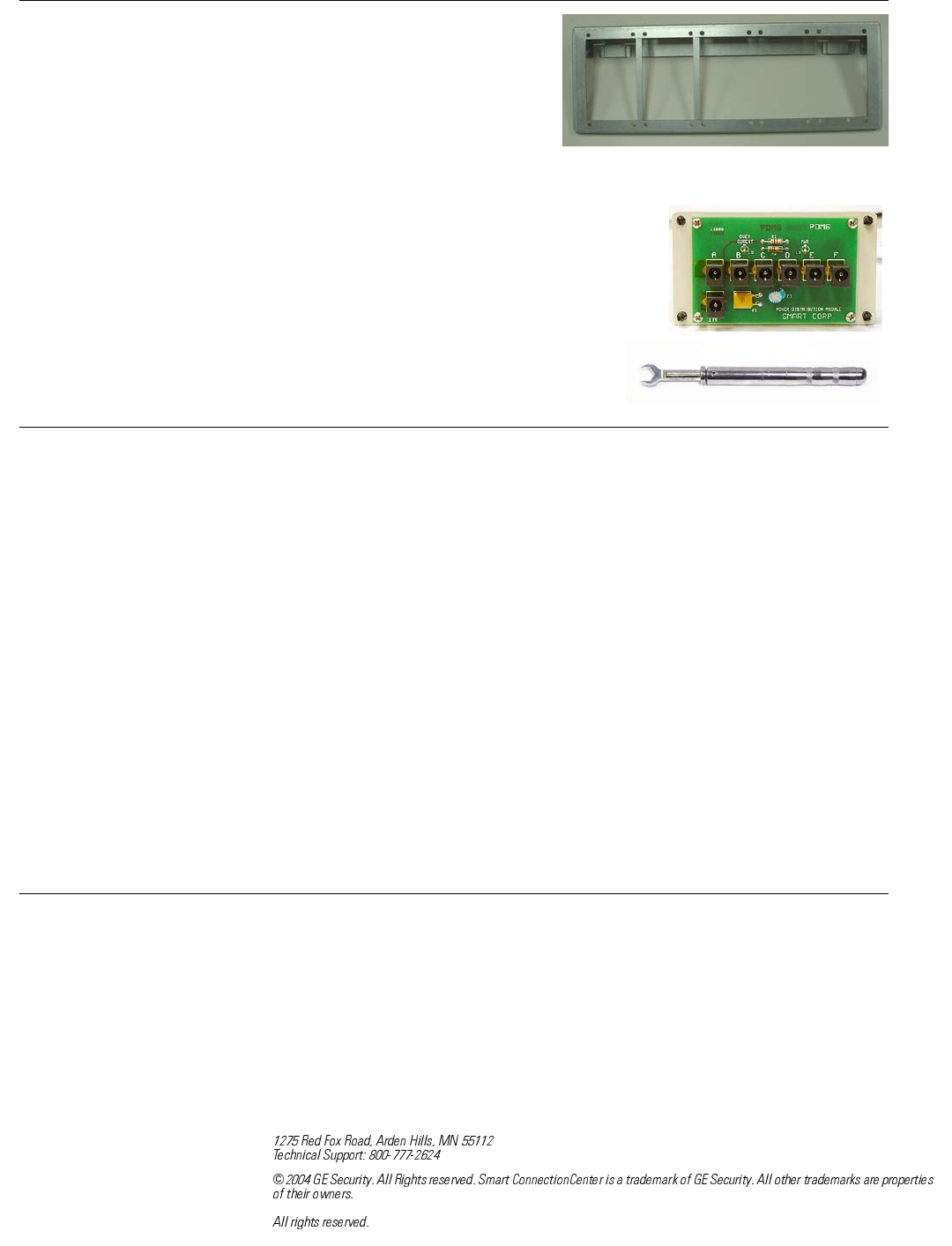

2. Mount the Module in the 5-Module
Tray.
Align the pushpins with the four mount-
ing holes.
Apply pressure to each of the 4 pushpins until they lock in place
3. Connect the 24" DC Power Cable (CC-PC0024) to the
back of Power Distribution Module (CC-PD1000)
using any available connection labeled A thru F.
4. Connect DC Power to the back of the Video Amplifier
using the other end of the 24" DC Power Cable.
5. Use the Coax Torque Wrench to secure RG-6
Cables to the Video Amplifier. For more
detailed instructions or instructions on how to
handle specific installations, refer to the Smart
ConnectionCenter System Installation Manual.
Specifications CATV Input:............................ 1
Modulated Input: .................... 8
Satellite (Looped) Input:......... 2
Combined Outputs:................. 8
Modem Outputs: ..................... 1
CATV Forward: ..................... 54-1000 MHz
CATV Reverse: ....................... 5-42 MHz
Modulators: ............................. 590-800 MHz
Satellite:.................................... 950-1450 MHz
CATV Input (100 channels): .. 10 dBmV max
Satellite Input:......................... N/A
Modulator/Auxiliary Input:... 10 dBmV min, 25 dBmV max per channel
CATV Modem Input:.............. 55 dBmV max
CATV Forward: ...................... +3 dB: ± 1.5 dB
CATV Reverse:........................ +1.0 dB: ± 1.5 dB
Modem: .................................... +1.0 dB: ± 1.5 dB
Broadband Satellite Loop:...... -0.5 dB: ± 0.4 dB
Modulator/Auxiliary:.............. -6.0 dB: ± 0.7 dB
Modulator-Modulator ports:.. 23 dB (590-800 MHz.)
Output - Output ports: ........... 25 dB (5-42 MHz.)
................................................... 23 dB (54-1000 MHz.)
Current Draw:......................... 260mA
Information For technical assistance or questions concerning this module, please use one of our follow-
ing support services:
Refer to the Smart ConnectionCenter System Installation Manual.
Contact technical support at 1-800-777-2624 or SCCtechsupport@ge.com.
For Sales e-mail us at SmartCC@GE.com.
Visit us on the web at www.GESecurity.com.
)
