ENGLISH
23
Chapter 2 Installing the LCD TV
HDMI 2 INHDMI 1 IN
AUDIO
L R
L R L R
L R
L
R
L R
L R
AUDIO
VGA IN
VIDEO2 IN
VIDEO AUDIO
S-VIDEO IN
S-VIDEO AUDIO
YPbPr1 IN
AUDIO OUT
STEREO
DIGITAL
OPTICAL
COAXIAL
Air/Cable
HDTV/TV
Y Pb Pr AUDIO
YPbPr2 IN
Y Pb Pr AUDIO
VHF/UHF IN
Rear of TV
Use a HDMI cable to connect the AV equipment’s HDMI output jack to the LCD TV’s HDMI IN
jacks.
Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
Press the button on the remote to turn on the LCD TV.
Press the Input button on the remote to select VIDEO6.

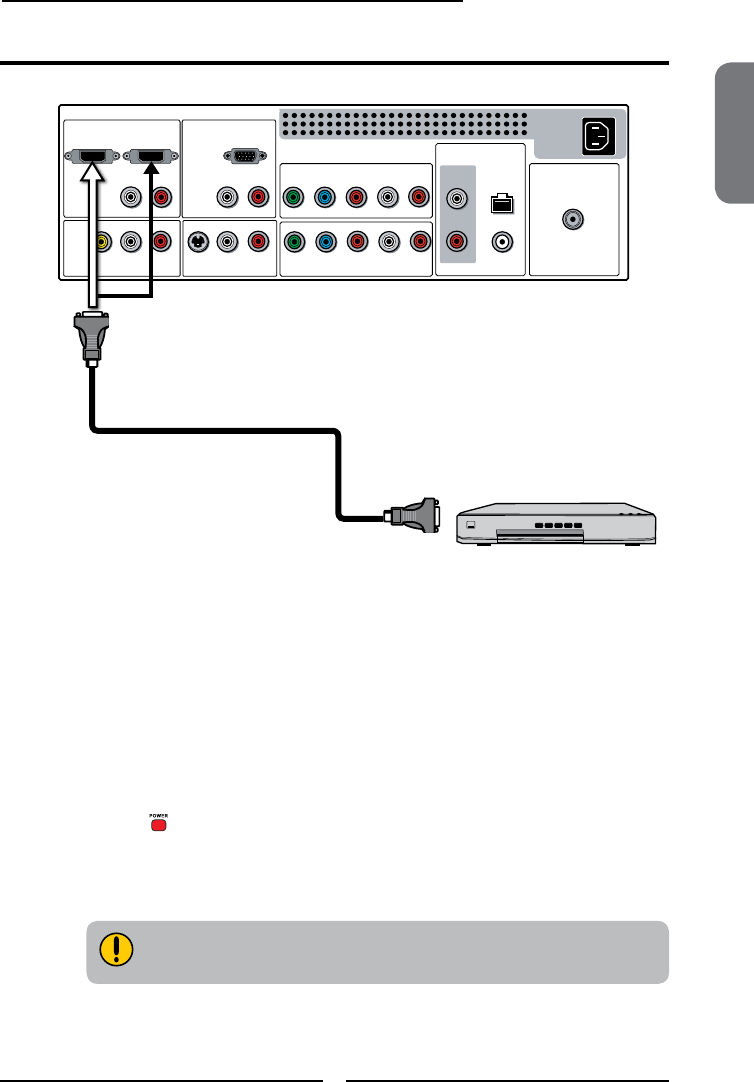

Connecting an AV Equipment with HDMI Connector
The HDMI connector provides both video and audio signals, it’s not
necessary to connect the audio cable.
AV EQUIPMENT
HDMI Cable
