HOOK-UP GUIDE
Display Unit Hook-Up (HTFS1000 only)
The display unit of HTFS1000 is detachable from the main unit. The display unit is connected to the main unit
via a 4-wire RJ11 phone cable.
Connect one end of the supplied phone-type cable to the corresponding jack on the detachable display unit. Connect the
other end of the cable to the jack on the main unit of the HTFS1000.
Note: The cable included is 6 feet in length. If a longer length is needed, use a 4-wire phone-type cable with RJ-11
connectors in the appropriate length. Not doing so may cause the PowerCenter not to function properly.
(4&3
).0546/,4!'%6#522%.453!'%!
'2/5.$
/+
02/4%#4)/.
/.
7)2).'
2%6%23%$
#,%!.0/7%2
/.
37)4#(%$
/.
6/,4!'%
!-0%2!'%
/./&&

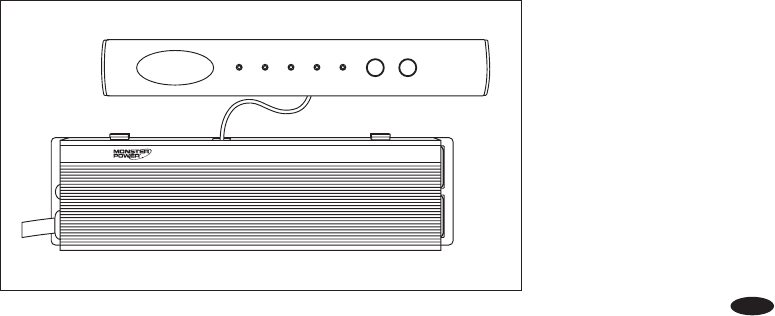

HTFS1000
(separated view)
