SPECIFICATIONS
• Controls up to 8 devices
• 44 function keys
• Learns up to 352 commands
• Records up to 44 macros with a maximum of 64 commands each
• Configurable punch-through
• Key illumination with programmable timeout
•Upgradable
• Contains pre-programmed library of NAD remote codes for the L73.
The NAD HTR L73 is ready to operate the L73 receiver right out of the box, but it is really eight remotes
in one. Each of the 8 Device Selector keys at the top of the handset can call up a new “page” of remote-
control codes to be transmitted by the remaining 44 keys. You may “teach” codes from any infrared-
remote-controlled component, regardless of brand, to any or all of these. Obviously, the most logical
system is that you teach the codes from your DVD player to the “DVD” Device Selector “page,” your
television’s codes to the “TV” “page,” and so on, but there is no required scheme: You may load any
commands to any key on any page (see “Learning Codes From Other Remotes,” below).
The HTR L73 is already preprogrammed with a full complement of commands for the L73 receiver on its
“AMP”, “TUNER” and “DVD” Device Selector page, and as well as with library commands to operate
most NAD-brand DVD, CD, or TAPE components on the corresponding Device Selector “pages.” These
default commands are permanent: Even if you teach the HTR L73 new commands to take their place, the
underlying library commands remain in place and can easily be recalled should you add an NAD
component to your system later (see “Delete Mode,” below).
NOTE
For use with the L73, it should not be necessary to re-program any keys on the HTR L73 “AMP” and
“DVD” page. However, in order for the HTR L73 to control your specific NAD-brand components you
may need to load one or more different code-libraries; see “Loading Code Libraries,” below.
CONTROLLING THE L73
The HTR L73 is divided into two main sections. Eight Device Selector keys at the top-“AMP”, “DVD,”
“TV,” and so on-set the handset’s remaining keys to a “page” of commands to control a particular
component. A Device Select key determines only what component the HTR L73 will command; it does
not perform any function on the receiver. All of the remaining keys are function keys that can “learn”
control codes from virtually any infrared remote controller, allowing you to teach the codes of your
equipment, regardless of brand, to the HTR L73.
However, the HTR L73 is already preprogrammed to operate the L73. All of the function keys on the
“AMP”, “TUNER” and “DVD” Device Selector “page” perform L73 functions. (The HTR L73 can also
command many other NAD components, from its “CD” and “TAPE” pages.)
It is important to note that certain HTR L73 keys perform different functions depending on the selected
Device Selector “page.” The colour of the Device Selector key-labelling corresponds to the labelling of the
function keys. Most centrally, the orange “AMP” Device Selector “page” corresponds to the orange
input-select labelling adjacent to the numeric keys: When the HTR L73’s “AMP” Device Selector page is
active, these keys select the receiver inputs. Similarly, the red “DVD” Device Selector “page” corresponds
to several red labels, the green “TV” page to green labels, and so on.

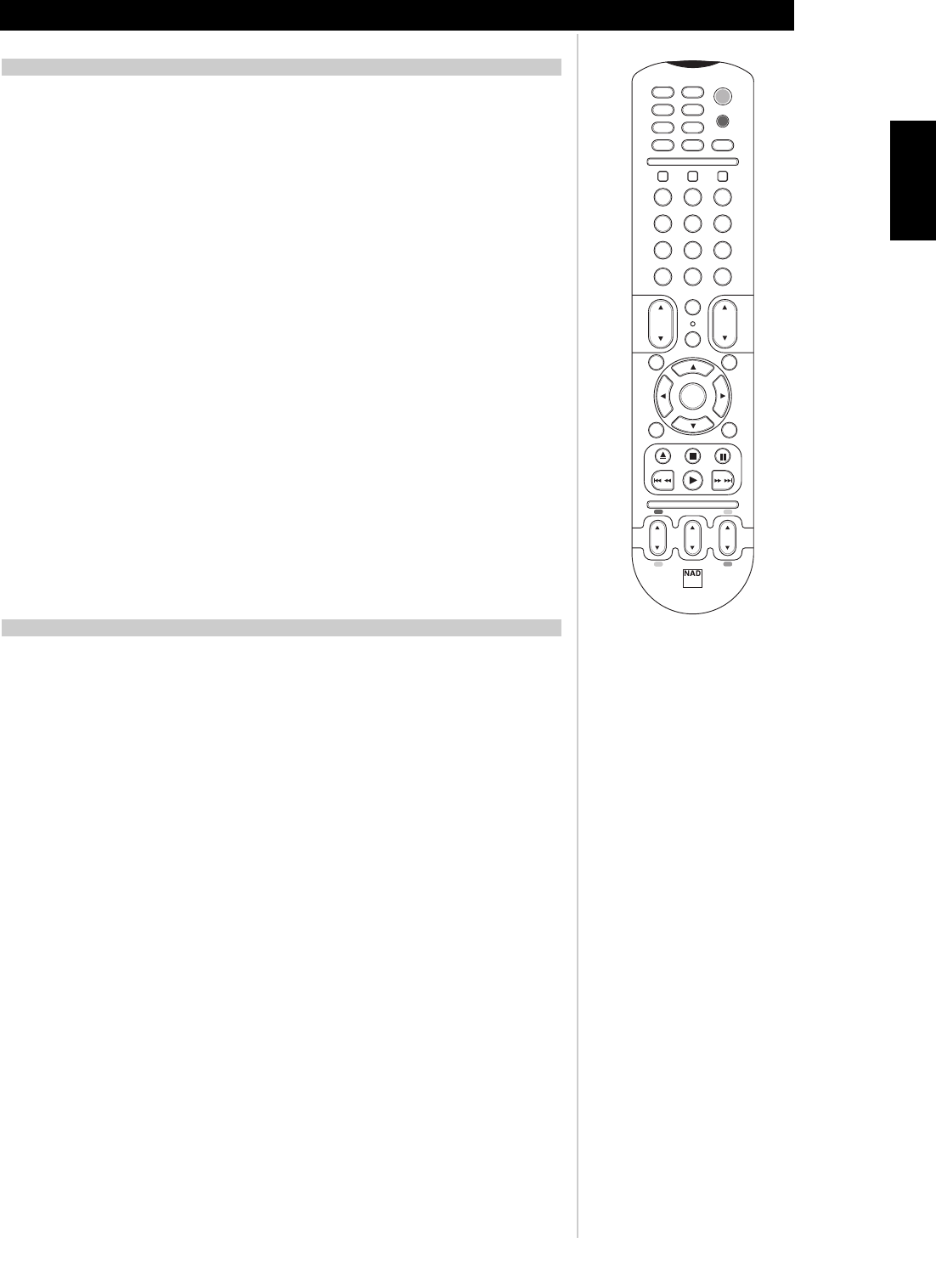

USING THE HTR L73 REMOTE CONTROL
Operation
