SPECIFICATIONS - NAD T550
Audio Performance.
Frequency Response
DVD audio 48Khz sampling 10Hz to 22Khz
Audio CD 10Hz to 20Khz
Output level 2Vrms
Signal to noise -105dB
THD 0.007%
Wow and Flutter Below measurable level < 0.001% peak
Channel separation CD 94dB
Dynamic range 103dB
Video Performance
Signal to noise 62dB
Signal system PAL/NTSC

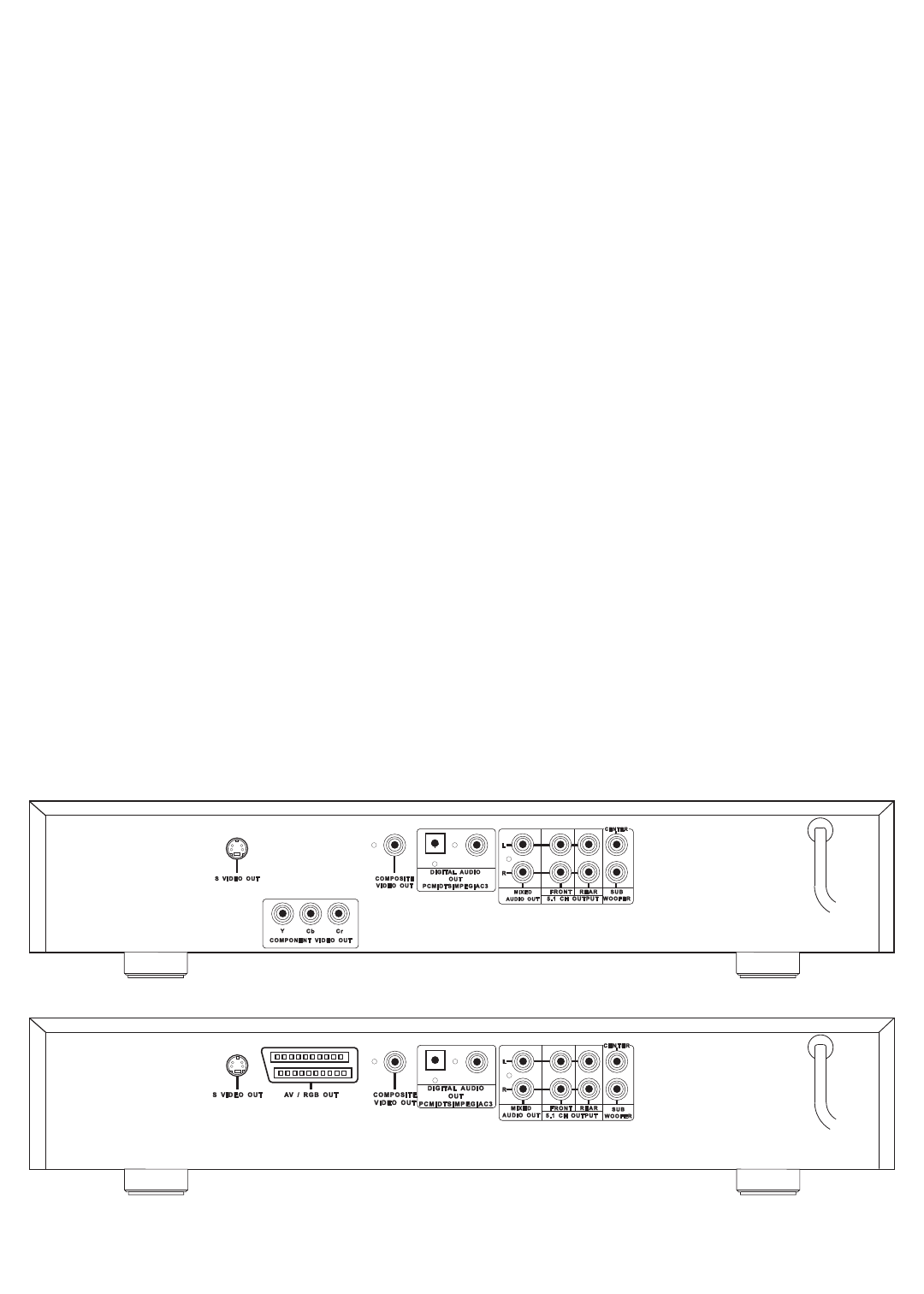

Rear Panel Jacks
Audio output 6 Analog L,R,C,LS,RS,Sub
2 Stereo (Down mix) outputs
Digital coaxial PCM,DTS,MPEG,AC3 0.5V p-p 75ohms
Digital Optical PCM, DTS,MPEG,AC3
Composite Video Output RCA x1
S-Video Output Y/C 4 pin x1
Component Video Output RCA x3 Y/Cb/Cr (120V version only)
SCART with RGB (230V version only)
General
Power requirements 230V/50Hz 22W 120V 60Hz 22W
Dimensions (W x H x D)
(excluding feet which are 15mm - 5/8") 435mm 80mm 300mm 17 1/8" x 3 1/8" x 11 13/16"
Net weight 3.8kg 8.4 lbs
Shipping weight 5.0kg 11.0 lbs
Burr-Brown is a registered trademark of the Burr-Brown Corporation.
NAD reserves the right to change specifications or design at any time without notice. All specifications are those in effect at time of printing.
Printed in Canada.
