Attaching Mounting Accessories
The monitor is designed for use with the VESA mounting
system.
Use WM-46UN-L2 or WM-46UN-P for X463UN and
WM-55UN-L or WM-55UN-P for X551UN.

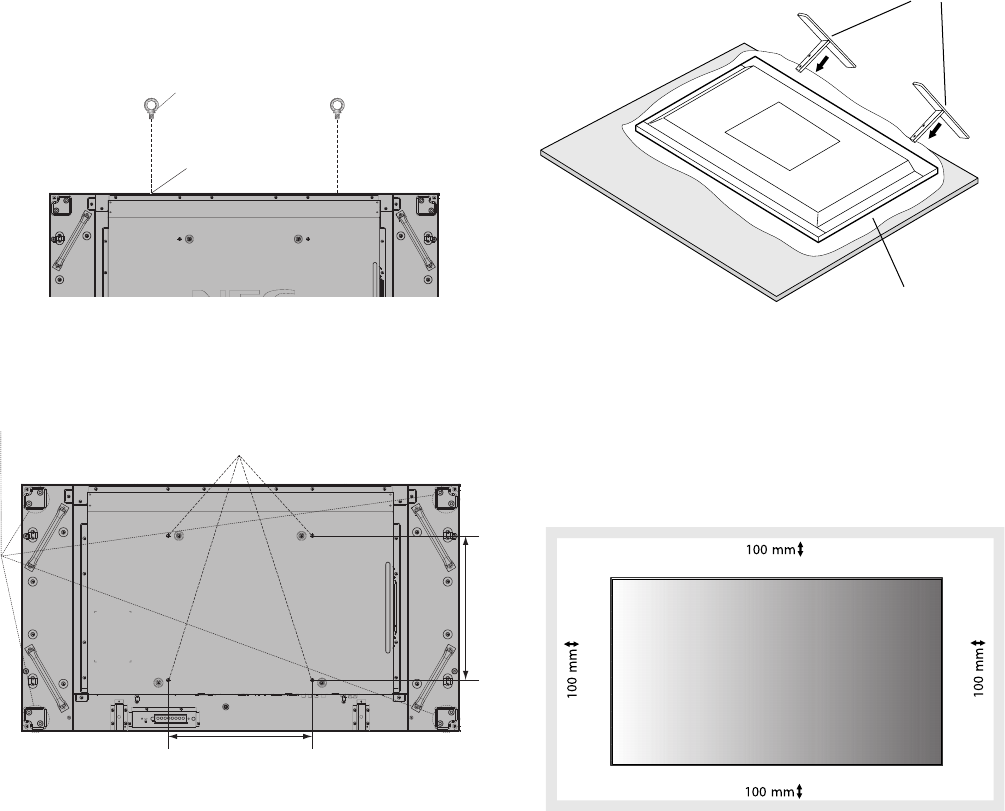

1. Attach eyebolts for mounting
This model is equipped with attachable eyebolts to aid in
mounting.
Screw the eyebolts into eyebolt holes as shown in the
picture.
Be sure eyebolts are secure.
In order to move the monitor into position, use a lifting
device attached to the eyebolts.
DO NOT mount the monitor using only the eyebolts.
Use an approved mounting accessory.
Eyebolt
Hole
Eyebolt
2. Attach Mounting Accessories
Be careful to avoid tipping monitor when attaching
accessories.
VESA Mounting Interface
300 mm (X463UN)
400 mm (X551UN)
300 mm (X463UN)
400 mm (X551UN)
For NEC mounting accessory only
Mounting accessories can be attached with the monitor in
the face down position. To avoid damaging the screen face,
place the protective sheet on the table underneath the LCD.
The protective sheet was wrapped around the LCD in the
original packaging. Make sure there is nothing on the table
that can damage the monitor.
When using mounting accessories other than NEC compliant
and approved, they must comply with the VESA-compatible
mounting method.
3. Installing and removing optional table
top stand
CAUTION: Installing and removing the stand must be done
by two or more people.
To install, follow those instructions included with the stand or
mounting apparatus. Use only those devices recommended
by the manufacturer.
NOTE: Use ONLY thumbscrews which are included in the
monitor.
When installing the LCD monitor stand, handle the unit with
care to avoid pinching your fi ngers.
Optional table top stand
Table
Protective Sheet
NOTE: Install the stand so the long end of the feet face
forward. Use the ST-4020 for the X463UN and the
ST-5220 for the X551UN.
4. Ventilation Requirements
When mounting in an enclosed space or recessed area,
leave adequate room between the monitor and the enclosure
to allow heat to disperse, as shown below.
Allow adequate ventilation or provide air conditioning around
the monitor, so that heat can properly dissipate away from
the unit and mounting apparatus; especially when you use
monitors in multiple screen.
