NEC Display Solutions of America, Inc.
P42XP10-BK Installation Guide
42” Plasma Monitor Rev 1.2
www.necdisplay.com
Control Codes
Function Code Data
POWER ON 01 30 2A 30 41 30 43 02 43 32 30 33 44 36 30 30 30 31 03 18 0D
OFF 01 30 2A 30 41 30 43 02 43 32 30 33 44 36 30 30 30 34 03 1D 0D
INPUT SWITCH RGB1 (15pin HD) 01 30 2A 30 45 30 41 02 30 30 36 30 30 30 30 31 03 18 0D
RGBHV 01 30 2A 30 45 30 41 02 30 30 36 30 30 30 30 32 03 1B 0D
DVI 01 30 2A 30 45 30 41 02 30 30 36 30 30 30 30 33 03 1A 0D
DVD3/HD3 (HDMI) 01 30 2A 30 45 30 41 02 30 30 36 30 30 30 30 34 03 1D 0D
VIDEO1 01 30 2A 30 45 30 41 02 30 30 36 30 30 30 30 35 03 1C 0D
VIDEO2 01 30 2A 30 45 30 41 02 30 30 36 30 30 30 30 36 03 1F 0D
S-Video 01 30 2A 30 45 30 41 02 30 30 36 30 30 30 30 37 03 1E 0D
DVD1/HD1 01 30 2A 30 45 30 41 02 30 30 36 30 30 30 30 43 03 6A 0D
DVD2/HD2 01 30 2A 30 45 30 41 02 30 30 36 30 30 30 30 44 03 6D 0D
AUDIO MUTE ON 01 30 2A 30 45 30 41 02 30 30 38 44 30 30 30 31 03 62 0D
OFF 01 30 2A 30 45 30 41 02 30 30 38 44 30 30 30 30 03 63 0D
PICTURE MODE BRIGHT 01 30 2A 30 45 30 41 02 30 32 31 41 30 30 30 33 03 6E 0D
STANDARD 01 30 2A 30 45 30 41 02 30 32 31 41 30 30 30 34 03 69 0D
CINEMA1 01 30 2A 30 45 30 41 02 30 32 31 41 30 30 30 35 03 68 0D
CINEMA2 01 30 2A 30 45 30 41 02 30 32 31 41 30 30 30 42 03 1F 0D
DEFAULT 01 30 2A 30 45 30 41 02 30 32 31 41 30 30 30 43 03 1E 0D
SCREEN MODE: NORMAL 01 30 2A 30 45 30 41 02 30 32 37 30 30 30 30 31 03 1B 0D
FULL 01 30 2A 30 45 30 41 02 30 32 37 30 30 30 30 32 03 18 0D
ZOOM 01 30 2A 30 45 30 41 02 30 32 37 30 30 30 30 33 03 19 0D
DYNAMIC 01 30 2A 30 45 30 41 02 30 32 37 30 30 30 30 34 03 1E 0D
2.35:1 01 30 2A 30 45 30 41 02 30 32 37 30 30 30 30 42 03 68 0D
14:9 01 30 2A 30 45 30 41 02 30 32 37 30 30 30 30 43 03 69 0D
UNDERSCAN 01 30 2A 30 45 30 41 02 30 32 37 30 30 30 30 44 03 6E 0D
TRUE 01 30 2A 30 45 30 41 02 30 32 37 30 30 30 30 45 03 6F 0D
AUTO PICTURE ON 01 30 2A 30 45 30 41 02 30 30 31 45 30 30 30 31 03 6A 0D
OFF 01 30 2A 30 45 30 41 02 30 30 31 45 30 30 30 30 03 6B 0D
FILM MODE ON 01 30 2A 30 45 30 41 02 30 32 32 33 30 30 30 32 03 1E 0D
OFF 01 30 2A 30 45 30 41 02 30 32 32 33 30 30 30 31 03 1D 0D
NOTE: Contact your NEC rep for codes not listed.
NOTE: Use a cross/reverse/null modem cable.

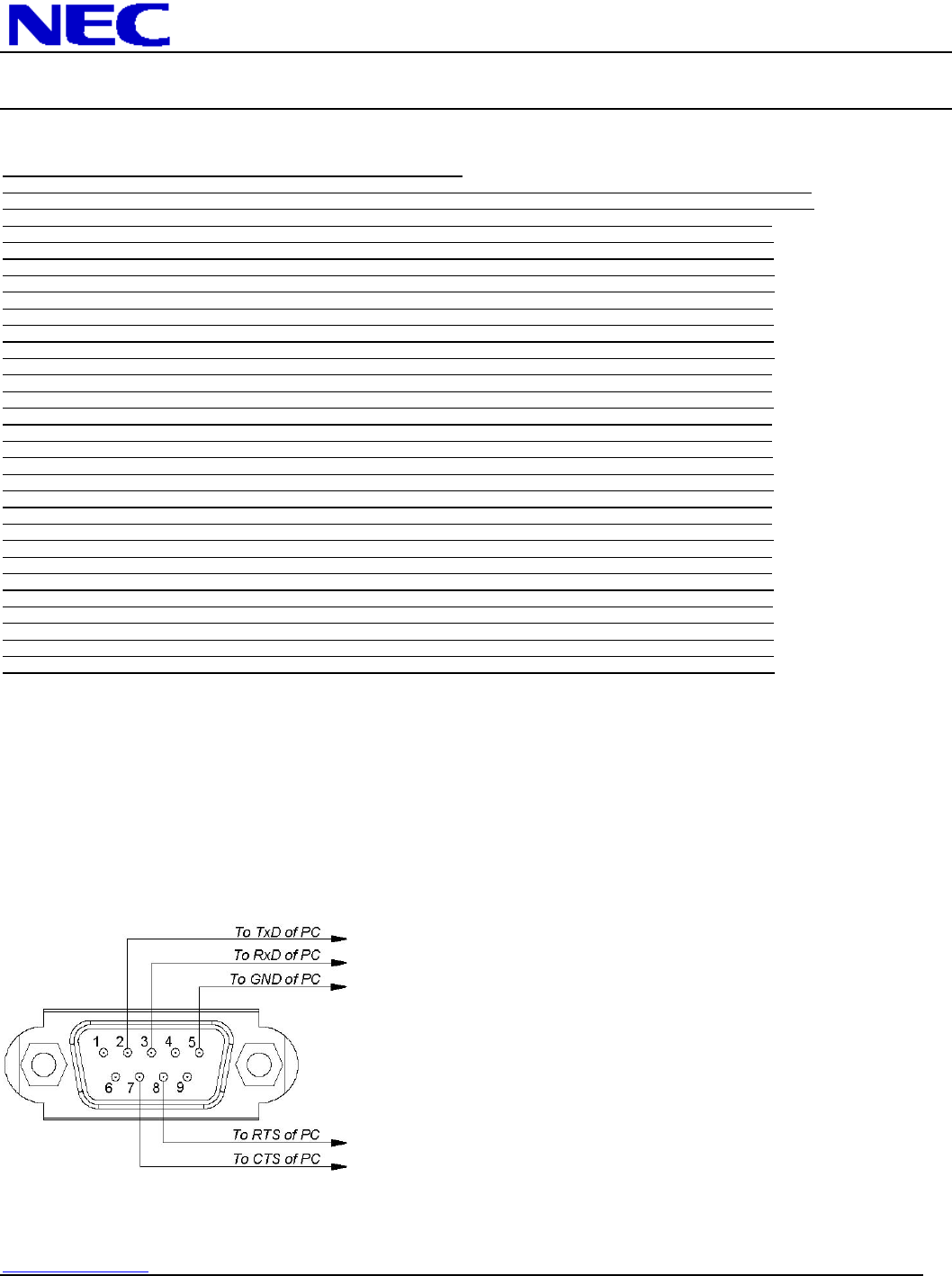

Cable Connection
Communication Protocol:
Interface: RS-232C Parity: None
Communication: Asynchronous Stop Bit: 1 bit
Baud Rate: 9600 bps Communication Code: ASCII
Data Length: 8 bits
PC Control Connector (D-Sub 9P)
NOTE: If so desired, jumper “Request to send” and “Clear to Send” together on both ends of the cable to simplify cable connection.
These connections are not required. The only connections required are pins 2 (RxD), 3 (TxD) and 5 (GND).
P42XP10-BK Page 10 of 10
