GENERAL SPECIFICATIONS
Television system: NTSC-M
TV Standard
Closed Caption
System: §15.119/FCC
Channel coverage
VHF: 2 ~ 13
UHF: 14 ~ 69
CATV: 2 ~ 13, A ~ W,
W+1 ~ W+84,
A-5 ~ A-1, 5A
Tuning System: 181 channel
frequency synthesized
tuning system
Channel access: Direct access keyboard,
programmable
scan and up/down
Terminals
Antenna input: VHF/UHF/CATV
75 ohm unbalanced
(F-type)
S-Video input: Mini DIN 4-pin jack
Video input: RCA connector x 1
Audio input: RCA connector x 4
Component video input:
One pin jack (Y), 1Vpp (75 ohm)
Two pin jacks (Pr)/(Pb), 700mVpp (75 ohm)
Headphone: 1/8" stereo (3.5mm)
Stereo Sound System
2 speakers
2 ways AV input
ELECTRICAL SPECIFICATIONS
Sound output: 1W, 8 ohm x 2
OTHER SPECIFICATIONS
Remote control: Digital encoded
infrared light system
Operating
temperature: 5°C to 40°C
(41°F~104°F)
Power requirements: AC120V, 60Hz
Power consumption
(Maximum): 57W
LCD: 20"
Dimensions (H x W x D):
With Tilt Stand
19-3/16" x 25-9/16" x 10-1/2"
(488mm x 650mm x 266mm)
Weight:
With Tilt Stand: 15.4 lbs. (7.0kg)
•Designs and specifications are subject to
change without notice and without our
legal obligation.
•If there is a discrepancy between languages,
the default language will be English.
SPECIFICATIONS

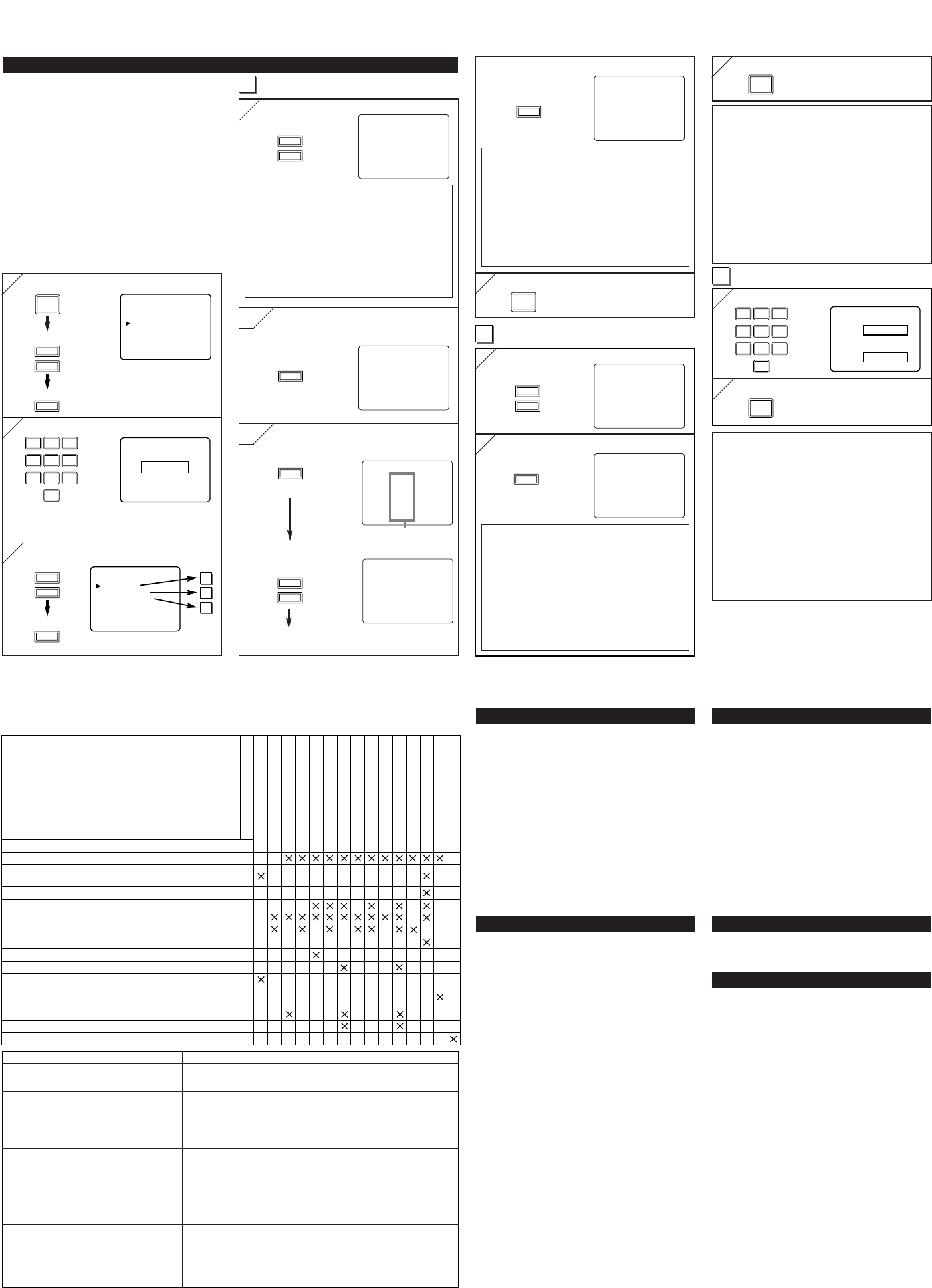

OPTIONAL SETTINGS (Continued)
MAINTENANCETROUBLESHOOTING GUIDE
Sometimes a performance problem can be easily solved by checking seemingly apparent but often over-
looked possibilities. Before arranging for service, check these items. It could save your time and money.
QUICK SERVICE CHECK LIST
PROBLEM
POSSIBLE REMEDY
Try a new channel, if OK, then possible station trouble.
Is TV plugged in?
Power at outlet?
Is TV’s power on?
Is antenna or cable connected to terminal on the back of the set?
If outside antenna is being used, check for broken wire or loose connection.
Check for local interference.
Turn off the TV and then turn it on after about a minute.
Adjust COLOR control.
Adjust CONTRAST & BRIGHT control.
Check batteries in remote control.
Move the TV away from the nearby appliances which generate a magnetic field.
Turn off using [POWER], then turn it on again 30 minutes later or so.
Temperature around is too low.
Life of the Back Light is approximately 50,000 hours. Ask the Service Center to replace.
It is quality of the LCD Panel.
Remote Control Doesn’t Work
Bars On Screen
Picture Distorted
Picture Rolls Vertically
No Color
Poor Reception on Some Channels
Weak Picture
Lines or Streaks in Picture
Ghosts in picture
Picture Blurred
Sound OK, Picture Poor
Picture OK, Sound Poor
No Picture or Sound
Different color marks on screen
Black or Luminous point on Screen
Closed Caption Problem Possible Remedy
Misspelled captions are shown.
Text is not shown in its entirety
or there is a delay of what is being said.
Captions are scrambled with white boxes
on the TV screen.
No captions are displayed in a program
which must contain closed caption.
No captions are displayed when playing a
prerecorded videotape with closed caption.
The TV screen shows a black box.
Spelling errors may pass through uncorrected by the closed caption-
ing production company in a live broadcast.
Captions that are delayed a few seconds behind the actual dialogue
are common for live broadcasts. Most captioning production compa-
nies can display a dialogue to a maximum of 220 words per minute.
If a dialogue exceeds that rate, selective editing is used to insure that
the captions remain up-to-date with the current TV screen dialogue.
Interference caused by building, power lines, thunderstorms, etc.
may cause scrambled or incomplete captions to appear.
Broadcasters may use a time compression process to the actual pro-
gram so that additional advertising time can be given. In this case,
captions will be lost since the decoder cannot read the compressed
information.
The videotape may be either an illegal copy or the tape duplicating
company may accidentally have left out the captioning signals dur-
ing the copying process.
You are in TEXT mode. Select [CAPTION1], [CAPTION2] or
[OFF].
CABINET CLEANING
●
Wipe the front panel and other exterior
surfaces of the TV with a soft cloth
immersed in lukewarm water and wrung dry.
●
Never use a solvent or alcohol. Do not spray
insecticide liquid near the TV. Such
chemicals may cause damage and
discoloration to the exposed surfaces.
PICTURE SCREEN CLEANING
If the liquid crystal display panel should
require cleaning, wipe it with a cotton or soft
cloth. Before cleaning the picture screen,
disconnect the power cord.
SUPPLIED ACCESSORIES
●
Owner’s Manual
(1EMN20274)
●
Remote control unit
(NE900UD)
●
Batteries
(“AAA” x 2)
1
1
MENU
To exit the menu
Notes (for TV RATING and MPAA RATING):
●
You cannot access the setup menu when the
“PROTECTED PROGRAM by ...” message
appears. Move to an unblocked channel
before you hit [MENU].
●
When you select a rating and set it to
[BLOCK], the higher ratings will be blocked
automatically. The lower ratings will be
available for viewing.
●
When you set the lowest rating to [VIEW],
all other ratings will automatically be avail-
able for viewing.
V-CHIP SET UP
To exit the menu
[TV RATING SET UP]
4
4
Select a rating
<Selection> <Rating Category Explanations>
• TV-Y : Appropriate for all children
• TV-Y7 : Appropriate for children seven
and older
• TV-G : General Audience
• TV-PG : Parental Guidance suggested
• TV-14 : Unsuitable for children under
14
• TV-MA : Mature audience only
5-1
5-1
* Rating with no sub categories
Set to [BLOCK] or [VIEW]
* Rating with sub categories
Select a rating
Set to [BLOCK] or [VIEW]
This enables parents to prevent their children
from watching inappropriate material on TV.
● The limitation is not available for news,
sports programs, unedited movies on premi-
um cable channels and Emergency
Broadcast System signals.
● When you try to access to a program which
is blocked, “PROTECTED PROGRAM by
...” message appears on the TV screen.
● Programming may be rated by the Motion
Picture Association of America (MPAA) or
according to the Television Parental
Guidelines. In order to block any inappro-
priate programming, set your limits in both
MPAA RATING and TV RATING.
MENU
o
p
CH
- TV SET UP -
CHANNEL SET UP
V-CHIP SET UP
LANGUAGE [ENGLISH]
CAPTION [OFF]
TV SOUND [MAIN]
BACK LIGHT [BRIGHT]
SLEEP [0] MINUTE
m
VOL
Select “V-CHIP SET UP”
<Selection> <Rating Category Explanations>
• TV-Y7
FV : Fantasy Violence
• TV-PG / TV-14 / TV-MA :
D : Suggestive Dialog
(TV-PG, TV-14 only)
L: Coarse Language
S : Sexual Situation
V: Violence
6
6
6
6
2 times
o
p
CH
m
VOL
- V-CHIP SET UP -
TV RATING
CHANGE CODE
MPAA RATING
Select a feature to set up
3
3
5-2
5-2
o
p
CH
m
VOL
m
VOL
o
p
CH
m
VOL
MENU
B TV-Y [VIEW]
TV-Y7 ( ) [VIEW]
TV-G [VIEW]
TV-PG( ) [VIEW]
TV-14 ( ) [VIEW]
TV-MA( ) [VIEW
]
TV-Y [VIEW]
TV-Y7 ( ) [VIEW]
B TV-G [BLOCK]
TV-PG(DLSV) [BLOCK]
TV-14 (DLSV) [BLOCK]
TV-MA( LSV) [BLOCK
]
TV-Y [VIEW]
TV-Y7 ( ) [VIEW]
TV-G [VIEW]
B TV-PG( ) [VIEW]
TV-14 ( ) [VIEW]
TV-MA( ) [VIEW]
Sub categories
The LCD panel is manufactured to provide many years of useful life. Occasionally a few non active
pixels may appear as a tiny spec of color. This is not to be considered a defect in the LCD screen.
TV-PG [BLOCK]
B D [BLOCK]
L [BLOCK]
S [BLOCK]
V [BLOCK]
TV-PG [BLOCK]
B D[VIEW]
L [BLOCK]
S [BLOCK]
V [BLOCK]
123
456
789
0
2
2
If you have not set up your personal access
code, enter 0000 (default access code).
ACCESS CODE
_ _ _ _
Enter 4-digit code
4
4
[CHANGING THE ACCESS CODE]
5
5
NEW CODE
CONFIRM CODE
[[[[
_ _ _ _
123
456
789
0
Notes:
●
Make sure you enter exactly the same new
code in the “CONFIRM CODE” space as
one in the “NEW CODE” space. If they are
differrent, the “NEW CODE” space is
cleared for redoing.
●
Your personal access code will be erased
and will return to the default (0000) when a
power failure occurs or when you turn off
the power using a wall switch. If you have
forgotten the code, unplug the power cord
for 10 seconds to restore the access code to
0000.
Enter 4-digit code
MENU
To exit the menu
A
B
A
B
C
C
4
4
[MPAA RATING SET UP]
Select a rating
repeatedly
5
5
Set to [BLOCK] or [VIEW]
<Selection> <Rating Category Explanations>
• G : General Audience
• PG : Parental Guidance suggested
• PG-13 : Unsuitable for children under
13
• R : Restricted; under 17 requires
accompanying parent or adult
guardian
• NC-17 : No one under 17 admitted
• X : Mature audience only
o
p
CH
m
VOL
B G[VIEW]
PG [VIEW]
PG-13 [VIEW]
R[VIEW]
NC-17 [VIEW]
X[VIEW]
G[VIEW]
PG [VIEW]
PG-13 [VIEW]
B R [BLOCK]
NC-17 [BLOCK]
X [BLOCK]
