EN
1L25
DVD/VCR VCR
AUDIO OUTAUDIO IN
VIDEO OUTVIDEO IN
S-VIDEO
OUT
COMPONENT
VIDEO OUT
AUDIO
OUT
DVD
Y
Cb L
Cr R
L
ANT-IN
ANT-OUT
R
L
R
DIGITAL
AUDIO OUT
COAXIAL
A/V-compatible
or
wide screen TV
To COMPONENT VIDEO
INPUT jacks
To COMPONENT VIDEO
OUT jacks
To Right (red) and Left (white)
AUDIO INPUT jacks
To Right (red) and Left (white)
AUDIO OUTPUT jacks
FOR TVs WITH
COMPONENT VIDEO IN JACKS
Use a component video cable (commercially available) in place of the yellow DVD/VCR video cable and S-
VIDEO jack to enjoy higher quality pictures.
The component video connection only supplies video (picture) in the DVD mode of the DVD/VCR COMBI-
NATION UNIT. Therefore, in order to use the VCR features or view TV channels at the DVD/VCR COMBI-
NATION UNIT, you still need to either connect the RF coaxial cable between the ANT-OUT jack of the
DVD/VCR COMBINATION UNIT and the TV’s Antenna In jack, or connect the yellow VCR video cable as
described earlier (Fig. 1). To connect the supplied RF cable, see page 13.
CONNECTING TO A STEREO AMPLIFIER EQUIPPED WITH
DIGITAL INPUT JACKS SUCH AS MD DECK OR DAT DECK
Use an audio coaxial digital cable (commercially available) for the audio connections.
Connecting to an amplifier equipped with digital input jacks such as MD Deck or DAT Deck.
DVD/VCR VCR
AUDIO OUTAUDIO IN
VIDEO OUTVIDEO IN
S-VIDEO
OUT
COMPONENT
VIDEO OUT
AUDIO
OUT
DVD
Y
Cb L
Cr R
L
ANT-IN
ANT-OUT
R
L
R
DIGITAL
AUDIO OUT
COAXIAL
To COAXIAL DIGITAL AUDIO INPUT jack
To COAXIAL DIGITAL
AUDIO OUT jack
(Stereo Receiver)
Amplifier equipped with digital
input jacks, MD deck,
DAT deck, etc.
Notes
¡The audio source on a disc in the 5.1 channel Dolby Digital surround format cannot be recorded as digital
sound by an MD or DAT deck.
¡Set DOLBY DIGITAL to OFF for audio output in the setup mode. Playing a DVD disc using incorrect set-
tings may generate noise distortion, and may also damage the speakers. (See page 29 to set DOLBY DIGITAL
to OFF.)
[Fig. 4]
FOR TVs WITH S-VIDEO INPUT JACK
Use an S-Video cable (commercially available) in place of the yellow video cable to enjoy higher quality pic-
tures.
The S-Video connection only supplies video (picture) in the DVD mode of the DVD/VCR COMBINATION
UNIT. Therefore, in order to use the VCR features or view TV channels on the DVD/VCR COMBINATION
UNIT, you still need to either connect the RF cable between the ANT-OUT jack of the DVD/VCR COMBINA-
TION UNIT and the TV’s Antenna In jack, or connect the yellow video cable as described earlier (Fig.1). To
connect the supplied RF cable, see page 13.

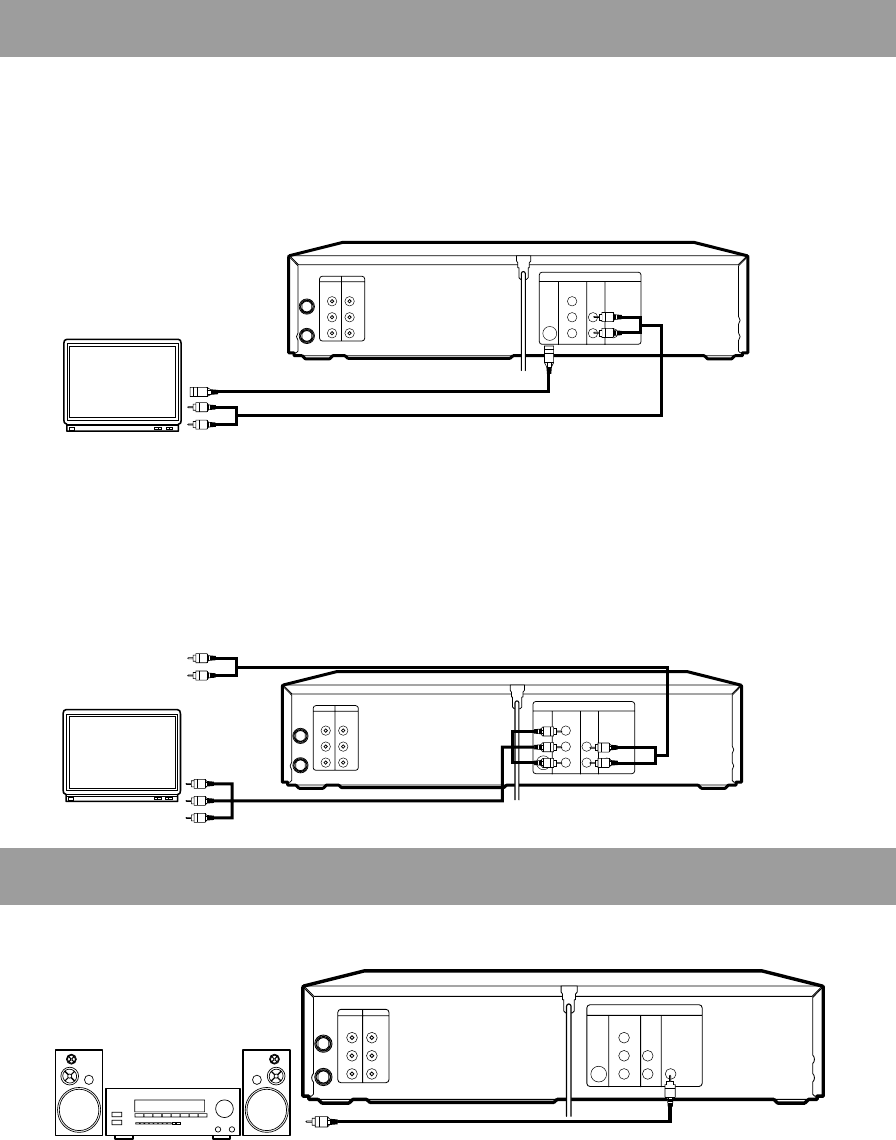

CONNECTING TO A TV THAT HAS AN S-VIDEO INPUT JACK OR
COMPONENT VIDEO IN JACKS
DVD/VCR VCR
AUDIO OUTAUDIO IN
VIDEO OUTVIDEO IN
S-VIDEO
OUT
COMPONENT
VIDEO OUT
AUDIO
OUT
DVD
Y
Cb L
Cr R
L
ANT-IN
ANT-OUT
R
L
R
DIGITAL
AUDIO OUT
COAXIAL
To S-VIDEO OUT jackTo S-VIDEO INPUT jack
To Right (red) and Left (white)
To AUDIO OUT jacksTo AUDIO INPUT jacks
A/V-compatible or
wide screen TV
[Fig. 3]
[Fig. 2]
