Discs for Superb Picture and Sound Quality,
Main Monitor Sub Monitor
RS-232C
USB
RS-232C
USB
LQ-MD800
DVD-RAM
Disc
PC
LQ-MD800
LQ-MD800
LQ-MD800
Pause Remote
Footswitch
Video
-Composite
-Y/C
-DV
Audio
-L/R
-MIC
Video
-Composite
-Y/C
-DV
Audio
-L/R
-MIC
Equipment
Management
Disc
management
Operation
Operation
Basic operations:
Record, play, stop, special playback modes
(frame-by-frame, slow, search)
Search function:
Direct search using counter value or
program number
GUI: Menu operation, etc.
Data management:
Disc title, program titles
Space availability management:
Confirmation of available recording space
Acquisition of equipment status data:
Operating mode, counter value,
maintenance information
Systems Applications
Main Monitor Sub Monitor
DVD-RAM
Disc
DVD-RAM
Disc
DVD-RAM
Disc
DVD-RAM
Disc
Progressive-scan
PDP

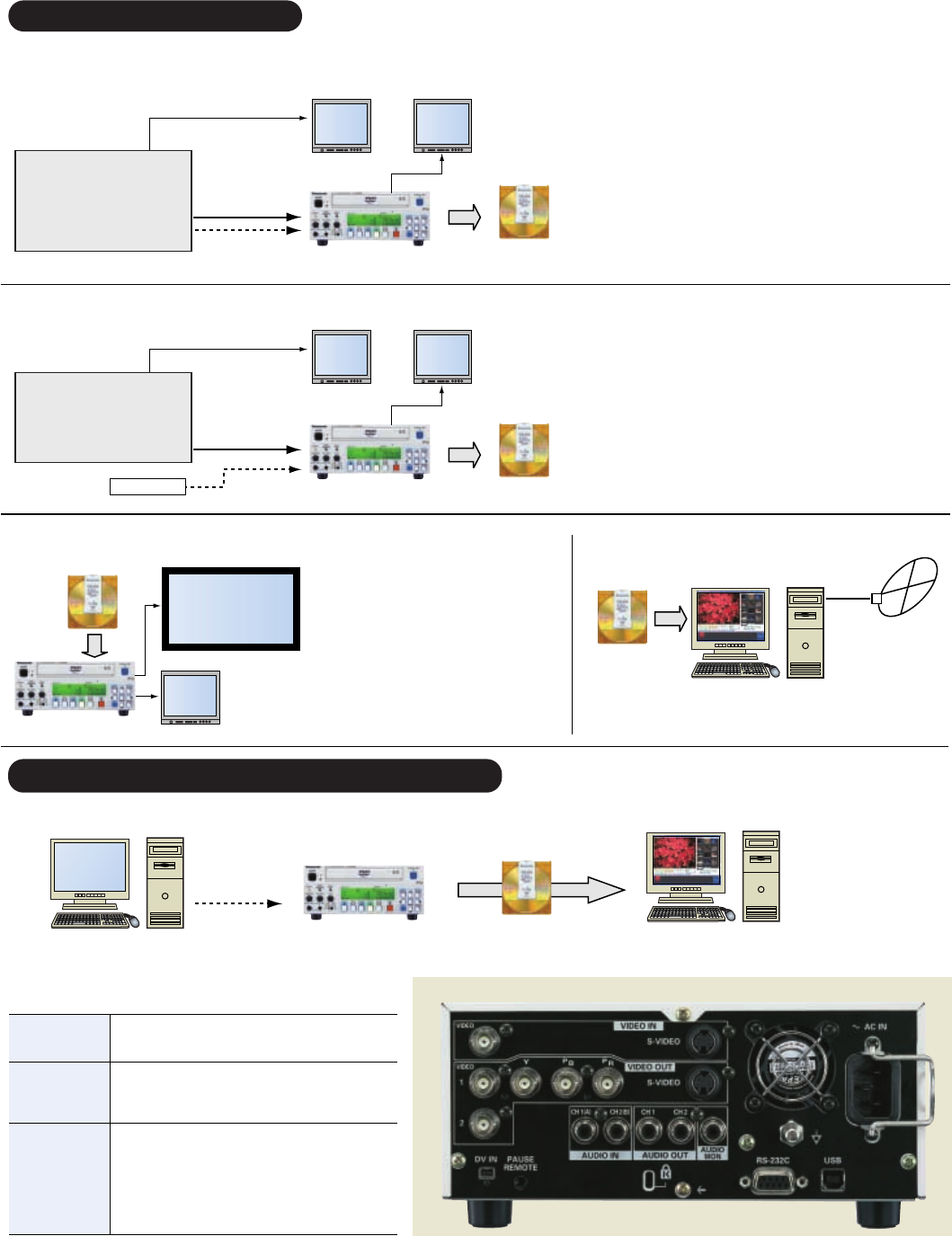

1. Image Filing System
(RS-232C/USB-controlled)
Business-use
AV equipment
Business-use
AV equipment
[1] Control of LQ-MD800 from business-use AV
equipment
AV equipment with RS-232C control function can be used to control
operations such as recording and playback, and playback modes like
slow motion and fast forward.
[2] Direct recording onto free space on the disc,
and prevention of accidental overwriting of
previous data
Unlike videotape, the use of a disc eliminates the need to search for a
blank space before you start recording. Also, you won’t lose previously
recorded data by accidentally recording over it.
[3] Recording of ID number and other information
A name and ID number can be recorded together with the title of the
images via RS-232C/USB. A list can then be displayed for easy
searching of recorded images.
[4] Audio input channels 1 and 2 for recording.
2. Image Filing System
(Pause remote)
[1] Remote record pause
Recordings can be started and paused by using a footswitch or other
device.
[2] Recording of ID number and other information
A name and ID number can be recorded together with the title of the
images via RS-232C/USB. A list can then be displayed for easy
searching of recorded images.
[3] Progressive-scan playback (NTSC only)
DVD ensures high-quality image playback.
3. Seminar Room/Viewing Station
System
[1] Image search (List search based
on recording date/time or ID)
Pressing the button displays a list of recorded
images together with their recording date/time,
thus allowing a quick and easy selection of the
images to view. By registering a name for each
image title, searching becomes even more
convenient.
[2] Progressive-scan playback
(NTSC only)
DVD ensures high-quality image playback.
[3] Playlist playback
A playlist can be produced for the programmed
playback of selected images.Repeat loops are
easily selected.
Network
4. Editing Room System
-PC with DVD-RAM drive
-DVD editing software
-DVD authoring software.
-PC with DVD-RAM drive
-DVD editing software
-DVD authoring software.
[1] Playback and editing of images using a PC
Recorded images can be edited and a backup disc can be
produced by using DVD editing/authoring software.
Editing and backup
(copying on disc)
Using a PC for Control and DVD Editing
Controlling operation with a PC (Control software must be customized.)
Using a PC for DVD editing
PC Control Example
In addition to basic VTR-like operation, the use of a disc allows the
