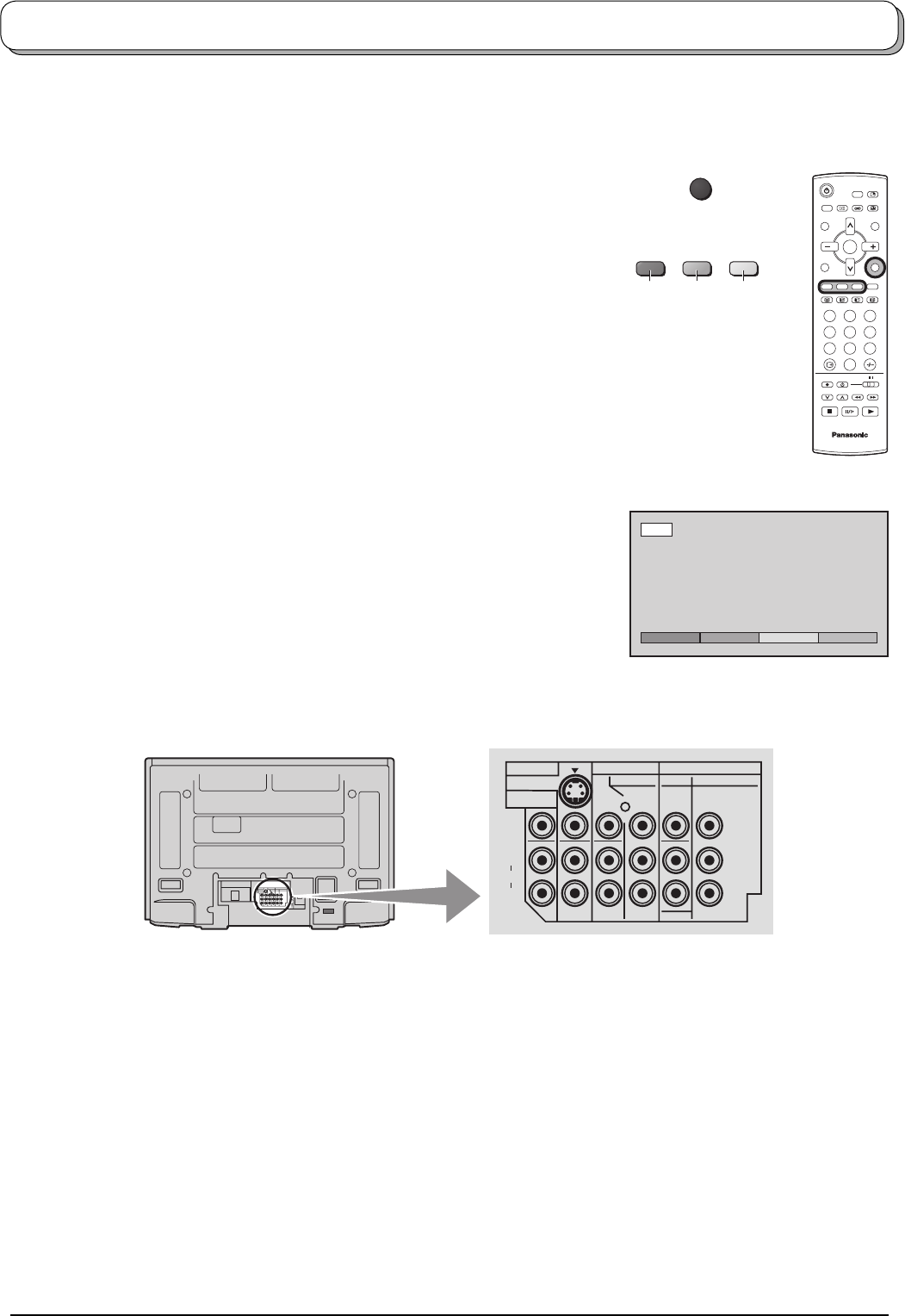

Audio / Video connections
1 2 3
4 6
7 8 9
0
TV
OK
5
It is possible to connect a variety of additional equipment to this TV. The following pages detail how to connect external
equipment to the rear of the TV.
Once your equipment is connected, use the following procedure to view the input:
Press the TV/AV button.
Whilst the on screen selector keys are displayed, press coloured
buttons to select the AV source you wish to view.
Red button : AV1 Audio, Video, S Video terminals
Green button : AV2 Audio, Video / Component terminals
Yellow button : AV3 Audio, Video / Component terminals
The on screen selector keys will disappear after a few seconds. If you
want to select an input when the keys are not shown, press any one
of the coloured buttons and the keys will reappear.
Yellow
Red
Green
TV/AV
Notes:
• You can also select an AV source using the TV/AV button on the front
panel of the TV.
Press the TV/AV button repeatedly until you reach the AV source you
wish to view.
• When a Monaural VCR is used, connect the Monaural Audio cable
to the AUDIO L terminal.
• Additional equipment and cables shown are not supplied with this
TV set.
AV1 AV2 AV3
AV1
MONITOR
OUT
AV1 IN
COMPONENT
VIDEO
COMPONENT
S VIDEO
MONO MONO MONO
VIDEO
Y
L
R
AUDIO
Y
P
B
/C
B
P
R
/C
R
P
B
/C
B
P
R
/C
R
L
R
AUDIO
AV2 IN AV3 IN
