Connecting peripheral equipment
The EXT1 socket has audio, CVBS/RGB inputs and audio, CVBS outputs.

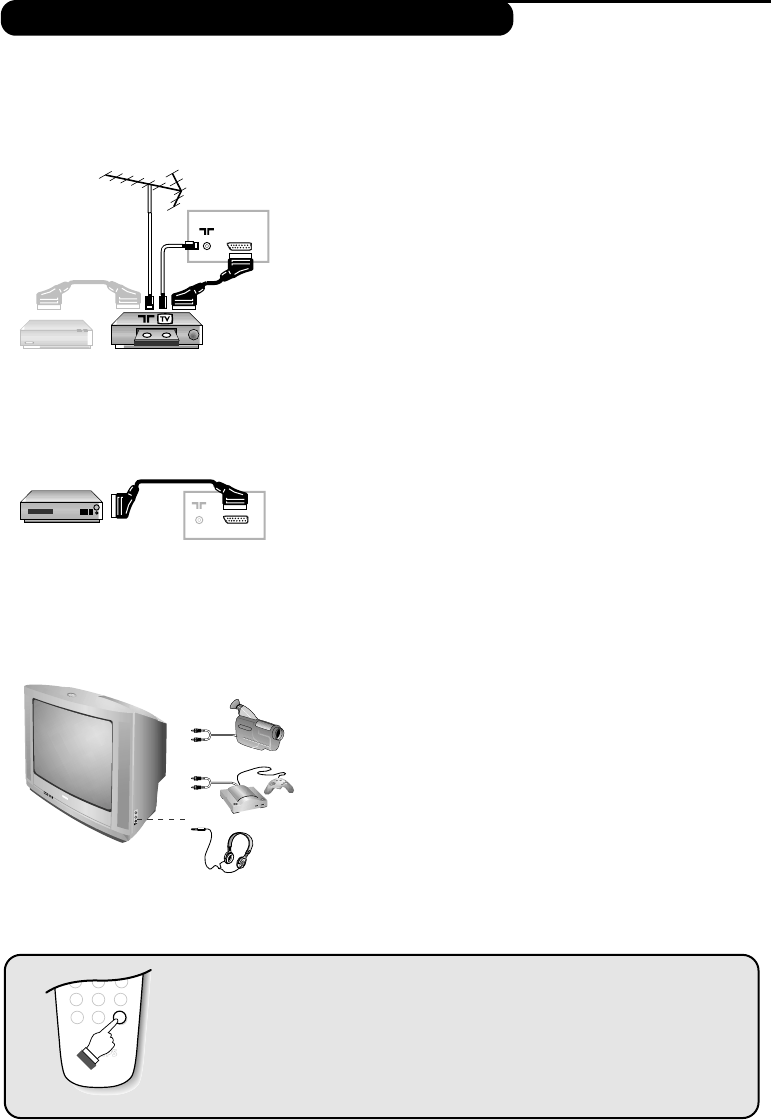

Carry out the connections shown opposite,using a good
quality euroconnector cable.
If your video recorder does not have a euroconnector socket,the
only connection possible is via the aerial cable.You will therefore
need to tune in your video recorder's test signal and assign it
programme number 0 (refer to manual store, p. 6).
To reproduce the video recorder picture,press
0.
Video recorder with decoder
Connect the decoder to the second euroconnector socket
of the video recorder.You will then be able to record
scrambled transmissions.
Video recorder
Satellite receiver, decoder,CDV,games,etc.
Make the connections as shown opposite.
Other equipment
To select connected equipment
Press the n key to select EXT1 and AV for the side connections
(if available).
Most equipment (decoder, video recorder) carries out the switching itself.
Depending on the versions,the connectors are located on
the front (sometimes under a flap) or on the right-hand
side of the TV set.Make the connections as shown
opposite.With the
n key, select AV.
Headphones
When headphones are connected,the sound on the TV set will
be cut.The
@ P # keys are used to adjust the volume level.
The headphone impedance must be between 32 and 600 Ohms.
Front panel connectors
(only available on certain versions)
EXT 1
VCR
EXT 1
