16 Runco CX-52HD/CX-57HD Owner’s Operating Manual
PRE
L
IMINAR
Y
3.4
Connections to the
Crystal Series LCD
Proceed as follows to connect the Crystal Series LCD to your video sources, external
controller(s) – if present – and AC power.
When connecting your equipment:
• Turn off all equipment before making any connections.
• Use the correct signal cables for each source.
• Ensure that the cables are securely connected. Tighten the thumbscrews on
connectors that have them.
• Use the left audio input when connecting mono audio sources.
Connecting the Crystal
Series LCD to Source
Components
Connect your video sources to the Crystal Series LCD as shown and described in the
sections that follow.
Antenna/Cable TV Connection (CX-52HD only): Connect your antenna or cable
television source to the AIR or CABLE jacks on the rear of the Crystal Series LCD; see
Figure 3-1.

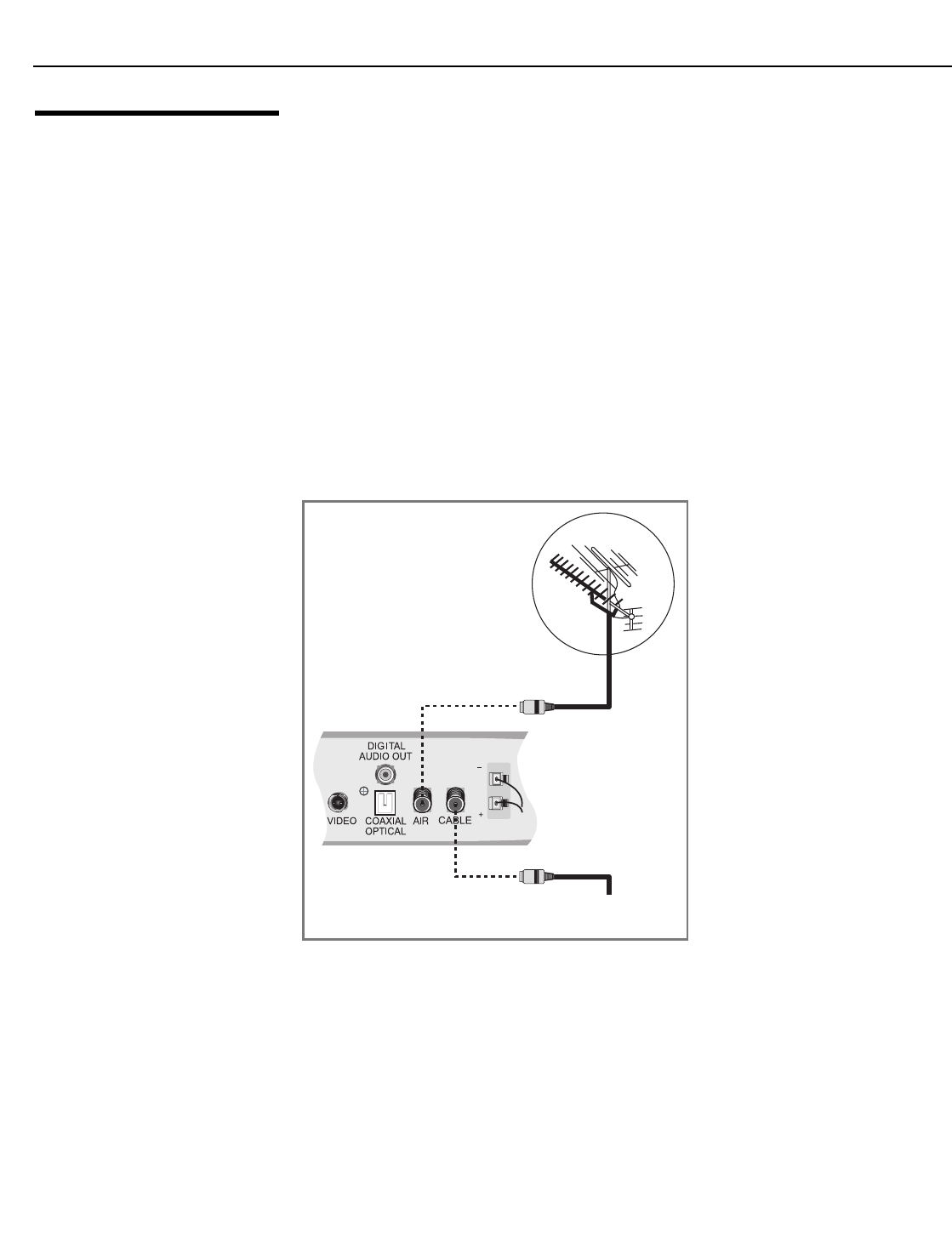

Figure 3-1. Antenna/Cable TV Connection (CX-52HD only)
➤
Cable Television
Network
Input Panel
