22 PlasmaWall XP Series Installation/Operation Manual
PRE
L
IMINAR
Y
3.4
Connections to the
PlasmaWall and DHD
Controller
Proceed as follows to connect the PlasmaWall to the DHD Controller, your video sources,
external controller(s) – if present – and AC power.
When connecting your equipment:
• Turn off all equipment before making any connections.
• Use the correct signal cables for each source.
• Ensure that the cables are securely connected. Tighten the thumbscrews on
connectors that have them.
Connecting the
PlasmaWall to the DHD
Controller
Connect the DHD Controller to the PlasmaWall as shown in Figure 3-4 and described in
the sections that follow.

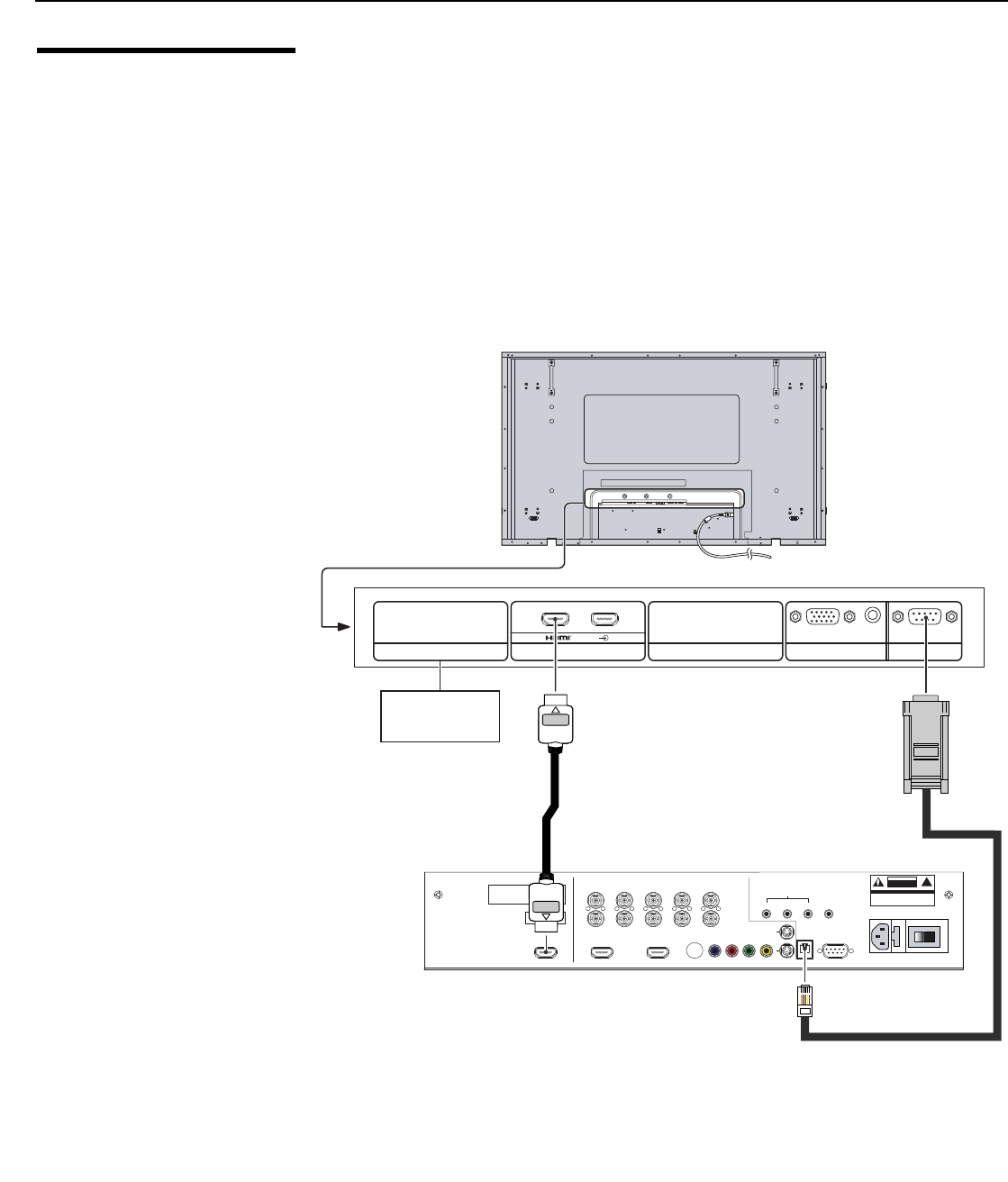

Figure 3-4. Connecting the PlasmaWall to the DHD Controller
Digital Video Connection: The PlasmaWall has a dual HDMI input board, labeled HDMI
(SLOT 2). Connect the HDMI output from the DHD Controller to input “A” on this board,
using an HDMI-to-HDMI cable.
➤
Pb Pr Y
Video
3
IR
RS-232 Control
S-Video 1
S-Video 2
HD1
HD2
1
2
R/Pr G/Y B/Pb
R/Pr G/Y B/Pb H V
HDMI 1 HDMI 2HDMI Out
HV
TRIGGERS
RS-232 Out
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER. NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE CENTER.
AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
!
WARN ING:
TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
100-230VAC 50-60 Hz, 165 Watts Max
INPUTS
SYSTEM CONTROL INTERFACE
Component Video
SDI
Option
Serial No
Video Processor / Controller
Model
Made In USA
SERIALPC IN
AUDIO
SLOT1 SLOT2
Optional Terminal
Board Insert Slot
(covered)
AV IN
AB
HDMI OUT
RS-232
OUT
PlasmaWall
Rear Panel
(XP-65DHD shown here)
