Recessed or concealed mount
You can install the screen so that the motor is recessed and the bottom is
flush with dry wall or a suspended ceiling. Refer to Figure 4.
1. Attach the supplied ceiling mount brackets to the top of the
screen unit.
2. Install the unit onto the support structure making sure that the
bottom of the case is flush with the finished ceiling.
3. Make sure the unit is level.
Suspended installation
When suspended installation is desired, use the eyebolts that are provided
with the screen.
1. Remove the screw farthest from the end plate. Install the eyebolt
at that central pivot location. Repeat on the opposite end.
2. Suspend the unit from the eye bolts on the unit using chains,
cables, or turnbuckles. Refer to Figure 5.
3. Make sure the unit is level.
Luxus A/SR-1 Electriscreen: Owner’s Manual 7

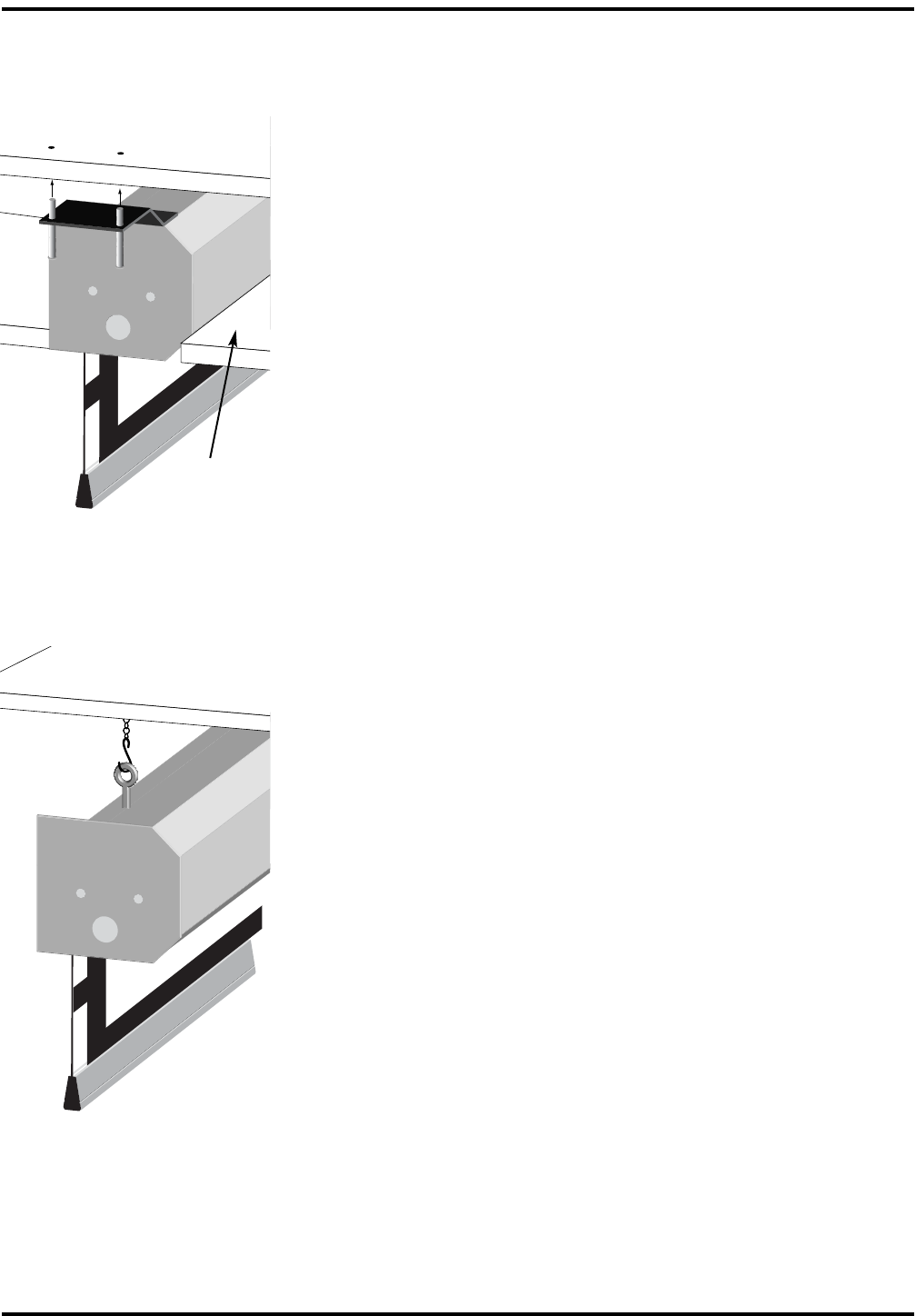

Figure 4: Recessed or
concealed mount
Figure 5: Suspended
installation
Support Structure
Drywall or
suspended
ceiling
