SVAT Electronics PI1000 DVR User Manual


  Open as PDF
of 2

SVAT ELECTRONICS
Model #:
PI1000
www.svat.com
SVAT, Spy Eye Undercover and
“now you can see” are trademarks of
SVAT Electronics.
©2007 SVAT Electronics
All Rights Reserved
1
2
3 4 5
98 10
7
6
13
14
11
12
15
SPECIFICATIONS (for more detailed specifications visit www.svat.com)
INDOOR DVR
Functionality ........................................................................Simplex
Video Compression
...........................................................MPEG-4
Resolution
.............................................................................640 x 480, 320 x 240
Recording Frame Rate
......................................................320x240: 1~30FPS, 640 x 480: 1~12FPS
Recording Resolution
.......................................................VGA (640x480)/ QVGA (320x240)
Recording Qualities
...........................................................High, Medium, Low
Recording Modes
...............................................................Manual/ Schedule/ Motion Detection
Recording Media
................................................................SD1.1/2.0 SD/SDHC Card, Max 32GB
Video Format
.......................................................................NTSC/PAL
Video Display Output........................................................1 CH RCA Composite
Live Viewing
.........................................................................Single Screen
Live Resolution
....................................................................640 x 480
Live Frame Rate
...................................................................30 FPS
Play Search Mode
...............................................................By Date, Time
Play Speed
.............................................................................Forward/Rewind: x1/x2/x4/x8/x16/x32
Play Mode
..............................................................................Single Screen
OSD & System Menu Display
..........................................Yes
OSD Language Display
.....................................................English
Time & Date Stamp Display
............................................Yes
Disk Full Warning
................................................................Full Stop / Overwrite (Selectable)
LED Indicators
......................................................................Power, Record, Play, Menu
Battery Operable
................................................................Yes, 4 x AA
Battery Life
............................................................................up to 12 hours (lithium batteries)
Power Input
..........................................................................DC 12V 180mA
Power Adapter Input
.........................................................AC 110-240V (switching mode)
INTEGRATED CAMERA
Image Sensor .......................................................................1/6" Color CMOS Sensor
Resolution
.............................................................................640 x 480
Focal Length
.........................................................................Board Lens f3.62mm / F2.8
Focus Type
............................................................................Fixed
Min. Illumination
.................................................................2 lux
Motion Detection
...............................................................Yes
Viewing Angle
.....................................................................66 Degrees
BLC
...........................................................................................Auto
AGC
..........................................................................................Auto
White Balance
......................................................................Auto
Signal/Noise Ratio
..............................................................46 dB
WHERE DO I USE THIS?
At home to watch your:
•Children •Nanny
•Pets •Entranceways
At work to watch your:
•Warehouse •Employees
•ConvenienceStores •Cash/Safe
WHAT IS INCLUDED WITH THIS SYSTEM?
UPC #
PI1000 ~ 871363006455
1 SD DVR 1 Mounting
Bracket
1 Power Adapter 1 RCA (male)
Video Wire
1 512MB SD Card
•MountingHardware
•1YearWarranty
•InstructionManual
•Online/TollFreeSupport

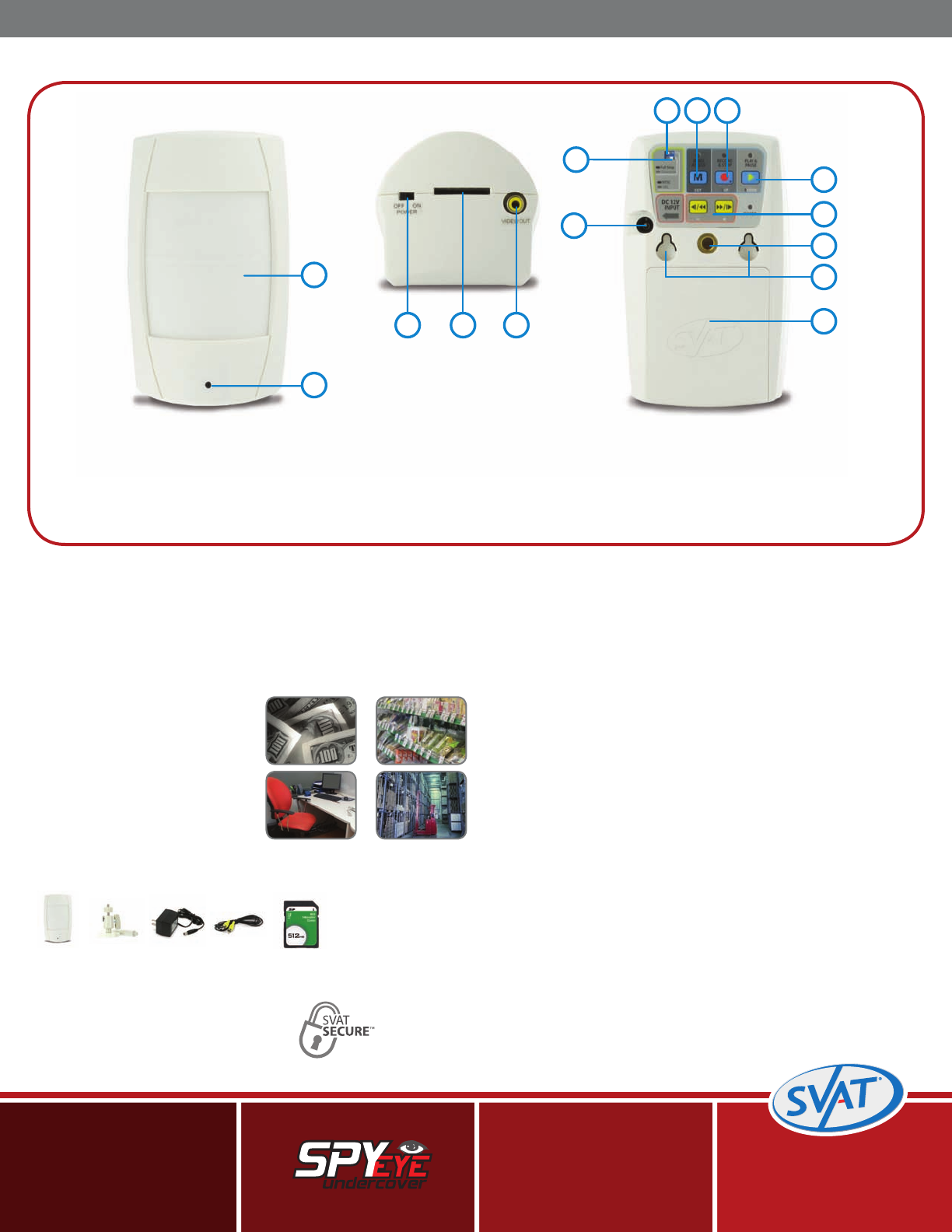

Covert DVR w/ Integrated Color Camera
1. Imitation Sensor
2. Pinhole Camera
3. Power Switch
4. SD Card Slot
5. RCA Video Output
6. 12V DC Power Input
7. Full Stop/Overwrite Selector
Select whether to overwrite the recorded
SD card or to stop recording when the
SD card is full.
8. NTSC/PAL Selector
9. Menu Button
10. Record & Stop Button
11. Play & Pause Button
12. Reverse & Forward Buttons
13. Mounting Hole
14. Wall Mount Holes
15. Battery Compartment
DESCRIPTION
The PI1000 is a complete video recording system that is both compact and discreet.
The built-in camera catches all the action and the video is recorded onto the included
SD card. The best part is, this device looks like an ordinary motion sensor, allowing
you to monitor any location discreetly. Simply mount it on the wall at your home or
business and the PI1000 will capture high quality digital video. When you want to view
your footage, just remove the SD card and watch it on your computer.
DIMENSIONS
Camera: 5" x 2.88" x 2.31" ~ 0.66lbs
SVAT Electronics
Toll Free: 1.866.946.7828
now you can see
