TASCAM 7733 Telegraph Road Montebello, CA 90640 (323) 726-0303 http://www.tascamcontractor.com
All features and specifications are subject to change without notice. Contact your local TASCAM representative for the latest information.

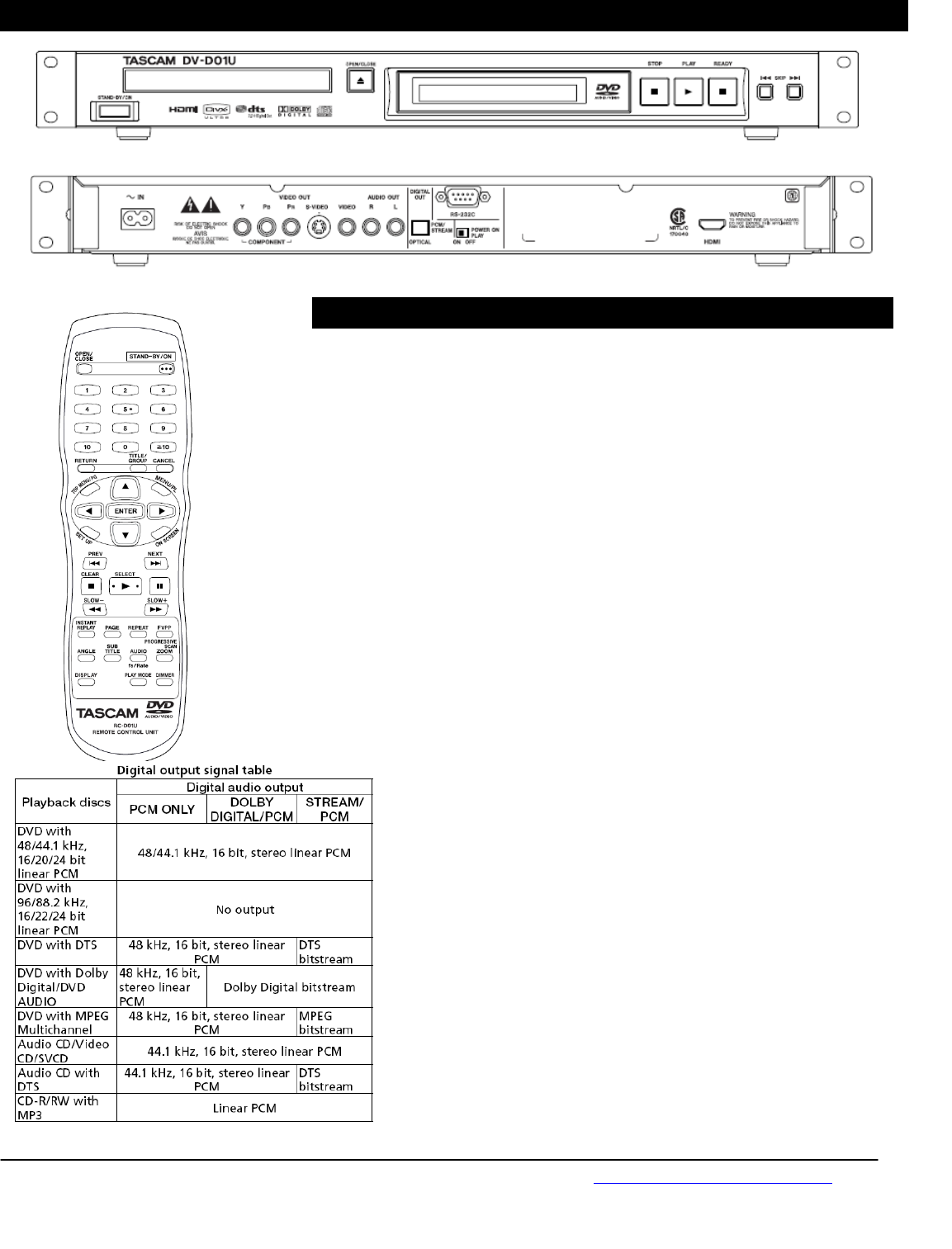

SPECIFICATIONS
P
ANELS
General
Power Requirements: U.S.A./Canada 120 VAC, 60 Hz
U.K./Europe 230 VAC, 50 Hz
Australia 240 VAC, 50 Hz
Power Consumption: 11 W (at operation)
0.2 W (in standby mode)
Dimensions (W x H x D): 482 mm x 51 mm x 269 mm
(19 inches x 2 inches x 10.6
inches)
Mass: 2.3 kg (5.1 lbs)
Audio section
Analog output:
AUDIO OUT: –8 dB/1 kØ
Digital output*1:
DIGITAL OUT (OPTICAL): –21 dBm to –15 dBm
(660 nm ±30 nm)
*1 Corresponding to Linear PCM, Dolby Digital, and DTS Digital
Surround (with sampling frequency — 32 kHz, 44.1 kHz, 48 kHz)
Video section
Video System: NTSC
Horizontal Resolution: 500 lines
Signal-to-Noise Ratio: 64 dB
Video output level
Composite: 1.0 V(p-p)/75 Ø
S-video-Y: 1.0 V(p-p)/75 Ø
S-video-C: 0.286 V(p-p)/75 Ø
Component-Y: 1.0 V(p-p)/75 Ø
Component-P
B/PR: 0.7 V(p-p)/75 Ø
HDMI
HDMI Output (Ver. 1.1): HDMI
RS-232C
Serial command: 9-Pin D-SUB
Designs & specifications are subject to change without notice.
HDMI, the HDMI logo and High-Definition Multimedia
Interface are trademarks or registered trademarks of HDMI
Licensing LLC.
HDCP is the abbreviation of “High-Bandwidth Digital Content
Protection,” and is the high-reliable copy control technology
licensed by Digital Content Protection, LLC.
TASCAM DV-D01U
