Toshiba RD-XS54SU DVD Recorder User Manual



14
Index to parts and controls (Continued)
Introduction

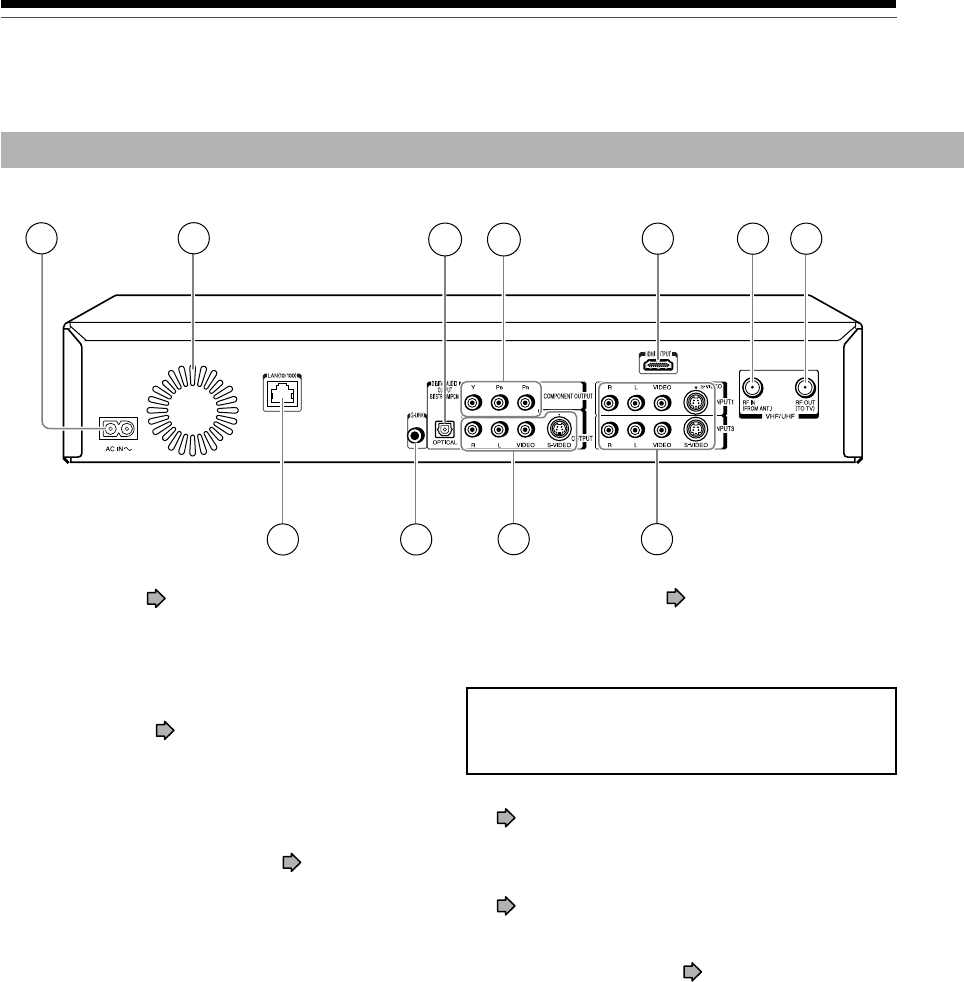

Rear panel
1
4
3
2
6 75
9
11 10
8
t HDMI OUTPUT jack page 26 in
INSTALLATION GUIDE
Use this to connect the recorder to a HDMI
compatible TV or monitor.
HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC.
y VHF/UHF RF IN (FROM ANT.) input socket
page 20 in INSTALLATION GUIDE
Connects to an antenna or cable signal.
u VHF/UHF RF OUT (TO TV) output socket
page 20 in INSTALLATION GUIDE
Connects the supplied coaxial cable to a TV.
i INPUT1/INPUT3 jacks
page 49
Use this to connect the recorder to output jacks of
external devices such as another player or
camcorder.
q AC IN socket
page 21 in INSTALLATION
GUIDE
w Ventilation fan
e DIGITAL AUDIO OUT BITSTREAM/PCM
OPTICAL jack
page 29 in INSTALLATION
GUIDE
Use this to connect the recorder to an audio
receiver equipped with an optical digital audio
input jack.
r COMPONENT OUTPUT jacks
page 28 in
INSTALLATION GUIDE
Outputs video signals to a connected TV or
monitor.
Connects to a TV or monitor equipped with
component video jacks.
