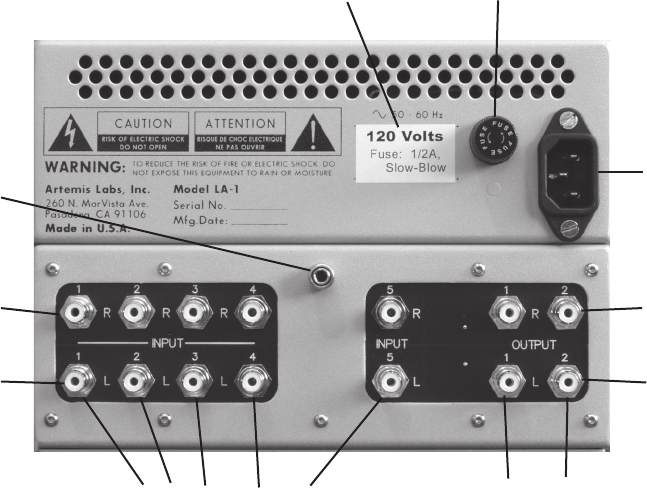

REAR PANEL
Ground
Terminal
Voltage Rating
IEC Power
Connector
Fuse
Right Outputs
Left Outputs
Inputs 1 through 5
Outputs 1 and 2
Right Inputs
Left Inputs
Make sure that the Voltage Rating of your LA-1 matches the power mains voltage at your loca-
tion. The voltage can be changed by internal rewiring, which can be done by Artemis Labs or
by a qualified technician. The Fuse is a 1" x 1¼" “3AG” Slow-blow type. Its value is given on
the Voltage Rating sticker.
A power cord is supplied with each unit. If the mains plug does not match your socket, con
-
tact your dealer to exchange it for the correct type. The power cord plugs into the IEC Power
Connector. If the power cord is frayed or damaged, replace it with a new one. Use only power
cords that meet the safety standards of your location.
The Ground Terminal is used to connect the chassis of the LA-1 to other equipment in your
system to help minimize hum and noise. Experiment with different connections for the best
results.
Signals are brought into the LA-1 through Inputs 1 through 5. The Right Inputs are on the
top and the Left Inputs are on the bottom. The input number corresponds to the number on
the Input Selector on the front panel.
There are two pairs of outputs: Outputs 1 and 2. These are essentially in parallel, separated by
low-value resistors. This allows the preamp outputs to drive another device in addition to the
power amplifier, such as a digital processor, subwoofer, etc. The Right Outputs are on top and
the Left Outputs are on the bottom.
