332 | Jumpers and Connectors
2.5" Hard-Drive Expander Backplane

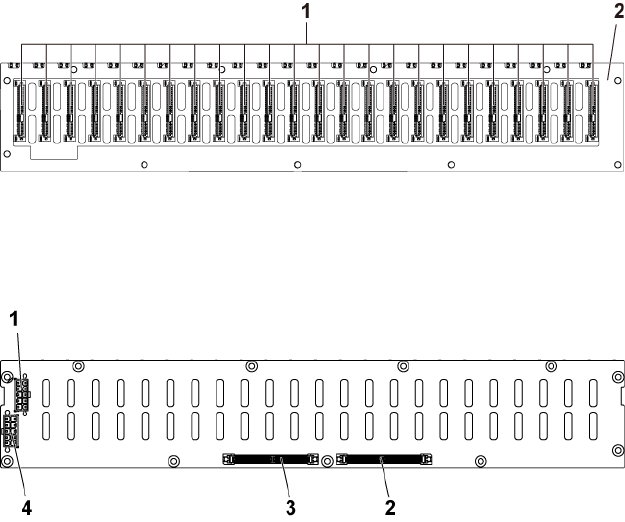

Figure 5-7. Front View of the Backplane
1
hard drive connectors 1 to 24 (from
left to right)
2
2.5” backplane for expander
configuration
Figure 5-8. Back View of the Backplane
1
backplane power connector for
power supply 1
2
expander-card connector 1
3
expander-card connector 2
4
backplane power connector for
power supply 2
