ELECTRICAL CHARACTERISTICS CURVES

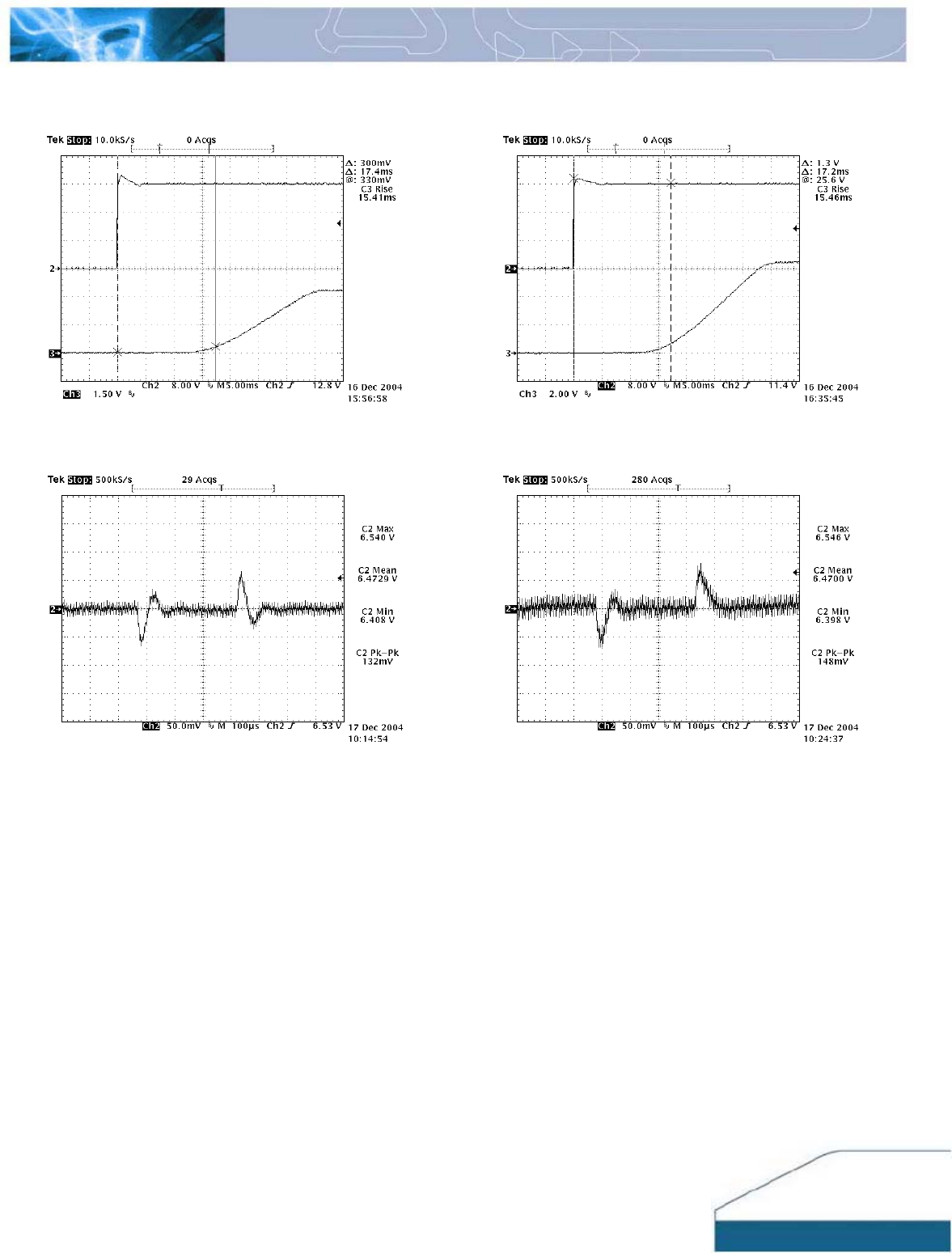

Figure 19: Turn on delay at 24vin, 3.3V/3A out with
application of Vin
Figure 20: Turn on delay at 24vin, 6.5V/3A out with
application of Vin
Figure 21: Typical transient response to step load change at
0.5A/µS from 100% to 50% of Io, max at 12Vin,
6.5V out (measurement with a 1uF ceramic
Figure 22: Typical transient response to step load change at
0.5A/µS from 50% to 100% of Io, max at 24Vin,
6.5V out (measurement with a 1uF ceramic)
