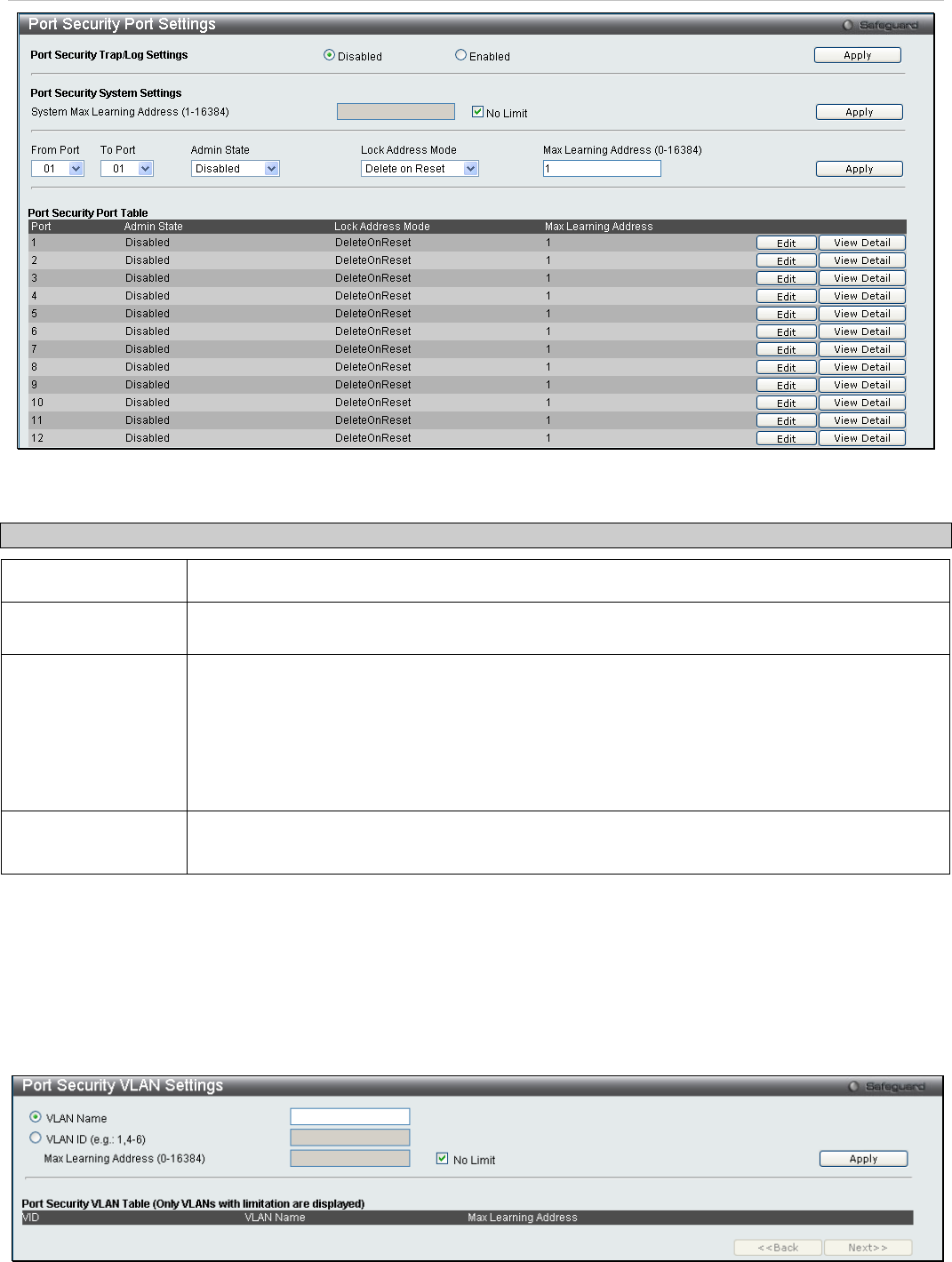

Figure 5 - 9 Port Security Port Settings window
The following parameters can be set:
Parameter Description
From Port / To Port
A consecutive group of ports may be configured starting with the selected port.
Admin State
This pull-down menu allows you to enable or disable Port Security (locked MAC address table
for the selected ports).
Lock Address
Mode
This pull-down menu allows you to select how the MAC address table locking will be
implemented on the Switch, for the selected group of ports. The options are:
Permanent – The locked addresses will not age out after the aging timer expires.
DeleteOnTimeout – The locked addresses will age out after the aging timer expires.
DeleteOnReset – The locked addresses will not age out until the Switch has been reset.
Max. Learning
Address (0-16384)
The number of MAC addresses that will be in the MAC address-forwarding table for the
selected switch and group of ports.
Click Apply to implement changes made.
Port Security VLAN Settings
This table is used to set the maximum port-security entries that can be learned on a specific VLAN.
To view this window, click Security > Port Security > Port Security FDB Entries as shown below:
Figure 5 - 10 Port Security VLAN Settings window
The following parameters can be set:
