Procedure For Checking Fluid Level
To properly check the automatic transaxle fluid level, the
following procedure must be used:
•
The vehicle must be on level ground.
•
The engine should be running at curb idle speed for a
minimum of 60 seconds.
•
Fully apply parking brake.
•
Place the gear selector momentarily in each gear
position ending with the lever in P (PARK).
•
Wipe the dipstick clean and reinsert until seated.
Remove dipstick and note reading.
•
If the fluid is hot (180° F / 82° C) , the reading should
be in the cross hatched area marked ”HOT” (between
the upper two holes in the dipstick).
•
If the fluid is cold (80° F / 27° C) , the reading should
be in the cross hatched area marked “COLD” (between
the lower two holes in the dipstick).
•
If the fluid level shows low, add sufficient transmis-
sion fluid to bring to the proper level.

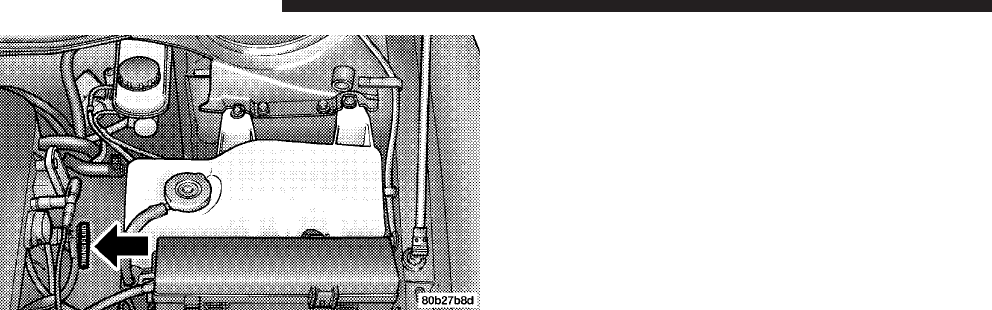

3.5L Transmission Dipstick
