Changing the Fuses
The JMP 9600 is equipped with field replaceable fuses to protect against overcurrent
damage. If one of the two power circuits fails, replace the fuses as follows:
WARNING: Physically disconnect both power cables from the player before removing
the fuse module.
CAUTION: This unit employs double pole/neutral fusing.
1. Unplug both power cords.
2. With a Tweeker or other small screwdriver, gently pry the cover away from the AC
Power Input switch for the power circuit that has failed (see
a
on figure 81).
NOTE: The cover does not separate from the power block but hangs in place.
INPUT: 100-240VAC, 0.4-1A, 50/60HZ
USE ONLY: F2 AH 240V FUSES.
INPUT: 100-240VAC, 0.4-1A, 50/60HZ
USE ONLY: F2 AH 240V FUSES.
INPUT: 100-240VAC, 0.4-1A, 50/60HZ
USE ONLY: F2 AH 240V FUSES.
INPUT: 100-240VAC, 0.4-1A, 50/60HZ
USE ONLY: F2 AH 240V FUSES.
1 2a
2b
3

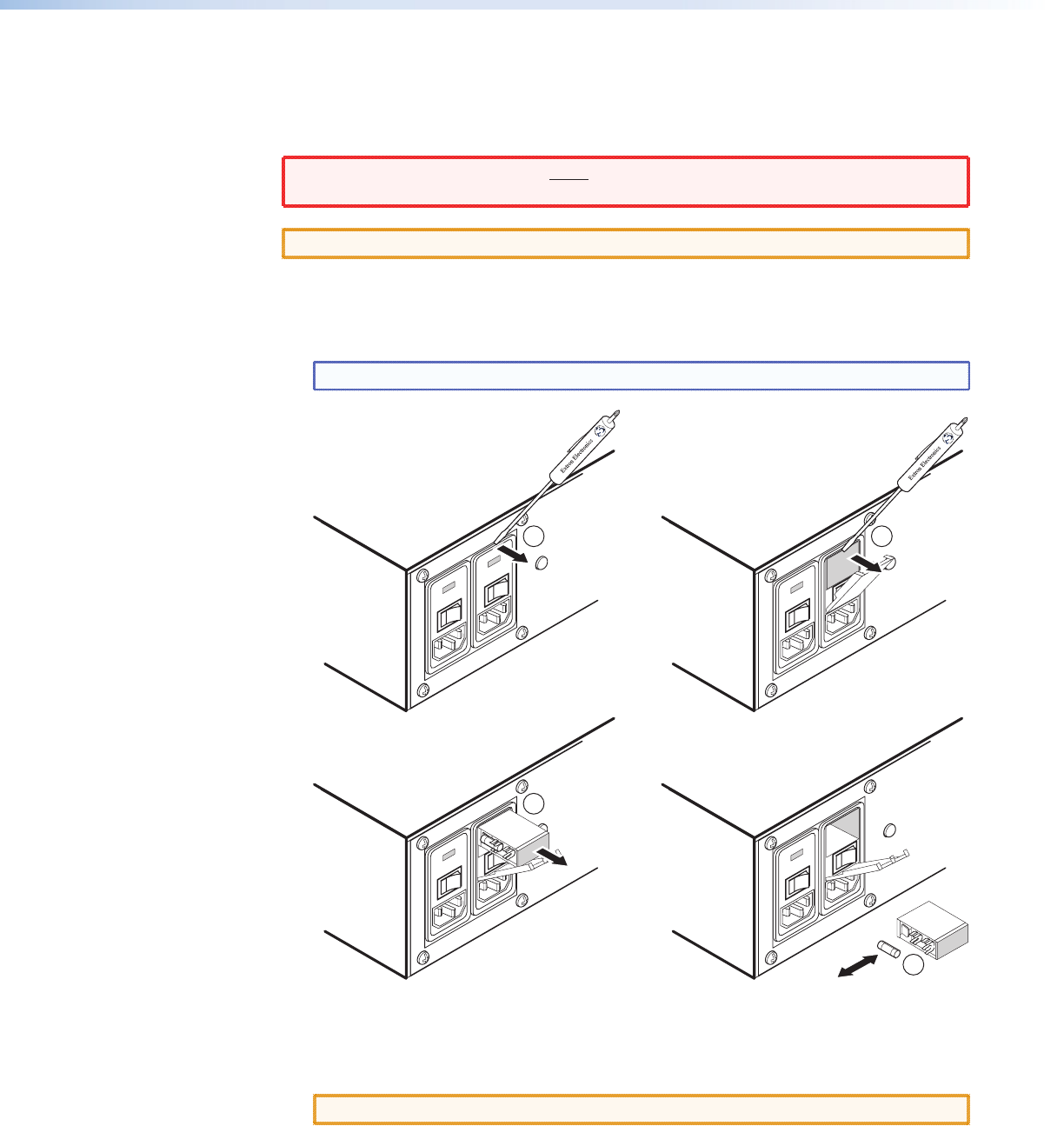

Figure 81. Replacing Fuses
3. Gently pry the fuse module from the power block (
Ç
) and pull it from the enclosure (
É
).
4. Remove and replace both fuses on the fuse module.
CAUTION: Replace the fuses with F2 AH 240V fuses only.
5. Slide the fuse module into the power block and snap it into position (
c
).
6. Snap the cover back into place on the power block.
7. Restore power.
