1-3TPS150 Switching and Transmission System • Introduction
The audio for the selected input is output locally. It is not sent to the receiver.
The TPT150 has an RS-232 port that accepts ICS100 program control from a
connected computer or serial command control from a computer or control system.
The transmitter can also store serial commands that are entered by the operator.
The transmitter sends the appropriate serial commands on the TP link to the
receiver whenever an input button or the projector power button is pressed.
An optional CTP150CM control panel can be connected to a contact closure port on
the TPT150. Using the CTP150CM, a remote operator can select inputs, power up
and down a projector connected to the receiver, and increase and decrease the
output volume.
+
-
+
R
L
-
GND
PROJ PWR
VOL DN
VOL UP
IN4
IN3
IN2
IN1
LOCAL MONITOR
OUTPUT
AUD
IO
L
R
RGB /
VGA
RGB / VGA
INPUT 2
INPUT 1
INPUT 3
R-Y
B-Y
Y
VIDEO
AUDIO
S-VIDEO
AUD
IO
L
R
L
R
INPUT 4
OUTPUT
REMOTE
CONTROL
RS-232 PORT
AUD
IO
R-Y
B-Y
Y
VIDEO
AUD
IO
S-VIDEO
L
R
UPT LINK
FUSE: 1.6A; 250V; TIME DELAY
TECHNICAL SUPPORT
:
(800) 882-7117
(714) 450-1800
www.inlineinc.com
!
FUSE: 1.6A;
250V;
TI
ME DELAY
90-260VAC; 0.25A; 47-63Hz
UTP LINK
SKEW
RGB / VGA
COMPOSITE
VIDEO OUTPUT
S-VIDEO
COMPONENT
RS-232 PORT
R-Y
B-Y
Y
RED
BLUE
GRN
ADJ
TECHNICAL SUPPORT:
(800) 882-7117
(714) 450-1800
www.Extroninc.com
MADE IN U.S.A.
TP
Cable
Control
System
Sound
System
DVD
Componen
Video
VCR
Composite
Video
Laptop
PC
Input 4
Input 3
Input 2
Input 1
Extron
CTP150CM
Control
Panel
Extron
TPT150
AV Switcher
PR150
wisted Pair
eceiver
INPUT 1
INPUT 2
INPUT 3
INPUT 4
VOLUME
VOLUME
PROJECT
OR
POWER

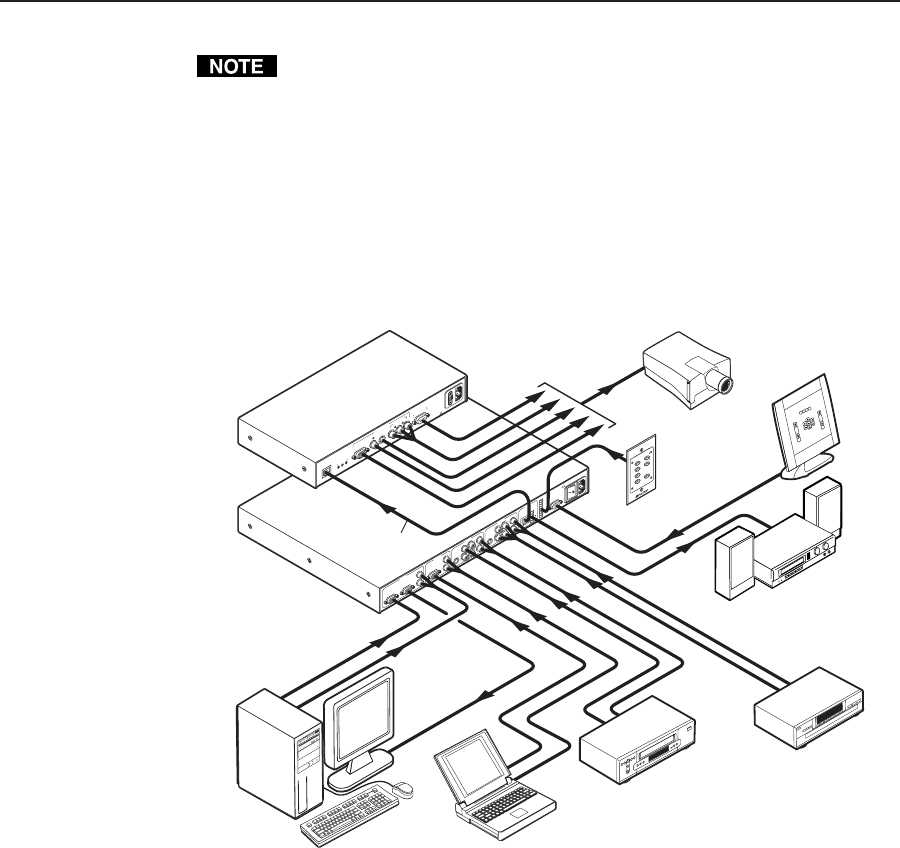

Figure 1-1 — Typical TPS150 Switching and Transmission System
application
About the TPR150 receiver
The TPR150 receiver accepts the TP link from the transmitter and outputs the
received video and RS-232 commands. The receiver outputs the following signals
on the following connectors:
• High-resolution RGB video on one female 15-pin HD connector
• Component video (Y, R-Y, B-Y) on three female RCA connectors
• S-video on one female 4-pin mini DIN connector
• Composite video on one female RCA connector
• Serial (RS-232) commands on one male DB9 connector
