- 20 -
5) INSTALL HANDRAILS:

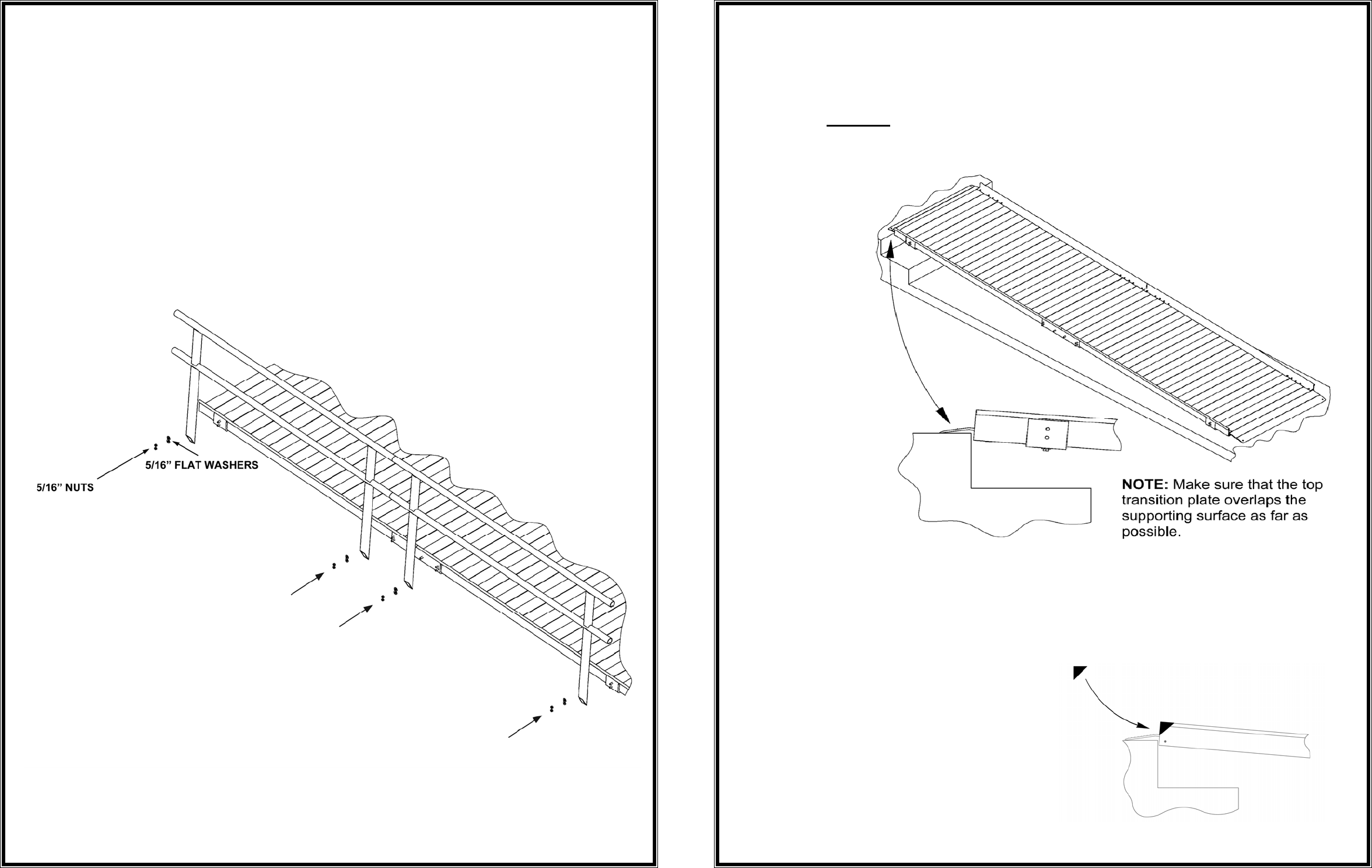

A) Install pre-assembled handrail section to side of ramp run (FIG. 22).
i) The vertical posts of the handrails each have two holes that correspond
with studs on the saddle brackets that were installed earlier.
ii) Attach handrails to these studs using two each 5/16” flat washers and two
each 5/16” hex nuts per handrail post.
NOTE: If the studs do not align with the posts and are off by 6”, the Ramp
Handrail End Bracket was installed into the wrong threaded insert on the
ramp. (See FIG. 15a for location of the correct insert).
FIG. 25
- 13 -
a) Maneuver the ramp to its desired position (FIG. 17).
IMPORTANT: Make sure the top transition plate overlaps the supporting surface
as far as possible.
CAUTION: DO NOT use the ramp until all support tubes and ramp brace
assemblies (if needed) are installed and secured!
FIG. 17
xiii) So that no sharp edges are exposed, install protective caps over side rail
corners as shown in FIG. 18. Place one cap on each side at both the top
and bottom of ramp.
NOTE: If necessary, use silicone adhesive to bond cap to ramp.
FIG. 18
